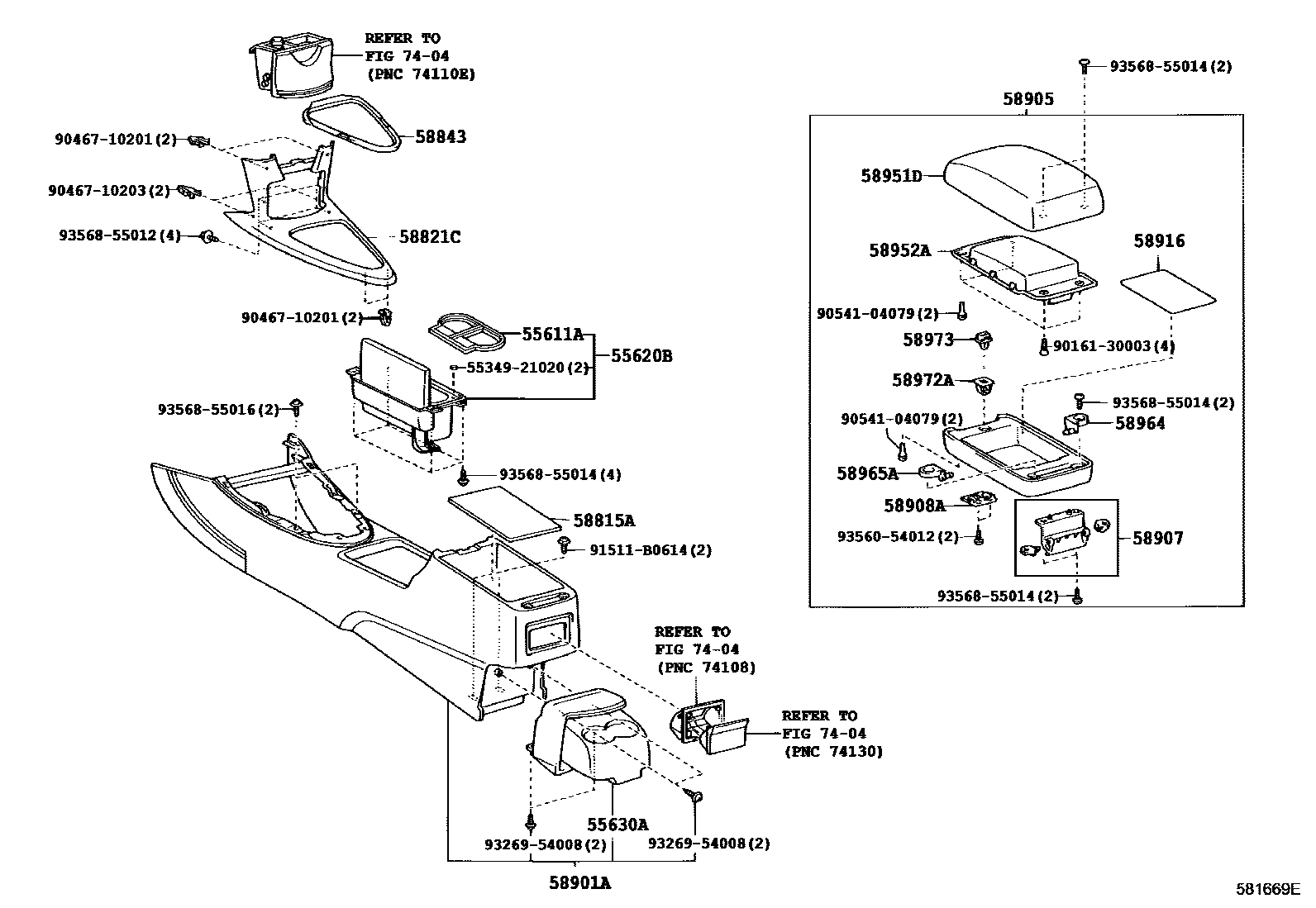

CONSOLE BOX & BRACKET

55611ATRAY, INSTRUMENT PANEL UNDER

main55617-20010iAZT24#,ST246,ZZT241200209-200501

55620BHOLDER, INSTRUMENT PANEL CUP

main55620-21010-B0iAZT24#,ST246,ZZT241200501-200607

DK.GRAY,TRIM1#

main55620-21010-C0iAZT24#,ST246,ZZT241200209-200501

BLACK,TRIM2#

main55620-21011-B0iAZT24#,ST246,ZZT241200608-200706

DK.GRAY,TRIM1#

55630AHOLDER, REAR CONSOLE BOX, CUP

main55630-21010-B0iAZT24#,ST246,ZZT241200501-200706

DK.GRAY,TRIM1#

sub55630-20010

main55630-21010-C0iAZT24#,ST246,ZZT241200209-200501

BLACK,TRIM2#

sub55630-20010

58815ACARPET, CONSOLE BOX

main58815-20090iAZT24#,ST246,ZZT241200209-200501

58821CPANEL, CONSOLE, UPPER

main58821-21010iAZT24#,ZZT241..X,Z200209-200501

main58821-21020iAZT24#,ST246..GT4,ZT200209-200311

main58821-21050iAZT24#,ST246..GT4,ZT200311-200501

main58821-21030iAZT24#,ZZT241..Z200306

58843BEZEL, SHIFTING HOLE

main58843-21020iAZT24#,ST246,ZZT241200209-200501

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-21070-B0iAZT24#,ST246,ZZT241200501-200706

DK.GRAY,TRIM1#

main58901-21070-C0iAZT24#,ST246,ZZT241200209-200501

BLACK,TRIM2#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-21040-B3supersedes 58905-21040-B2iAZT24#,ZZT241..X,Z200501-200706

sub58905-21041

main58905-21040-C1iAZT24#,ZZT241..X,Z200209-200501

BLACK,TRIM29

sub58905-21041

main58905-21040-C2supersedes 58905-21040-C1iST246200209-200501

sub58905-21041

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-12050iAZT24#,ST246,ZZT241200501-200706

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iAZT24#,ST246,ZZT241200501-200706

58916MAT, BOX BOTTOM

main58916-12080iAZT24#,ST246,ZZT241200209-200501

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-21020-B1supersedes 58951-21020-B0iAZT24#,ZZT241..X,Z200501-200706

main58951-21020-C1iAZT24#,ZZT241..X,Z200209-200501

BLACK,TRIM29

main58951-21020-C2supersedes 58951-21020-C1iAZT24#,ZZT241..X,Z200209-200501

58952ADOOR, CONSOLE COMPARTMENT, INNER

main58952-12060-B6iAZT24#,ST246,ZZT241200501-200706

DK.GRAY,TRIM1#

main58952-12060-C1iAZT24#,ZZT241..X,Z200209-200501

BLACK,TRIM29

main58952-12060-C2supersedes 58952-12060-C1iAZT24#,ZZT241..X,Z200209-200501

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20040iAZT24#,ST246,ZZT241200209-200501

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-20050iAZT24#,ST246,ZZT241200501-200706

58972ABASE, CONSOLE COMPARTMENT DOOR LOCK

main58972-34010iAZT24#,ST246,ZZT241200501-200706

58973PIN, CONSOLE COMPARTMENT DOOR LOCK

main58973-34010iAZT24#,ST246,ZZT241200209-200501

7404

5534921020GARNISH, INSTRUMENT PANEL SIDE, LH

main55349-21020

9016130003

main90161-30003

9046710201

main90467-10201

9046710203

main90467-10203

9054104079

main90541-04079

91511B0614

main91511-B0614

9326954008

main93269-54008

9356054012

main93560-54012

9356855012

main93568-55012

9356855014

main93568-55014

9356855016

main93568-55016

29 parts on this diagram · 1 diagram in section
