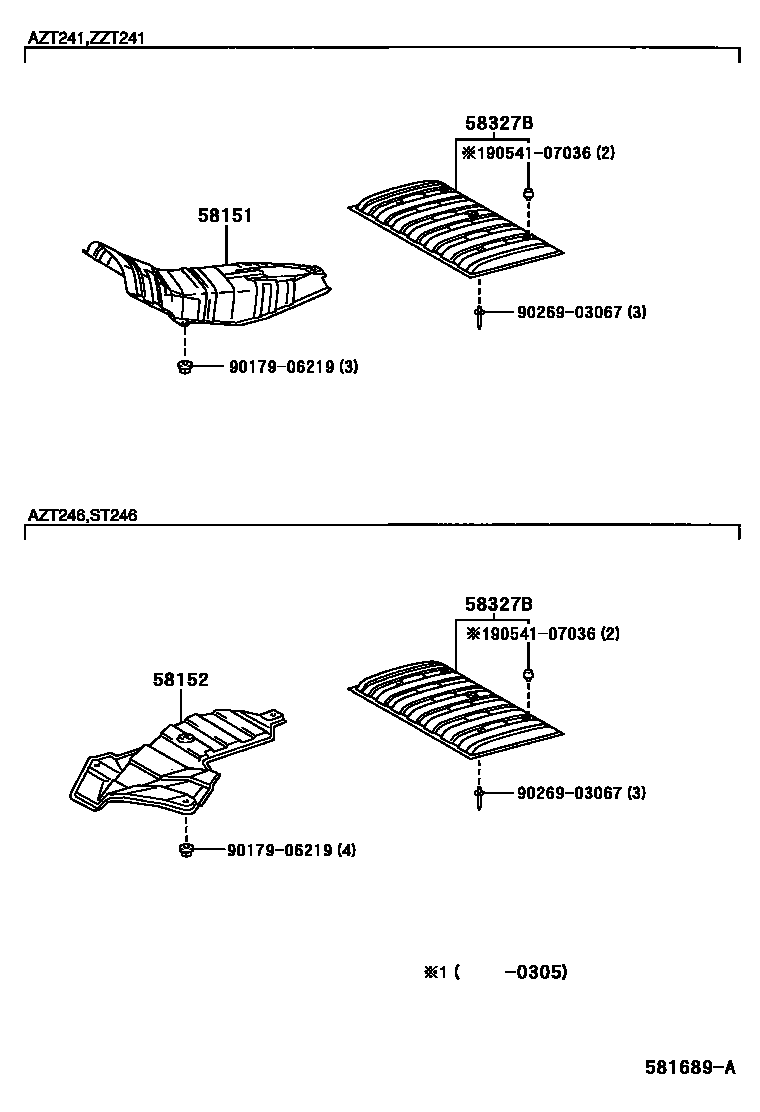

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-12180iAZT241,ZZT241200209-200211

sub58151-12210

main58151-12210iAZT241,ZZT241200301-200311

main58151-12220iAZT241,ZZT241200311-200501

58152INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2

main58152-32060iAZT246,ST246200209-200501

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-21040iAZT24#,ST246,ZZT241200209-200501

9017906219

main90179-06219

9026903067

main90269-03067

9054107036

main90541-07036

6 parts on this diagram · 1 diagram in section
