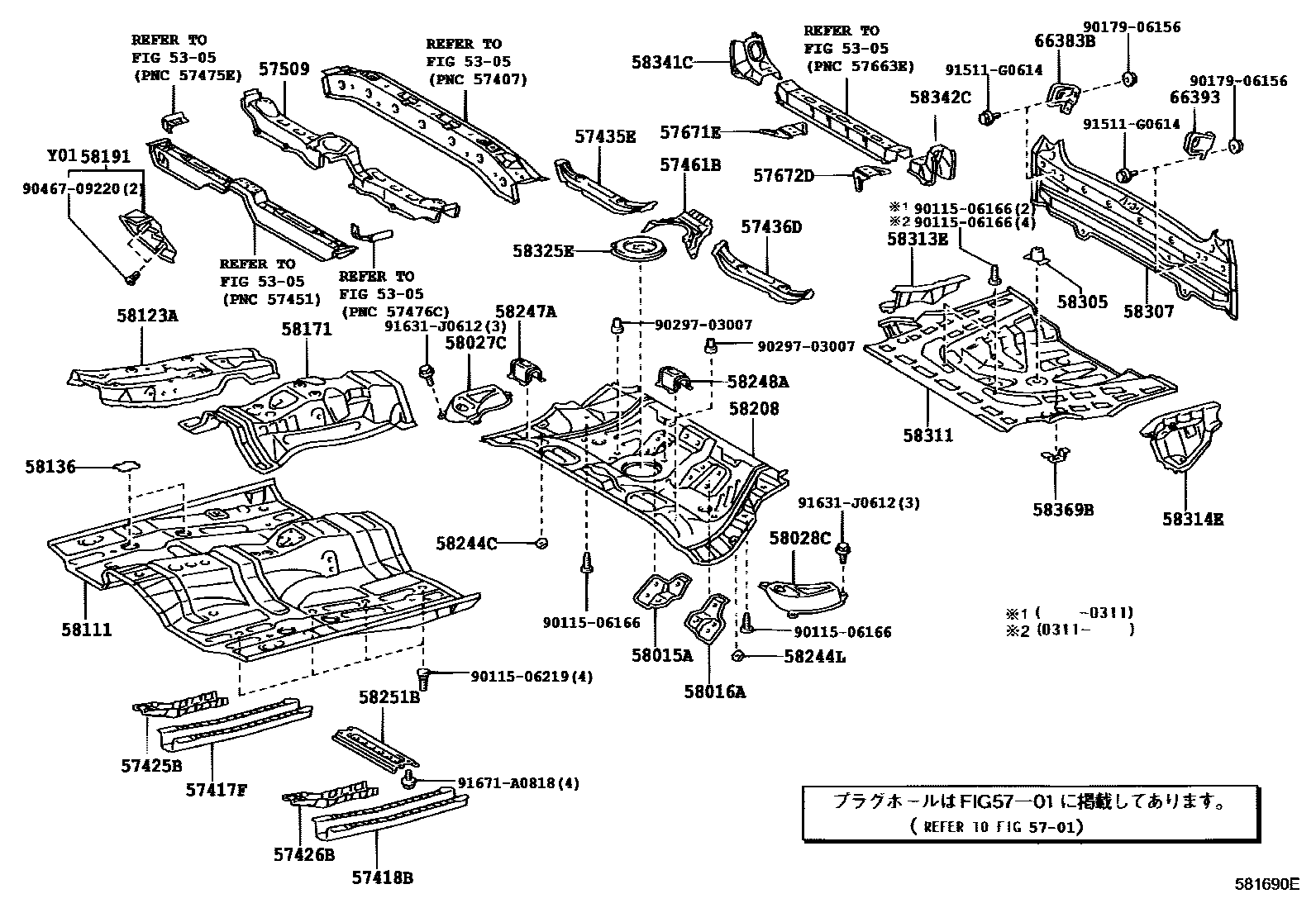

FLOOR PAN & LOWER BACK PANEL
5305
5701
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH
57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH
57435EMEMBER, CENTER FLOOR SIDE, RH
57436DMEMBER, CENTER FLOOR SIDE, LH
57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57671EBRACKET, REAR SEATBACK HINGE MOUNTING, RH
57672DBRACKET, REAR SEATBACK HINGE MOUNTING, LH
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58027CPANEL SUB-ASSY, CENTER FLOOR SIDE, RH
58028CPANEL SUB-ASSY, CENTER FLOOR SIDE, LH
58111PAN, FRONT FLOOR
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58208PAN, CENTER FLOOR
58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH
58244LBRACKET, REAR SEAT CUSHION MOUNTING, RH
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58251BBRACE, FLOOR PANEL, FRONT
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58313EEXTENSION, REAR FLOOR SIDE PANEL, RH
58314EEXTENSION, REAR FLOOR SIDE PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58369BBRACKET, FUEL TUBE, NO.3
66383BBRACKET, ROPE HOOK, NO.1 RH
66393BRACKET, ROPE HOOK, NO.1 LH
9011506166
main90115-06166
9011506219
main90115-06219
9017906156
main90179-06156
9029703007
main90297-03007
9046709220
main90467-09220
91511G0614
main91511-G0614
91631J0612
main91631-J0612
91671A0818
main91671-A0818
46 parts on this diagram · 2 diagrams in section
