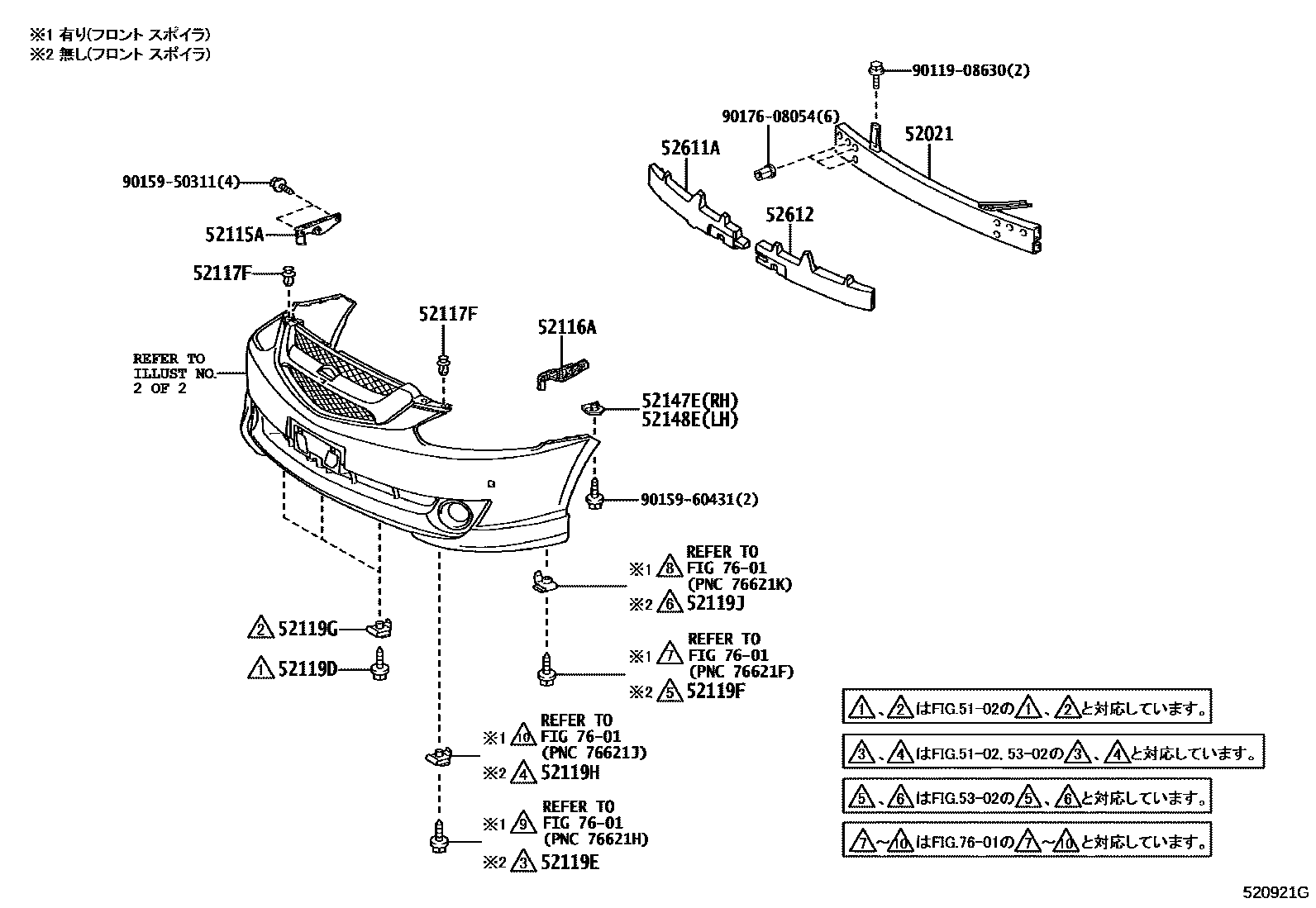

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-20270iAZT24#,ST246,ZZT241200209-200706

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-21010iAZT24#,ST246,ZZT241200209-200706

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-21010iAZT24#,ST246,ZZT241200209-200501

52117FSUPPORT, FRONT BUMPER, UPPER

main52117-21020iAZT24#,ST246,ZZT241200209-200501

52119DSCREW, NO.1

main90159-60215iAZT24#,ST246,ZZT241200209-200706

52119ESCREW, NO.2

main90159-60215iAZT24#,ZZT241..X,Z200209-200501

main90159-60215iAZT24#,ZZT241..X,Z200209-200501

main90159-60215iAZT24#,ST246,ZZT241200501-200706

52119FSCREW, NO.3

main90159-60215iAZT24#,ZZT241..X,Z200209-200501

main90159-60215iAZT24#,ZZT241..X,Z200209-200501

main90159-60215iAZT24#,ST246,ZZT241200501-200706

52119GCLIP, NO.1

main90467-05138iAZT24#,ST246,ZZT241200209-200706

52119HCLIP, NO.2

main90467-05138iAZT24#,ZZT241..X,Z200209-200501

main90467-05138iAZT24#,ZZT241..X,Z200209-200501

main90467-05138iAZT24#,ST246,ZZT241200501-200706

52119JCLIP, NO.3

main90467-05138iAZT24#,ZZT241..X,Z200209-200501

main90467-05138iAZT24#,ZZT241..X,Z200209-200501

main90467-05138iAZT24#,ST246,ZZT241200501-200706

52147EBRACKET, FRONT BUMPER MOUNTING, RH

main52147-21010iAZT24#,ST246,ZZT241200209-200501

52148EBRACKET, FRONT BUMPER MOUNTING, LH

main52147-21010iAZT24#,ST246,ZZT241200209-200501

52611ABSORBER, FRONT BUMPER ENERGY

main52611-21020iAZT24#,ST246,ZZT241200501

52611AABSORBER, FRONT BUMPER ENERGY, RH

main52611-21010iAZT24#,ST246,ZZT241200209-200501

52612ABSORBER, FRONT BUMPER ENERGY, LH

main52612-21010iAZT24#,ST246,ZZT241200209-200501

7601

9011908630

main90119-08630

9015950311

main90159-50311

9015960431

main90159-60431

9017608054

main90176-08054

20 parts on this diagram · 4 diagrams in section
