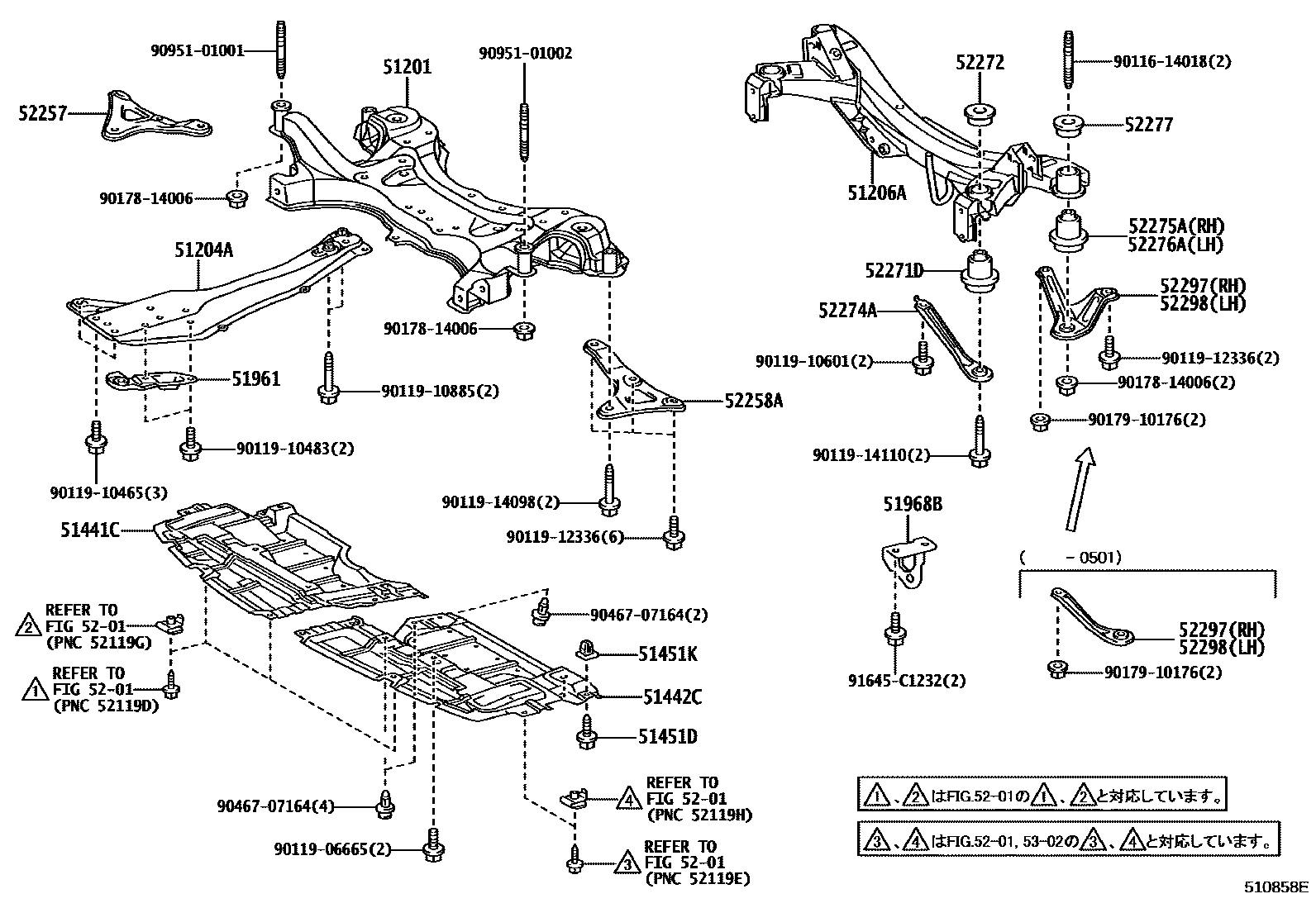

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-21040iAZT246,ST246¥73,400200209-200501

main51201-21050iAZT241,ZZT241¥68,200200209-200303

sub51201-21051¥68,100

main51201-21051iAZT241,ZZT241¥68,100200303-200404

sub51201-21060¥68,300

main51201-21060iAZT241,ZZT241¥68,300200404-200501

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-21020iST246¥17,700200209-200706

main51204-21030iAZT241,ZZT241¥19,500200209-200706

main51204-44020iAZT246¥12,200200209-200706

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-21060iST246¥64,000200209-200501

sub51206-21120¥64,000

main51206-21061iST246¥64,000200501

sub51206-21130¥64,000

main51206-21070iAZT246¥63,900200209-200501

sub51206-21140¥63,900

main51206-21080iAZT241,ZZT241¥45,600200209-200403

sub51206-21090¥48,900

main51206-21090iAZT241,ZZT241¥48,900200404-200412

sub51206-21091¥48,800

main51206-21091iAZT241,ZZT241¥48,800200501

main51206-21100iAZT246¥64,000200501

sub51206-21150¥64,000

51441CCOVER, ENGINE UNDER, RH

main51441-21020iAZT24#,ST246,ZZT241¥6,800200209-200406

sub51441-21021¥6,800

main51441-21021iAZT24#,ST246,ZZT241¥6,800200406-200501

main51441-21040iAZT24#,ST246,ZZT241¥6,000200501

sub51441-21021¥6,800

51442CCOVER, ENGINE UNDER, LH

main51442-21020iAZT24#,ST246,ZZT241¥6,800200209-200406

sub51442-21021¥6,800

main51442-21021iAZT24#,ST246,ZZT241¥6,800200406-200501

main51442-21040iAZT24#,ST246,ZZT241¥6,000200501

sub51442-21021¥6,800

51451DSCREW, NO.1

main90159-60383iAZT24#,ST246,ZZT241¥70200209-200706

51451KGROMMET, SCREW, NO.1

main90189-06208iAZT24#,ST246,ZZT241¥80200209-200706

51961HOOK, NO.1

main51963-32040iAZT24#,ST246,ZZT241¥1,450200209-200501

51968BHOOK, TRANSPORT, REAR LH

5201

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-20070iAZT24#,ST246,ZZT241¥3,160200209-200501

sub52257-20071¥2,190

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-20070iAZT24#,ST246,ZZT241¥3,400200209-200501

sub52258-20071¥2,350

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-21030iAZT241,ZZT241¥4,370200209-200501

main52271-21040iAZT246,ST246¥4,110200209-200501

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-21030iAZT241,ZZT241¥3,340200209-200501

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52274-21010iAZT241,ZZT241¥3,160200209-200501

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-21030iAZT241,ZZT241¥4,640200209-200501

main52275-21040iAZT246,ST246¥4,930200209-200501

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-21010iAZT241,ZZT241¥4,640200209-200501

main52276-21020iAZT246,ST246¥4,640200209-200501

52277RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52277-21010iAZT241,ZZT241¥3,340200209-200501

main52277-32030iAZT246,ST246¥900200209-200501

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-21010iAZT241,ZZT241¥3,700200209-200501

main52297-21020iAZT246,ST246¥4,430200209-200402

main52297-21021iAZT246,ST246¥4,430200402-200501

main52297-21030iAZT241,ZZT241¥3,920200501

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-21010iAZT241,ZZT241¥3,700200209-200501

main52298-21020iAZT246,ST246¥4,430200209-200402

main52298-21021iAZT246,ST246¥4,430200402-200501

main52298-21030iAZT241,ZZT241¥3,920200501

9011614018

main90116-14018¥780

9011906665

main90119-06665¥160

9011910465

main90119-10465¥120

9011910483

main90119-10483¥120

9011910601

main90119-10601¥90

9011910885

main90119-10885¥210

9011912336

main90119-12336¥210

9011914098

main90119-14098¥400

9011914110

main90119-14110¥680

9017814006

main90178-14006¥160

9017910176

main90179-10176¥120

9046707164

main90467-07164¥120

9095101001

main90951-01001¥470

9095101002

main90951-01002¥470

91645C1232

main91645-C1232¥160

35 parts on this diagram · 2 diagrams in section
