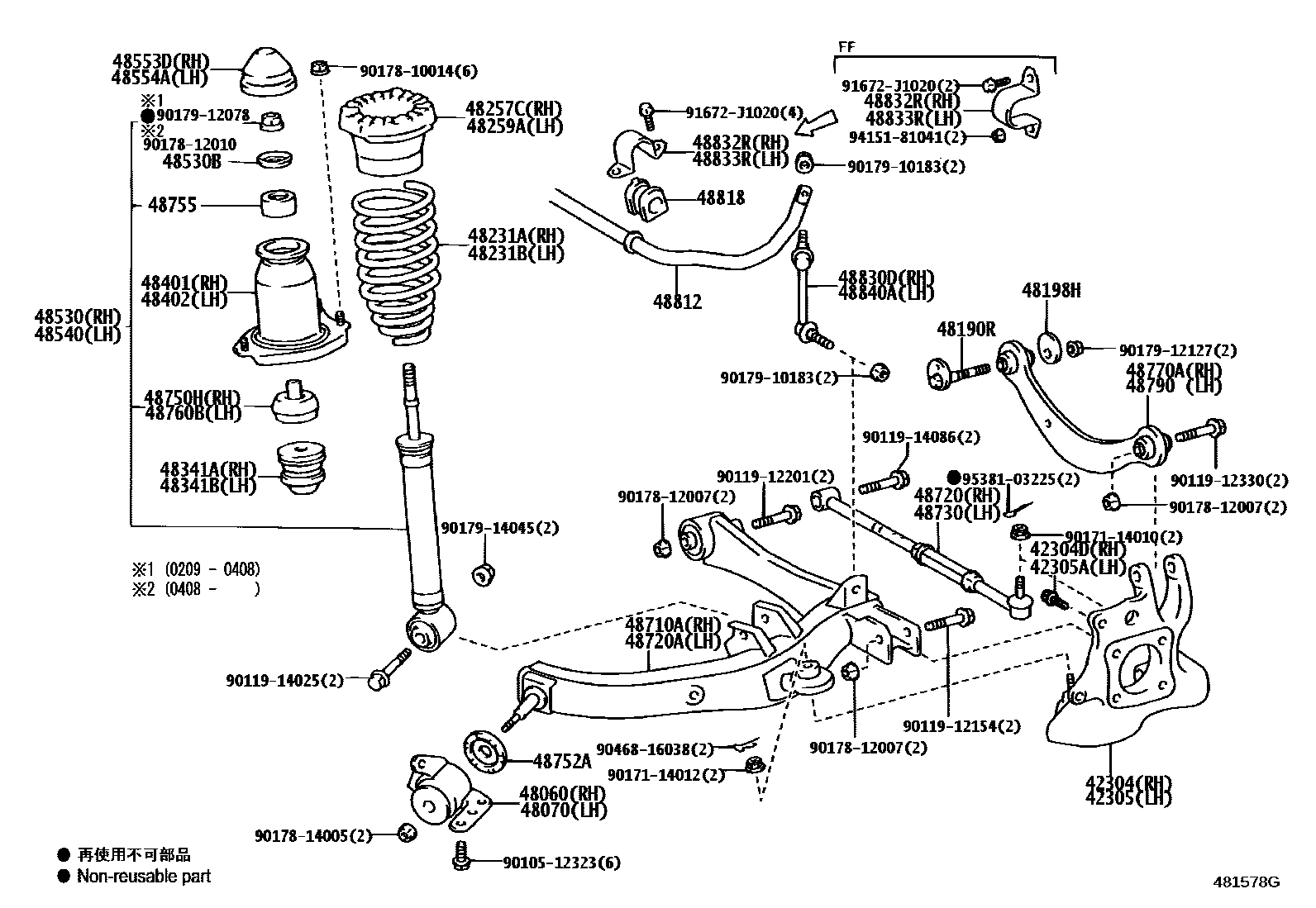

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42304DBOLT (FOR REAR AXLE CARRIER RH)
42305CARRIER SUB-ASSY, REAR AXLE, LH
42305ABOLT (FOR REAR AXLE CARRIER LH)
48060BRACKET ASSY, REAR SUSPENSION ARM, RH
48070BRACKET ASSY, REAR SUSPENSION ARM, LH
48190RCAM ASSY, CAMBER ADJUST
48198HCAM, CAMBER ADJUST, NO.2
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48530ABSORBER ASSY, SHOCK, REAR RH
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48540ABSORBER ASSY, SHOCK, REAR LH
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720ARM ASSY, LOWER CONTROL, RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730ARM ASSY, LOWER CONTROL, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48752ASTOPPER, REAR SUSPENSION SUPPORT
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48830DLINK ASSY, REAR STABILIZER, RH
48832RBRACKET, REAR STABILIZER BAR, NO.1 RH
48833RBRACKET, REAR STABILIZER BAR, NO.1 LH
48840ALINK ASSY, REAR STABILIZER, LH
9010512323
main90105-12323
9011912154
main90119-12154
9011912201
main90119-12201
9011912330
main90119-12330
9011914025
main90119-14025
9011914086
main90119-14086
9017114010
main90171-14010
9017114012
main90171-14012
9017810014
main90178-10014
9017812007
main90178-12007
9017812010
main90178-12010
9017814005
main90178-14005
9017910183
main90179-10183
9017912078
main90179-12078
9017912127
main90179-12127
9017914045
main90179-14045
9046816038
main90468-16038
91672J1020
main91672-J1020
9415181041
main94151-81041
9538103225
main95381-03225
57 parts on this diagram · 1 diagram in section
