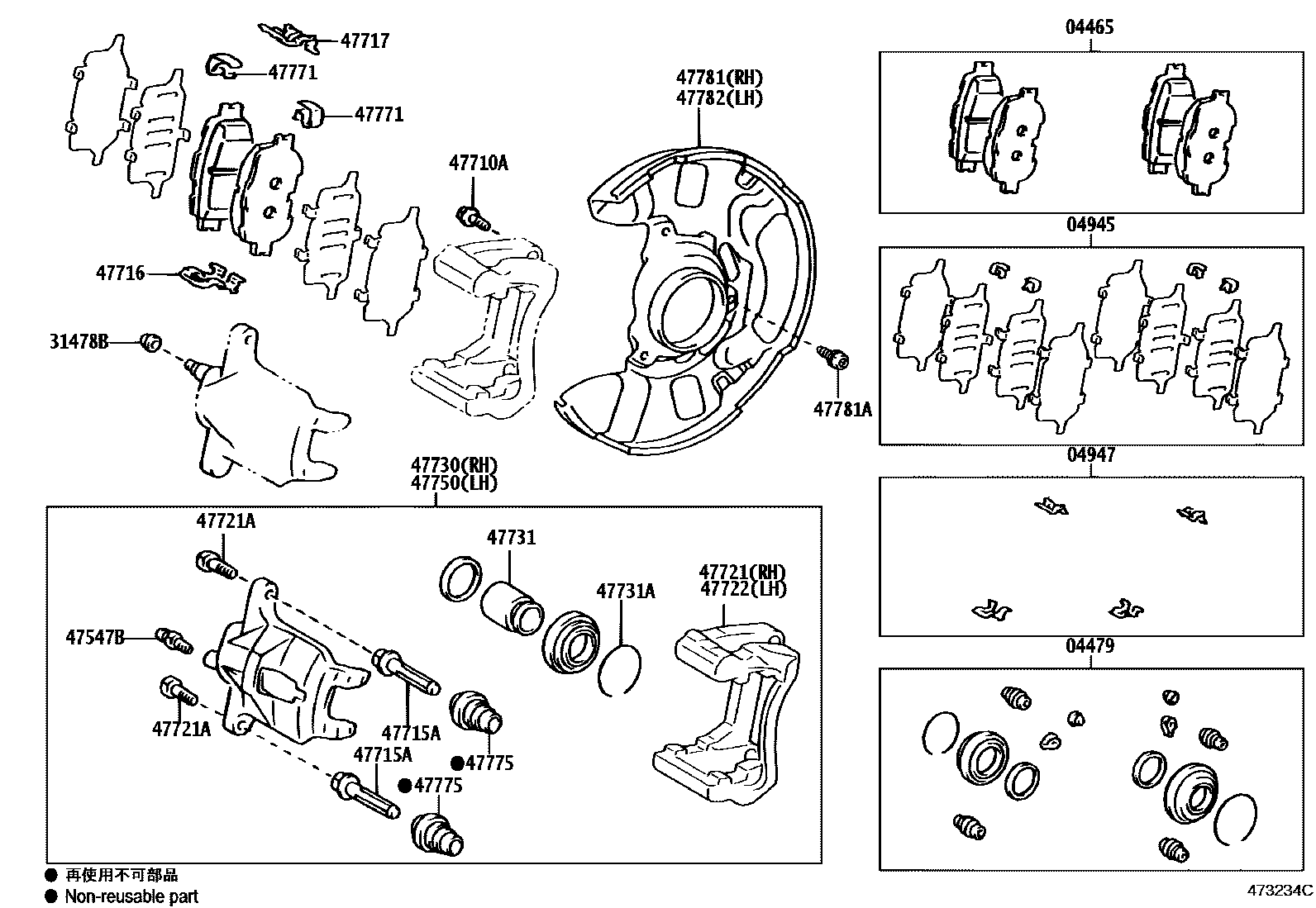

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-20540iAZT24#,ZZT241200209-200501

main04465-21020iST246200209-200501

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-13020iAZT24#,ZZT241200605

main04478-21020iST246200605

main04479-20330iAZT24#,ZZT241200209-200604

sub04478-13020

main04479-33170iST246200209-200604

sub04478-21020

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-13030iAZT24#,ZZT241200209-200501

main04945-21011iST246200209-200501

04947FITTING KIT, DISC BRAKE, FRONT

main04947-20120iAZT24#,ZZT241200209-200501

main04947-33180iST246200209-200501

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAZT24#,ST246,ZZT241200209-200501

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAZT24#,ZZT241200209-200706

main47547-21030iST246200209-200501

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iAZT24#,ST246,ZZT241200209-200706

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070iST246200209-200706

main47715-22080iAZT24#,ZZT241200209-200706

main47715-33060iST246200209-200706

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20210iAZT24#,ZZT241200209-200501

main47716-33130iST246200209-200501

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20110iAZT24#,ZZT241200209-200501

main47717-33100iST246200209-200501

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20460iAZT24#,ZZT241200209-200501

main47721-21020iST246200209-200501

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iAZT24#,ZZT241200209-200501

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-21020iST246200209-200706

main47722-20150iAZT24#,ZZT241200209-200706

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20640iAZT24#,ZZT241200209-200501

main47730-21020iST246200209-200501

47731PISTON, FRONT DISC BRAKE

main47731-33100iST246200209-200501

main47731-44010iAZT24#,ZZT241200209-200501

sub47731-33010

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-51002iST246200209-200501

main90522-66001iAZT24#,ZZT241200209-200501

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20640iAZT24#,ZZT241200209-200501

main47750-21020iST246200209-200501

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32040iAZT24#,ZZT241200209-200501

main47771-33020iST246200209-200501

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iAZT24#,ST246,ZZT241200209-200604

sub47775-50010

main47775-50010iAZT24#,ST246,ZZT241200605

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-12240iAZT24#,ZZT241200209-200706

main47781-21030iST246200209-200706

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iAZT24#,ST246,ZZT241200209-200706

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-12240iAZT24#,ZZT241200209-200706

main47782-21030iST246200209-200706

22 parts on this diagram · 2 diagrams in section
