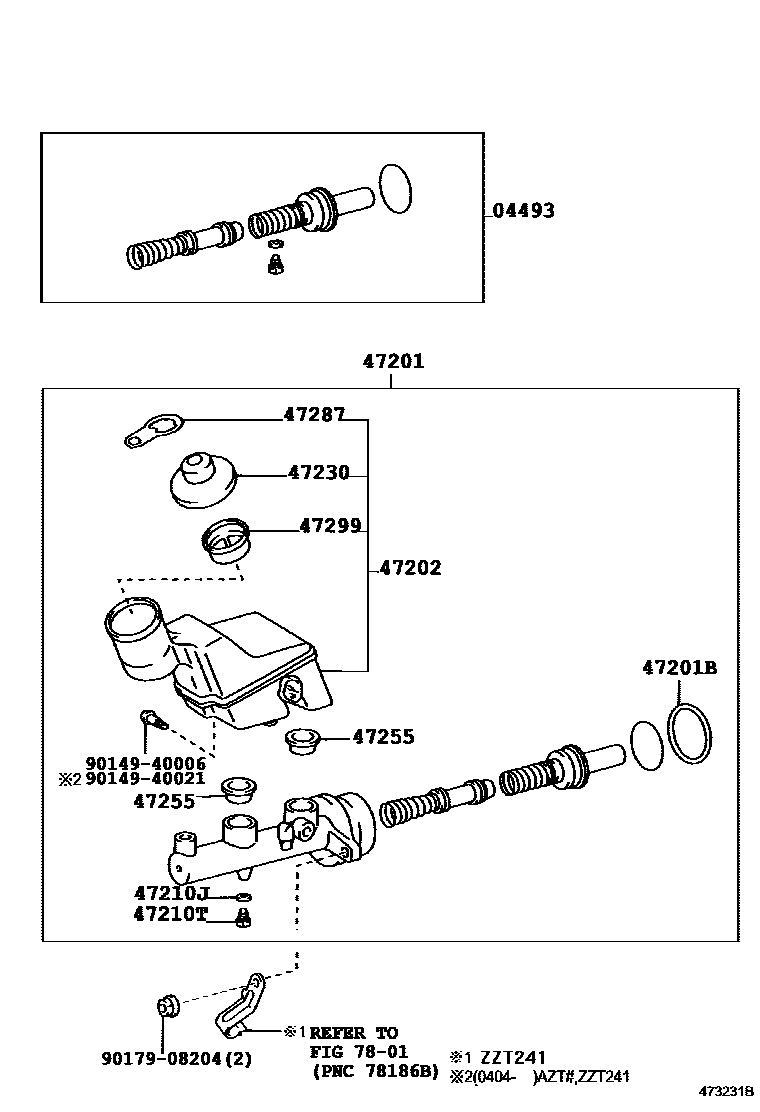

BRAKE MASTER CYLINDER

0001 1 0002 1��(VSC)

04493CYLINDER KIT, BRAKE MASTER

main04493-21020iST246200209-200501

main04493-21030iST246200501-200706

main04493-2B040iAZT24#,ZZT241200209-200706

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-21050iST246200209-200501

main47201-21060iST246200501-200706

main47201-2B310iAZT24#,ZZT241200209-200706

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iAZT24#,ST246,ZZT241200209-200501

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-20320iAZT24#,ZZT241200209-200404

sub47220-20321

sub90149-40021

main47220-20321iAZT24#,ZZT241200404-200501

main47220-21020iST246200209-200501

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iAZT24#,ST246,ZZT241200209-200501

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iAZT24#,ST246,ZZT241200209-200501

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iAZT24#,ST246,ZZT241200209-200501

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iAZT24#,ST246,ZZT241200209-200501

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iAZT24#,ST246,ZZT241200209-200501

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iAZT24#,ST246,ZZT241200209-200501

7801

9014940006

main90149-40006

9014940021

main90149-40021

9017908204

main90179-08204

14 parts on this diagram · 2 diagrams in section
