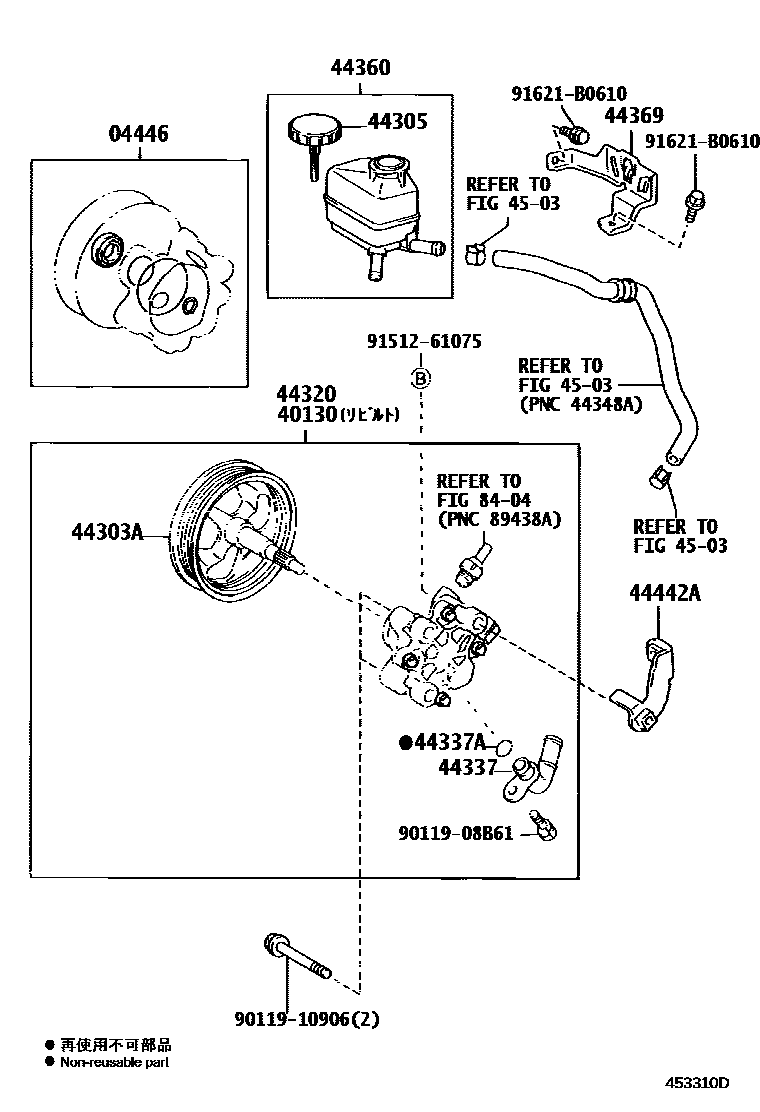

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1

04446GASKET KIT, POWER STEERING PUMP

main04446-20130iST246¥2,570200209-200501

main04446-32050iAZT24#,ZZT241¥970200209-200501

40130PUMP ASSY,VANE REBUILT

main40130-20860iZZT241¥66,500200501-200706

sub44310-20860¥94,600

main40130-20860iZZT241¥66,500200209-200501

sub44310-20860¥94,600

main40130-20870iAZT24#¥66,500200209-200501

sub44310-20870¥94,600

main40130-20870iAZT24#¥66,500200501-200706

sub44310-20870¥94,600

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-28010iAZT24#¥5,400200209-200501

main44303-32010iZZT241¥8,200200209-200501

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-20041iAZT24#,ST246,ZZT241¥2,240200209-200706

sub44305-20050¥2,230

44320PUMP ASSY, VANE

main44310-20860iZZT241¥94,600200209-200706

main44310-20870iAZT24#¥94,600200209-200706

main44320-21040iST246¥81,700200209-200706

44337UNION, POWER STEERING SUCTION PORT

main44337-32110iAZT24#,ZZT241¥1,430200209-200501

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iAZT24#,ZZT241¥140200209-200501

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-20150iAZT24#,ST246,ZZT241¥10,400200209-200706

44369BRACKET, OIL RESERVOIR, NO.1

main44390-20060iAZT24#,ST246,ZZT241¥1,210200209-200501

44442ABRACKET, VANE PUMP, REAR

main44442-12040iZZT241¥670200209-200501

main44442-21010iAZT241¥510200209-200501

4503

8404

9011908B61

main90119-08B61¥60

9011910906

main90119-10906¥270

9151261075

main91512-61075¥220

91621B0610

main91621-B0610¥120

16 parts on this diagram · 4 diagrams in section
