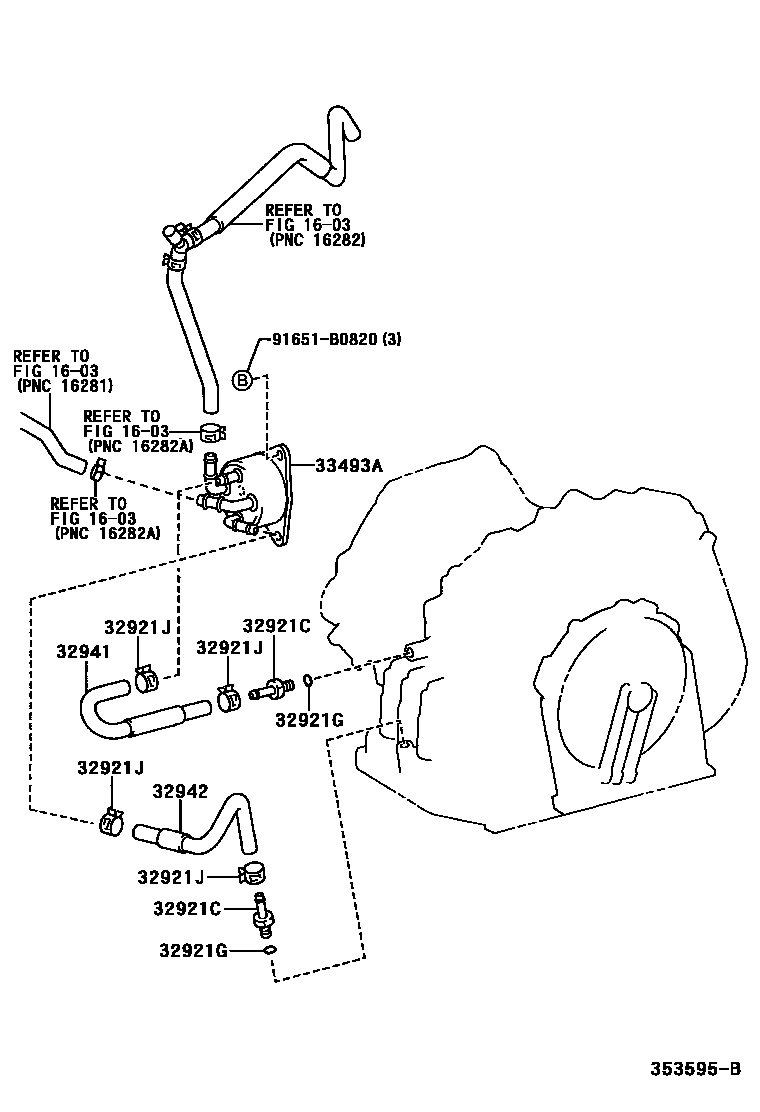

OIL COOLER & TUBE (ATM)

0001 1U341E 0002 1A247E,A248F 0003 1U140F

1603

32921TUBE, OIL COOLER INLET, NO.1

main32921-21110iAZT24#200209-200501

32921CUNION(FOR OIL COOLER TUBE)

main90404-13004iZZT241200209-200501

sub90404-13010

main90404-16032iAZT24#200209-200501

main90407-13009iST246200209-200501

sub90407-13010

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iST246,ZZT241200209-200501

main90301-11006iAZT24#200209-200501

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16022iAZT24#,ST246,ZZT241200209-200706

32941HOSE, OIL COOLER INLET, NO.1

main32941-20210iZZT241200209-200212

main32941-68010iZZT241200212-200501

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-20060iZZT241200209-200212

main32942-68010iZZT241200212-200501

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-20020iZZT241200209-200212

main33493-20021iZZT241200212-200501

main33493-21010iST246200209-200501

91651B0820

main91651-B0820

9 parts on this diagram · 3 diagrams in section
