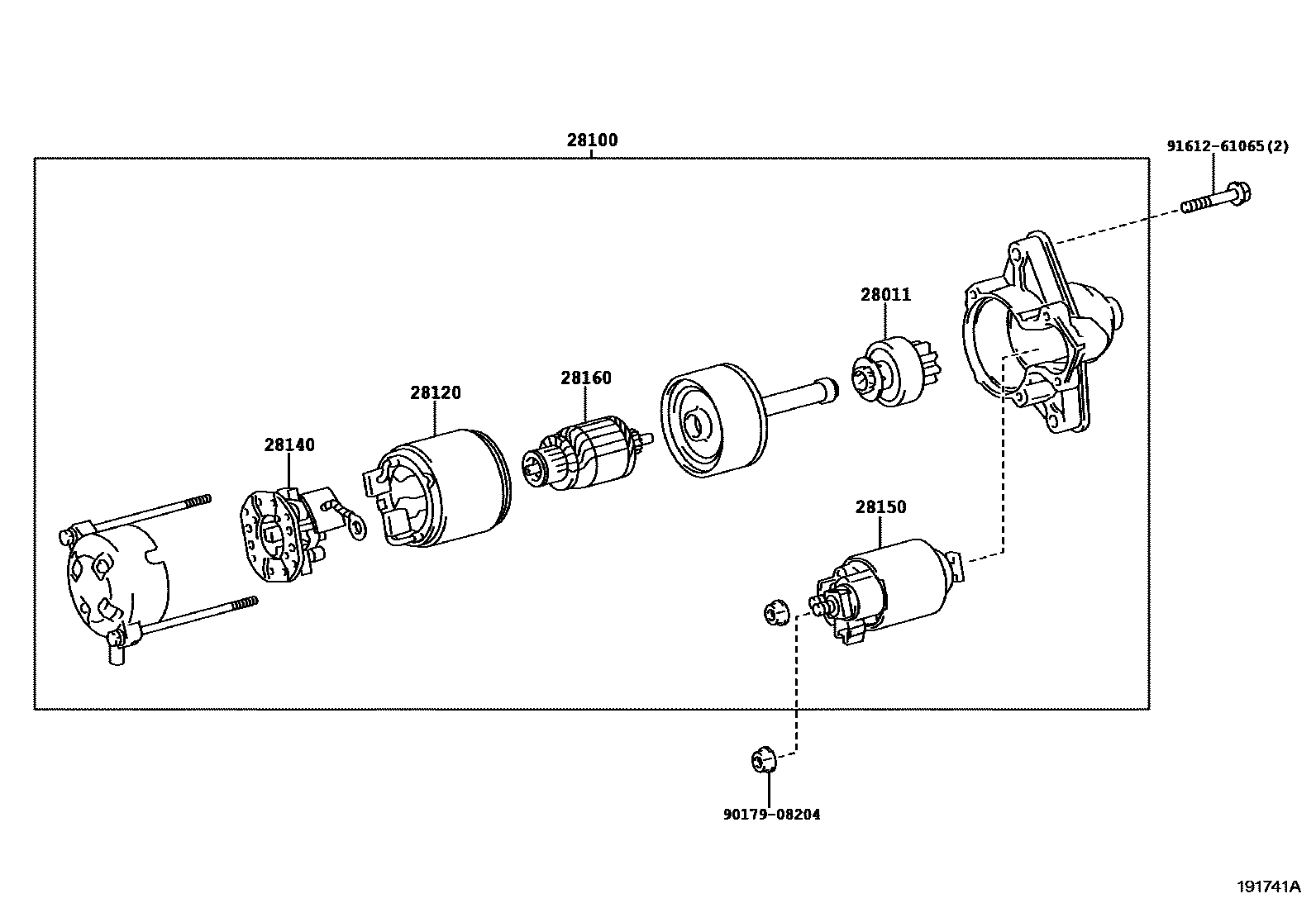

STARTER

0001 112V 0.8KW,1.0KW 0002 112V 1.3KW,1.6KW

28011CLUTCH SUB-ASSY, STARTER

main28011-70020i1ZZFE..ZZT241200209-200501

28100STARTER ASSY

main28100-22030i1ZZFE..ZZT241200209-200501

sub28100-22031

main28100-22040i1ZZFE..ZZT241200209-200501

sub28100-22041

main28100-28041i3SGTE..ST246200209-200501

sub28100-28042

main28100-28052i1AZFSE..AZT24#200209-200501

sub28100-28053

28120YOKE ASSY, STARTER

main28120-28040i3SGTE..ST246200209-200501

sub28120-28060

main28120-28050i1AZFSE..AZT24#200209-200501

sub28120-28080

main28120-70020i1ZZFE..ZZT241200209-200501

main28120-70050i1ZZFE..ZZT241200209-200501

28140HOLDER ASSY, STARTER BRUSH

main28140-70020i1ZZFE..ZZT241200209-200501

28150SWITCH ASSY, MAGNET STARTER

main28150-70030i1ZZFE..ZZT241200209-200706

sub28150-22100

28160ARMATURE ASSY, STARTER

main28160-28040i1AZFSE,3SGTE..AZT24#,ST246200209-200501

main28160-70021i1ZZFE..ZZT241200209-200501

main28160-70050i1ZZFE..ZZT241200209-200501

9017908204

main90179-08204

9161261065

main91612-61065

8 parts on this diagram · 2 diagrams in section
