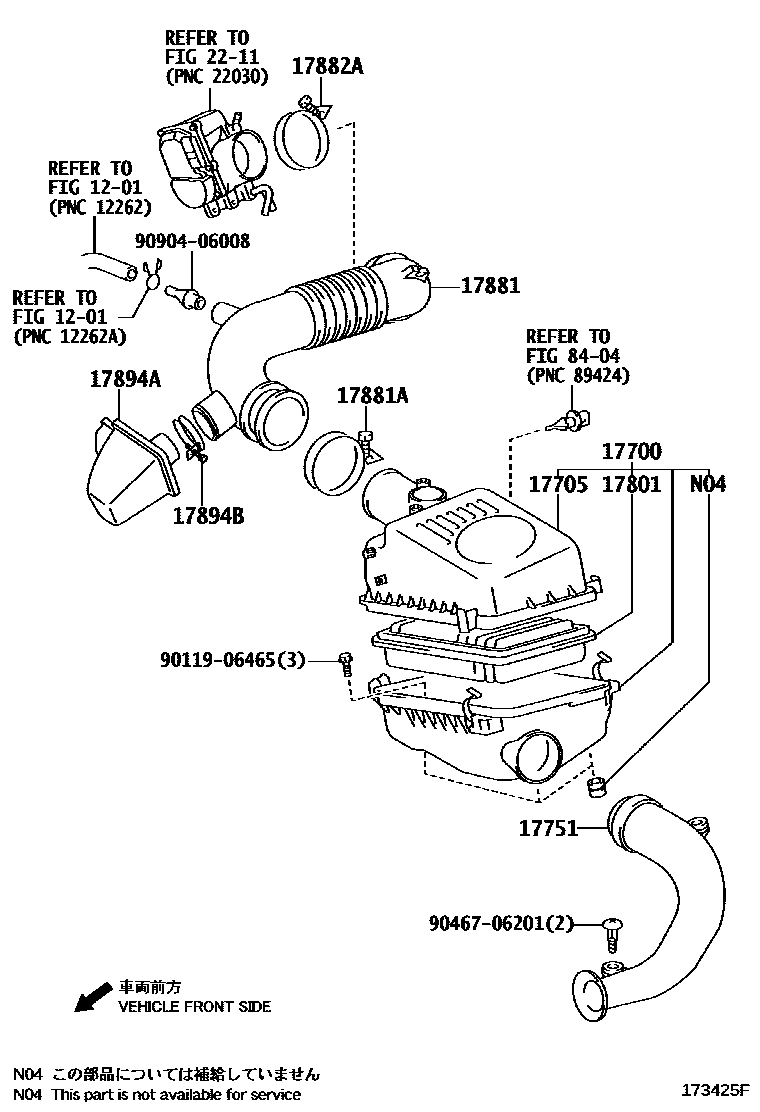

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

1201

17700CLEANER ASSY, AIR

main17700-22140i1AZFSE..AZT24#200209-200501

sub17700-22120

main17700-28110i1AZFSE..AZT24#200209-200501

main17700-74800i3SGTE..ST246200209-200501

17705CAP SUB-ASSY, AIR CLEANER

main17705-22140i1AZFSE..AZT24#200209-200501

sub17705-22120

main17705-28070i1AZFSE..AZT24#200209-200501

main17705-74560i3SGTE..ST246200209-200706

17751INLET, AIR CLEANER, NO.1

main17751-22100i1ZZFE..ZZT241200209-200501

main17751-74130i3SGTE..ST246200209-200501

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-22020i1ZZFE..ZZT241200209-200501

main17801-74060i3SGTE..ST246200209-200501

17881HOSE, AIR CLEANER, NO.1

main17881-22080i1ZZFE..ZZT241200209-200501

main17881-28060i1AZFSE..AZT24#200209-200501

main17881-7A130i3SGTE..ST246200209-200501

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10800i1ZZFE..ZZT241200209-200706

main96111-10830i3SGTE..ST246200209-200501

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10730i1AZFSE..AZT24#200209-200706

17894ARESONATOR, INTAKE AIR, NO.2

main17894-16060i1AZFSE..AZT24#200209-200501

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10500i1AZFSE..AZT24#200209-200501

2211

8404

9011906465

main90119-06465

9046706201

main90467-06201

9090406008

main90904-06008

15 parts on this diagram · 4 diagrams in section
