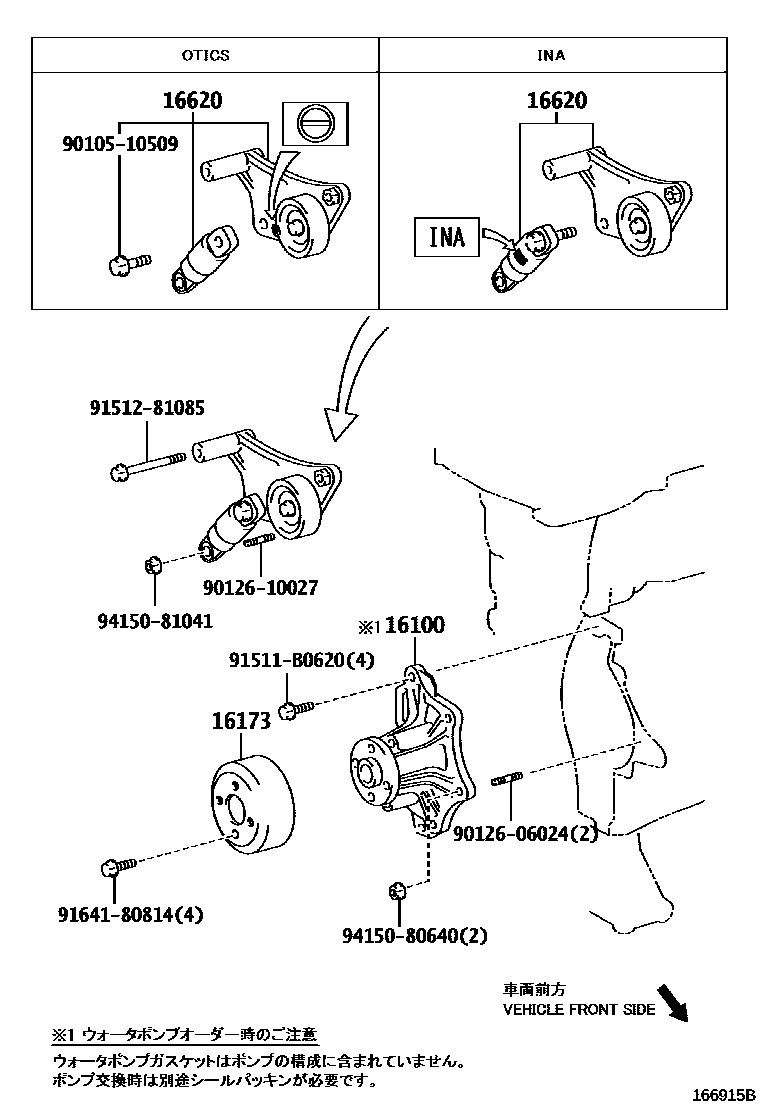

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-28040i1AZFSE..AZT24#200209-200701

sub16100-28041

main16100-28041i1AZFSE..AZT24#200701

main16100-29175i1ZZFE..ZZT241200209-200311

sub16100-29415

main16100-29415i1ZZFE..ZZT241200311-200501

main16100-79225i3SGTE..ST246200209-200501

sub16100-79226

16173PULLEY, WATER PUMP

main16173-28020i1AZFSE..AZT24#200209-200501

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W110i1AZFSE..AZT24#200605-200608

sub16620-28070

main16620-22012i1ZZFE..ZZT241200209-200609

sub16620-22013

main16620-22013i1ZZFE..ZZT241200609

sub16620-0W093

main16620-28011i1AZFSE..AZT24#200209-200605

sub16620-0W110

main16620-28070i1AZFSE..AZT24#200608-200703

sub16620-28012

main16620-28090i1AZFSE..AZT24#200703-200706

9010510509

main90105-10509

9012606024

main90126-06024

9012610027

main90126-10027

91511B0620

main91511-B0620

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

9415081041

main94150-81041

11 parts on this diagram · 3 diagrams in section
