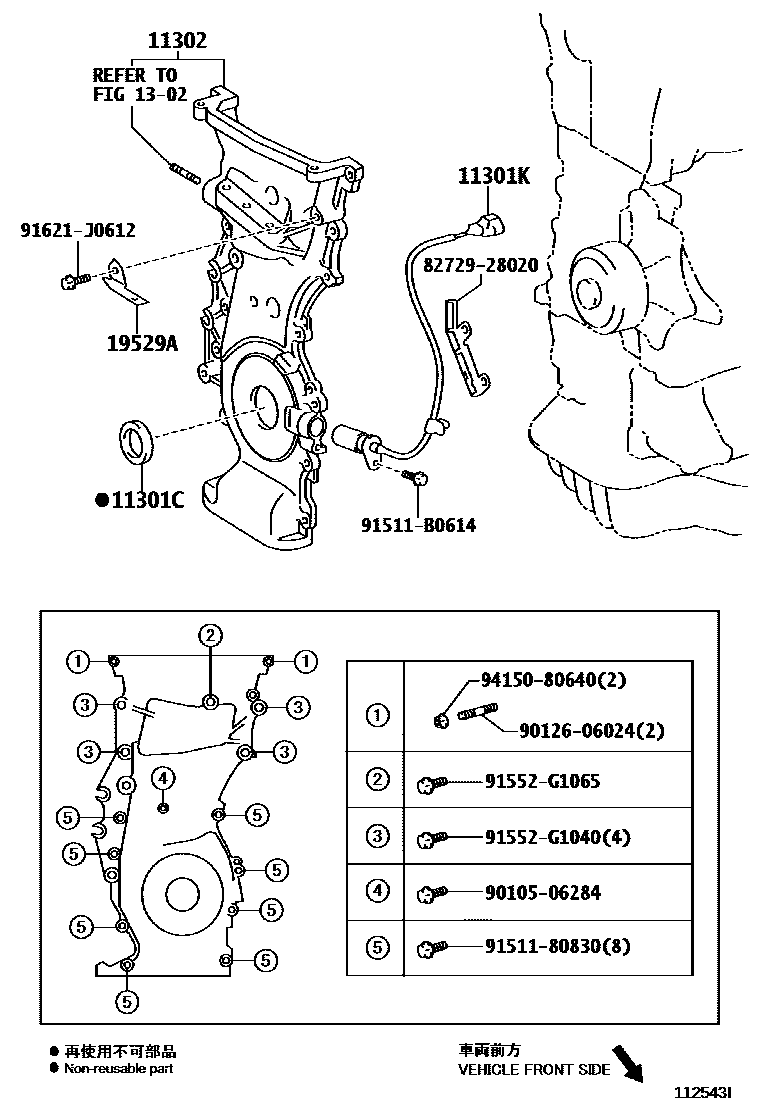

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-38078i1AZFSE..AZT24#200209-200211

sub90311-38089

main90311-38084i1AZFSE..AZT24#200212-200304

main90311-38089i1AZFSE..AZT24#200304-200501

11301KSENSOR, CRANK POSITION

main90919-05030i1ZZFE..ZZT241200209-200501

main90919-05047i1AZFSE..AZT24#200209-200501

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-28081i1AZFSE..AZT24#200209-200508

main11310-28082i1AZFSE..AZT24#200508

main11321-0D030i1ZZFE..ZZT241200209-200501

main11321-22021i1ZZFE..ZZT241200209-200501

main11321-88560i3SGTE..ST246200209-200706

1302

19529ACLAMP

main19529-28010i1AZFSE..AZT24#200209-200501

8272928020

main82729-28020

9010506284

main90105-06284

9012606024

main90126-06024

9151180830

main91511-80830

91511B0614

main91511-B0614

91552G1040

main91552-G1040

91552G1065

main91552-G1065

91621J0612

main91621-J0612

9415080640

main94150-80640

14 parts on this diagram · 3 diagrams in section
