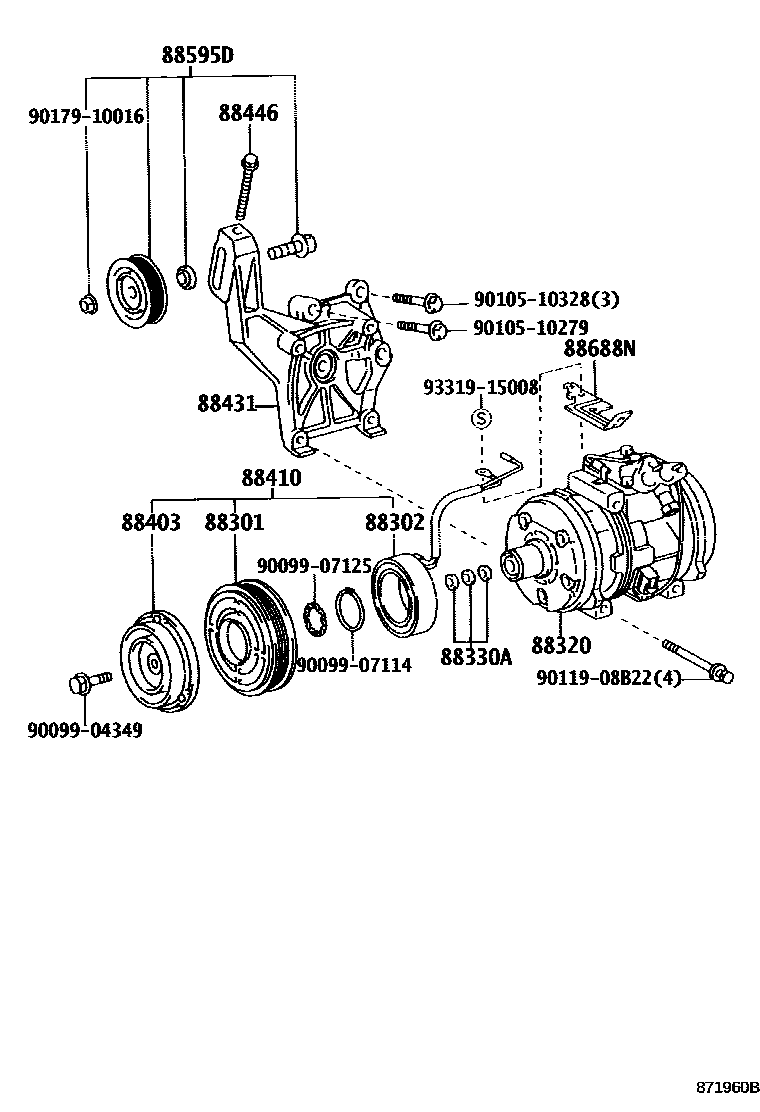

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-16050iST21#..GT,GTT199708

main88412-1A060iAT211199708

main88412-20200iST21#..E,G199708-199912

main88412-2B090iST21#..E,G199912

main88412-32060iCT216199708

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-2A030iAT211,CT216,ST21#199708

88320COMPRESSOR ASSY, COOLER

main88320-21070iST215..GTT199708-199804

sub88320-21090

main88320-21090iST215..GTT199804

main88320-2B340iAT211199708

sub88320-35H92

main88320-2B350iST21#..E,G199708

main88320-2B360iCT216199708

sub88320-2BH90

main88320-44020iST21#..GT199708

sub88320-44H91

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iAT211,CT216,ST21#199708

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iAT211,CT216,ST21#199708

88410CLUTCH ASSY, MAGNET

main88410-2B170iAT211199708

main88410-2B180iST21#..E,G199708-199907

sub88410-2B240

main88410-2B190iST21#..GT,GTT199708

main88410-2B240iST21#..E,G199907

main88410-33090iCT216199708

sub88410-44010

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-20390iAT211199708

88446BOLT, IDLE PULLEY

main88446-12030iAT211199708

88595DPULLEY ASSY, IDLE

main88440-20120iST21#..GT,GTT199708

main88440-20160iAT211199708-199912

main88440-20170iAT211199912

88688NBRACKET, COOLER

main88688-21020iST21#..GT199708

main88688-2D760iAT211199708

main88688-2D770iCT216199708

main88688-2D800iST215..GTT199708

main88688-33260iST21#..E,G199708

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125

9010510279

main90105-10279

9010510328

main90105-10328

9011908B22

main90119-08B22

9017910016

main90179-10016

9331915008

main93319-15008

18 parts on this diagram · 4 diagrams in section
