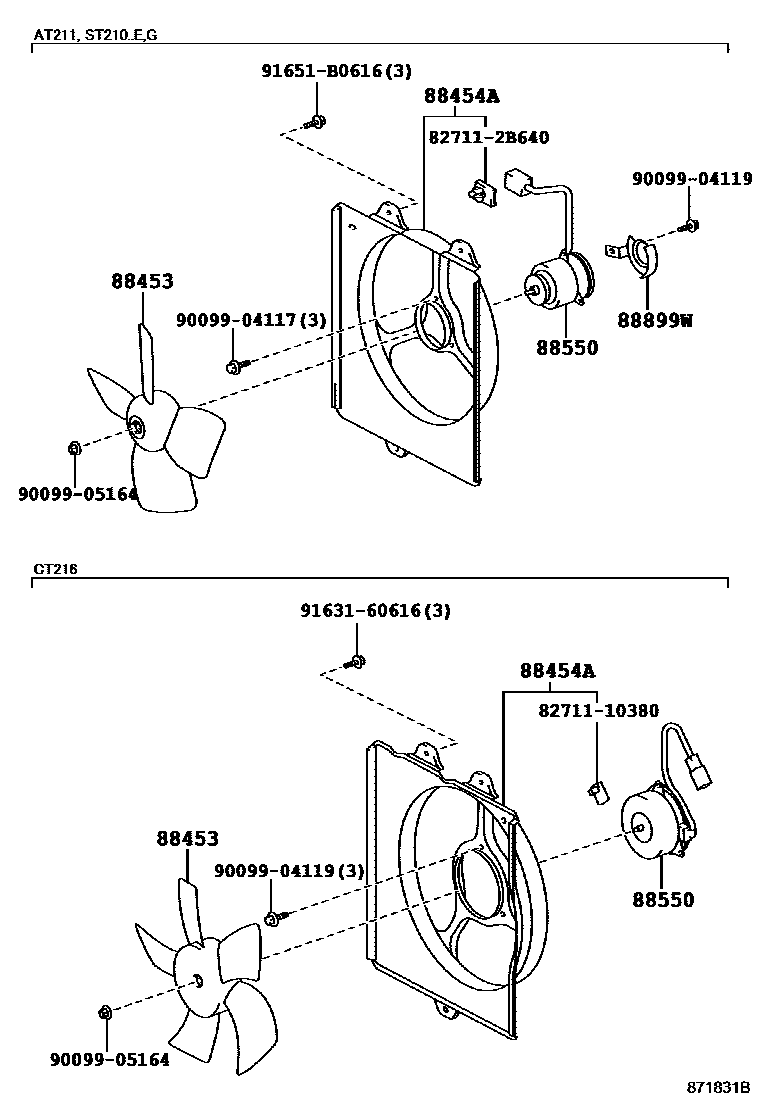

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1��� 0002 1��� 0003 1������ & �����

88453FAN, COOLING (FOR CONDENSER)

main16361-64010iAT211,ST210..E,G199708

main16361-64060iCT216199708

main16361-74130iST215..GTT199708

main88453-20080iST210..GT;ST215..E,G,GT199708

88454ASHROUD, FAN

main16711-64450iCT216199708

main16711-74680iST215..GTT199708

main88454-20160iAT211,ST210..E,G199708

main88454-20170iST210..GT;ST215..E,G,GT199708

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-64140iCT216199708

main16363-74180iST210..GT;ST215..E,G,GT199708

main16363-74230iST215..GTT199708

main88550-32110iAT211,ST210..E,G199708

88899WSUPPORT SUB-ASSY, B

main88899-16020iST210..GT;ST215..E,G,GT199708

main88899-20290iAT211,ST210..E,G199708

8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10380

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

9009904117

main90099-04117

9009904119

main90099-04119

9009905164

main90099-05164

9163160616

main91631-60616

91651B0616

main91651-B0616

11 parts on this diagram · 3 diagrams in section
