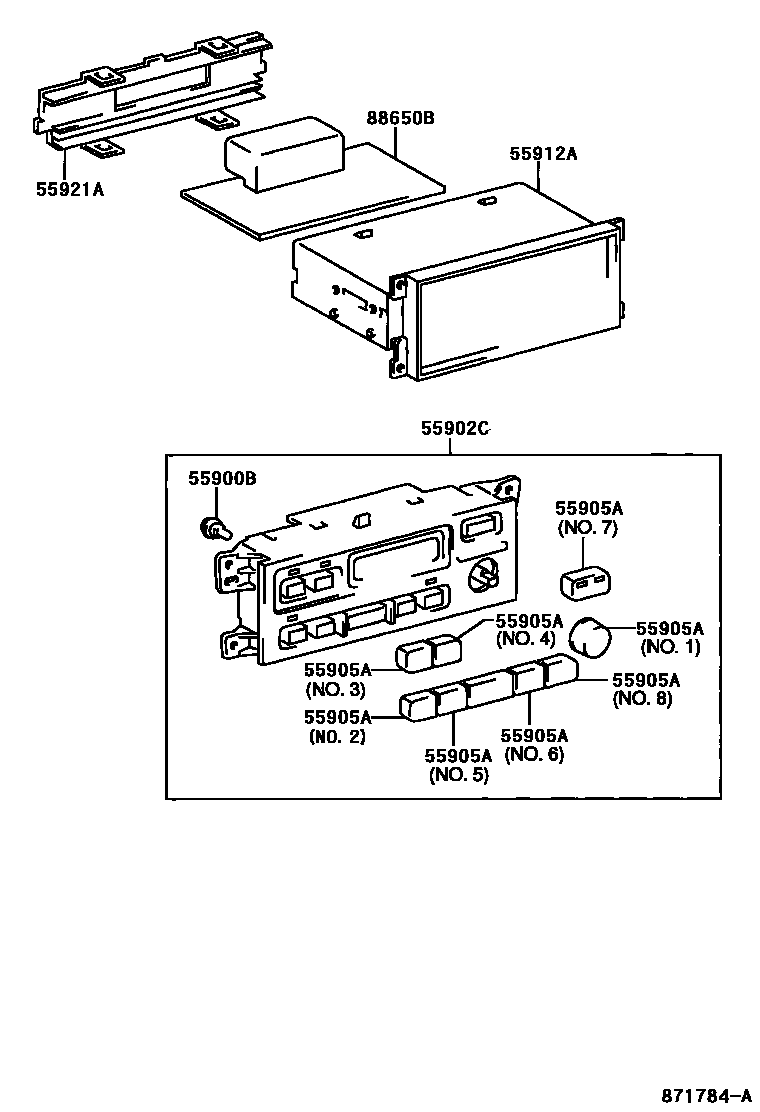

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1����-����� 0002 1������ 0003 1���-

55900BBULB, AIR CONDITIONER CONTROL

main90010-05101iAT211,CT216,ST21#..E199708

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-21010iST21#..G,GT,GTT199708-199912

main55902-21020iAT211,CT216,ST21#..E199708

main55902-21030iST21#..G,GT,GTT199912

sub55902-21010

55905AKNOB, HEATER CONTROL

main55905-22430iST21#..G,GT,GTT199708

sub55905-60170

main55905-60170iAT211,CT216,ST21#..E199708

main55905-60180iAT211,CT216,ST21#199708

main55905-60190iAT211,CT216,ST21#199708

main55905-60200iAT211,CT216,ST21#199708

main55905-60210iAT211,CT216,ST21#199708

main55905-60220iAT211,CT216,ST21#199708

main55905-60230iAT211,CT216,ST21#199708

main55905-60240iAT211,CT216,ST21#199708

55912AHOUSING, HEATER CONTROL

main55912-22020iAT211,CT216,ST21#199708

55921ARETAINER, HEATER CONTROL

main55921-22070iAT211,CT216,ST21#199708

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-21060iST21#..G,GT,GTT199708

main88650-21070iAT211199708

main88650-21080iCT216,ST21#..E199708

6 parts on this diagram · 3 diagrams in section
