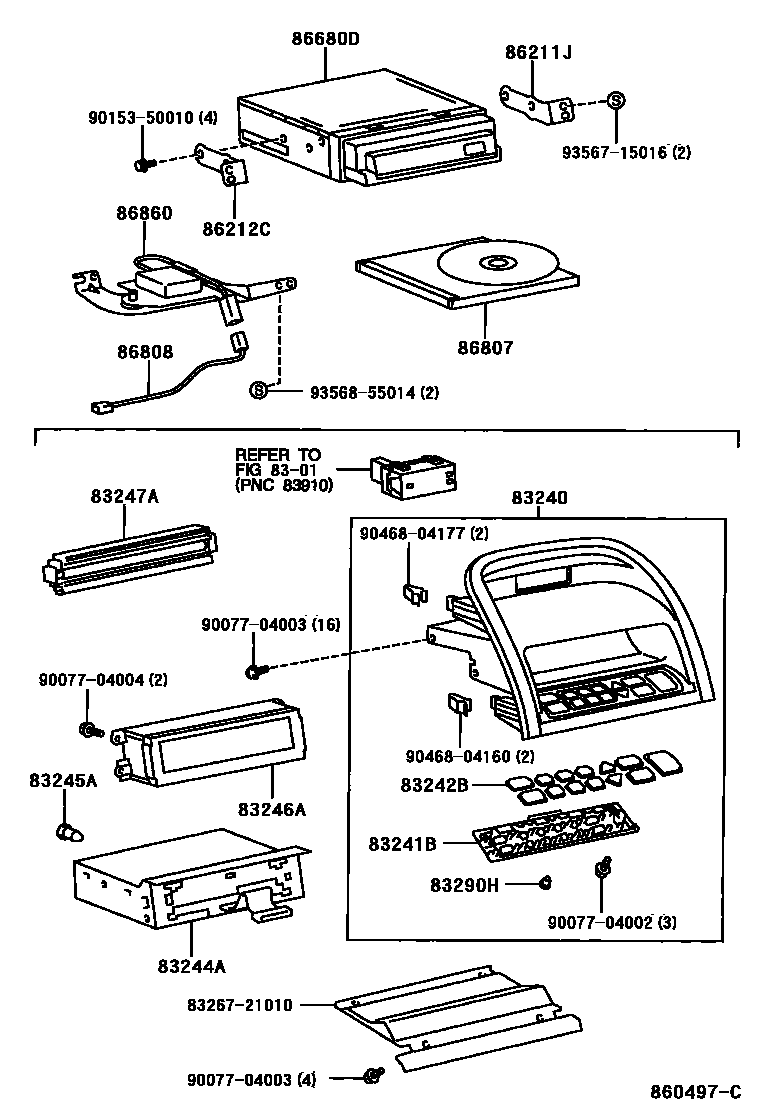

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

8301

83240CASE ASSY, MULTI INFORMATION DISPLAY

main83240-21010iAT211,CT216,ST21#199708-199912

main83240-21020iST21#..GT,GTT199912

83241BSWITCH, MULTI INFORMATION DISPLAY

main83263-21010iAT211,CT216,ST21#199708-199912

83242BKNOB SET, MULTI INFORMATION DISPLAY

main83264-21010iAT211,CT216,ST21#199708-199912

main83264-21020iST21#..GT,GTT199912

83244ACOMPUTER, MULTI INFORMATION DISPLAY

main83265-21010iAT211,CT216,ST21#199708-199912

main83265-21020iST21#..GT,GTT199912

83245ACOVER, MULTI INFORMATION DISPLAY, LOWER

main83266-21010iAT211,CT216,ST21#199708-199912

83246APANEL, MULTI INFORMATION DISPLAY

main83268-21010iAT211,CT216,ST21#199708-199912

83247ALAMP, MULTI INFORMATION DISPLAY

main83269-21010iAT211,CT216,ST21#199708-199912

83290HBLUB, MULTI INFORMATION DISPLAY

main90010-07010iAT211,CT216,ST21#199708-199912

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-21030iAT211,CT216,ST21#199708

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-21030iAT211,CT216,ST21#199708

86680DDISPLAY ASSY, TELEVISION

main86680-21010iAT211,CT216,ST21#199708-199711

sub86680-21011

main86680-21011iAT211,CT216,ST21#199711-199912

main86680-21020iAT211,CT216,ST21#199912

86807DISC KIT, CD-ROM

main86807-13010iAT211,CT216,ST21#199708-199711

sub86807-13011

main86807-13011iAT211,CT216,ST21#199711-199912

86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1

main86808-21020iAT211,CT216,ST21#199708-199912

86860ANTENNA ASSY, NAVIGATION

main86860-21020iAT211,CT216,ST21#199708-199912

main86860-21030iAT211,CT216,ST21#199912

8326721010COVER, ACCESSORY METER

main83267-21010

9007704002

main90077-04002

9007704003

main90077-04003

9007704004

main90077-04004

9015350010

main90153-50010

9046804160

main90468-04160

9046804177

main90468-04177

9356715016

main93567-15016

9356855014

main93568-55014

24 parts on this diagram · 2 diagrams in section
