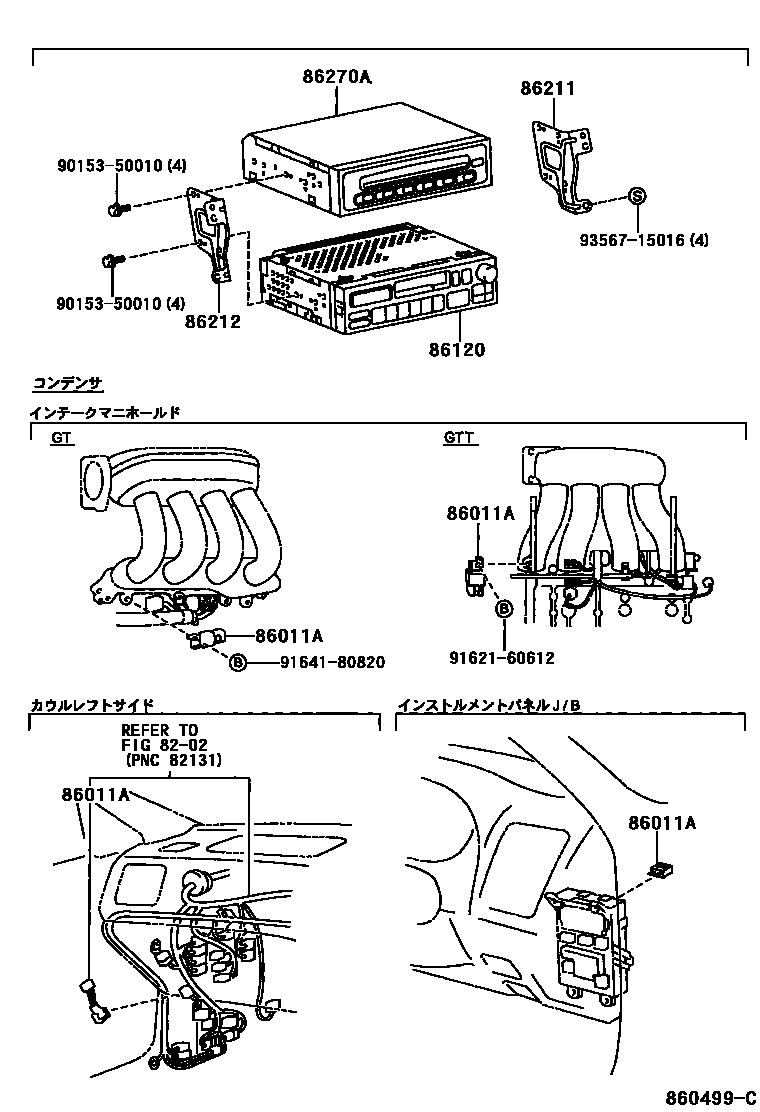

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

8202

86011ACONDENSER, RADIO SETTING

main90980-04066iAT211,CT216,ST21#199708

main90980-04116iAT211,ST21#..E,G199708

main90980-04132iST21#..GT,GTT199708

86120RECEIVER ASSY, RADIO

main86120-21020iST215..GT,GTT199708-199912

main86120-21030iAT211,CT216,ST21#199708-199710

sub86120-21031

main86120-21031iAT211,CT216,ST21#199710-199911

sub86120-21032

main86120-21032iAT211,CT216,ST21#199911-199912

main86120-21040iST21#..GT,GTT199912

main86120-26120iAT211,CT216,ST21#..E,G199912

main86120-2B530iAT211,CT216,ST21#..E,G199708-199912

86211BRACKET, RADIO, NO.1

main86211-21010iAT211,CT216,ST21#199708

main86211-21020iST215..GT,GTT199708-199912

86212BRACKET, RADIO, NO.2

main86212-21010iAT211,CT216,ST21#199708

main86212-21020iST215..GT,GTT199708-199912

86270ADISC PLAYER ASSY

main86270-21010iST215..GT,GTT199708-199912

9015350010

main90153-50010

9162160612

main91621-60612

9164180820

main91641-80820

9356715016

main93567-15016

10 parts on this diagram · 2 diagrams in section
