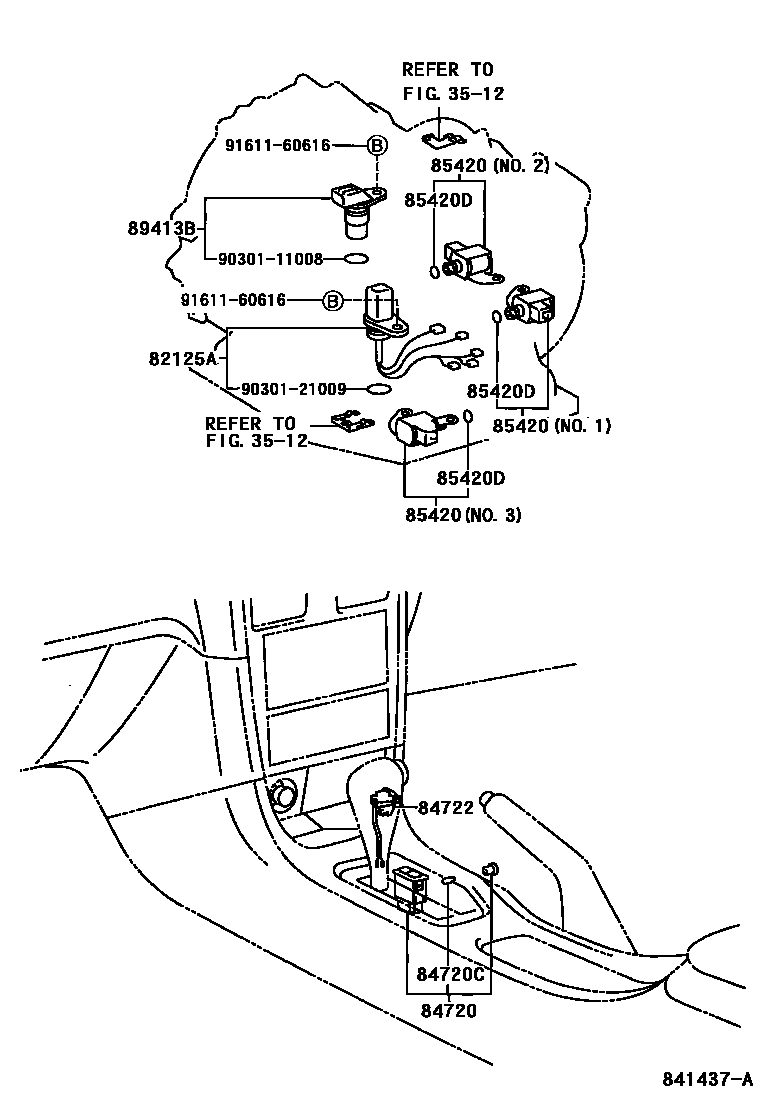

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1 0004 1 0006 1

82125AWIRE, TRANSMISSION

main82125-12350iST210..E,G199708

main82125-20220iST210..GT;CT216,ST215..4FC..(E,G,GT)199708

main82125-20230iAT211..4FC199708

main82125-21030iST215..4FC..GTT199711-200110

sub82125-28180

main82125-28180iST215..4FC..GTT200110

84720SWITCH ASSY, PATTERN SELECT

main84720-20170iAT211,ST21#..4FC..(E,G,GT)199708

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-20110iAT211,ST21#..4FC..(E,G,GT)199708

84722SWITCH, TRANSMISSION CONTROL

main84722-20170-C0iAT211,CT216,ST21#..4FC..(E,G,GT)199708-199912

BLACK,TRIM1#

main84722-20170-C0iAT211,CT216,ST21#..4FC..(E,G,GT)199912

BLACK,TRIM2#

main84722-21010iST215..4FC..GTT199711-199912

main84722-21020iST215..4FC..GTT199912

sub84722-21010

85420SOLENOID ASSY, TRANSMISSION

main85420-12100iAT211,ST210..4FC199708-199809

sub85420-21010

main85420-12120iAT211,ST210..4FC199708-199809

sub85420-21030

main85420-12140iST210199708-199809

sub85420-21050

main85420-20140iCT216,ST215..4FC..(E,G,GT)199708-199712

sub85420-21070

main85420-20160iAT211..4FC199708-199809

sub85420-21110

main85420-21010iAT211,ST210..4FC..(E,G)199809-200209

main85420-21040iAT211,ST210..4FC..(E,G)199809-200209

main85420-21060iST210199809-199912

main85420-21070iST210..GT;CT216,ST215..4FC..(E,G,GT)199712-200209

main85420-21090iST210..GT;CT216,ST215..4FC..(E,G,GT)199712-200209

main85420-21100iST210..GT;CT216,ST215..4FC..(E,G,GT)199712-200209

main85420-21110iAT211..4FC199809-200209

main85420-30200iCT216,ST215..4FC..(E,G,GT)199708-199712

sub85420-21090

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iAT211,CT216,ST21#..4FC..(E,G,GT)199708

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-20010iAT211..4FC199802

sub89413-20011

main89413-32010iAT211..4FC199708-199801

sub89413-32011

9030111008

main90301-11008

9030121009

main90301-21009

9161160616

main91611-60616

10 parts on this diagram · 5 diagrams in section
