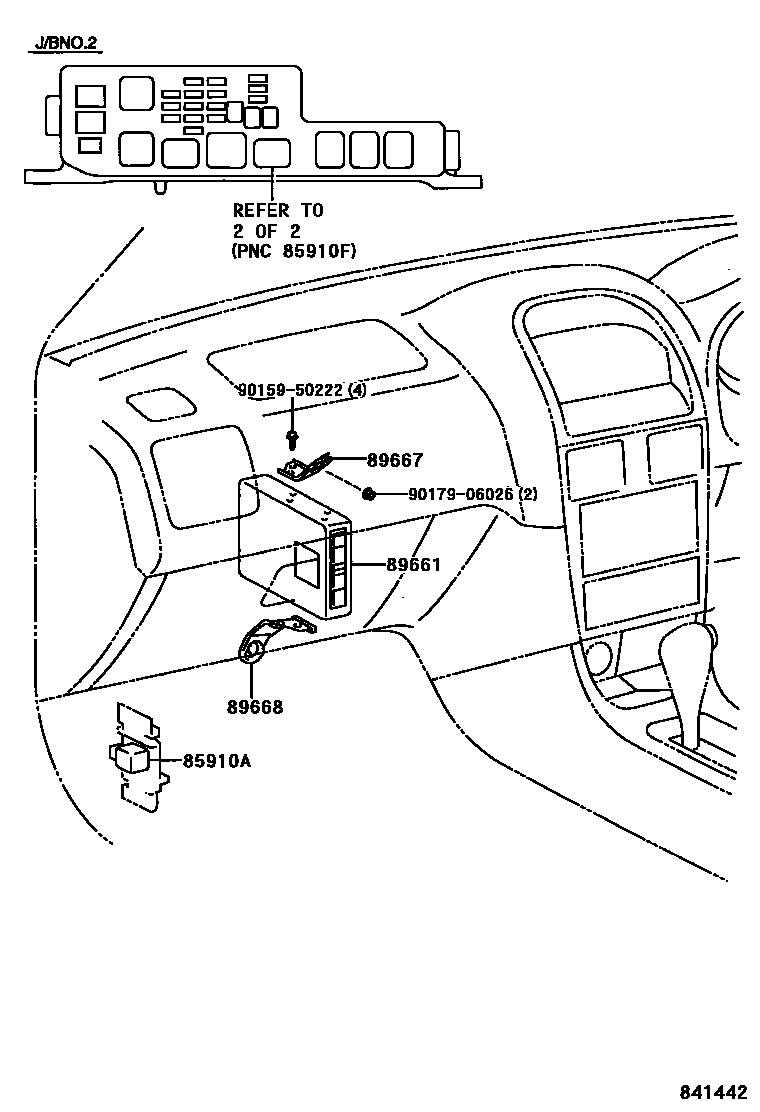

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iAT211,ST21#199708-199806

main90987-02012iAT211,ST21#199806-200111

main90987-02015iAT211,ST21#199806-200002

main90987-02022iAT211,ST21#200111

89661COMPUTER, ENGINE CONTROL

main89661-21090iST210..GT199912

main89661-21210iAT211..5F199708

main89661-21220iAT211..5F199708

main89661-21230iAT211..4FC199708

main89661-21240iAT211..4FC199708

main89661-21250iST210..E,G199708

main89661-21270iST215..5F..(E,G)199708

main89661-21280iST215..4FC..(E,G)199708

main89661-21310iST215..GT199708

main89661-21320iST215..5F..GTT199708

main89661-21330iST215..4FC..GTT199711

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-20380iAT211,ST21#199708-199710

main89667-21020iST21#..GT,GTT199710

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-20340iAT211,ST21#199708-199710

main89668-21020iST21#..GT,GTT199710

9015950222

main90159-50222

9017906026

main90179-06026

6 parts on this diagram · 3 diagrams in section
