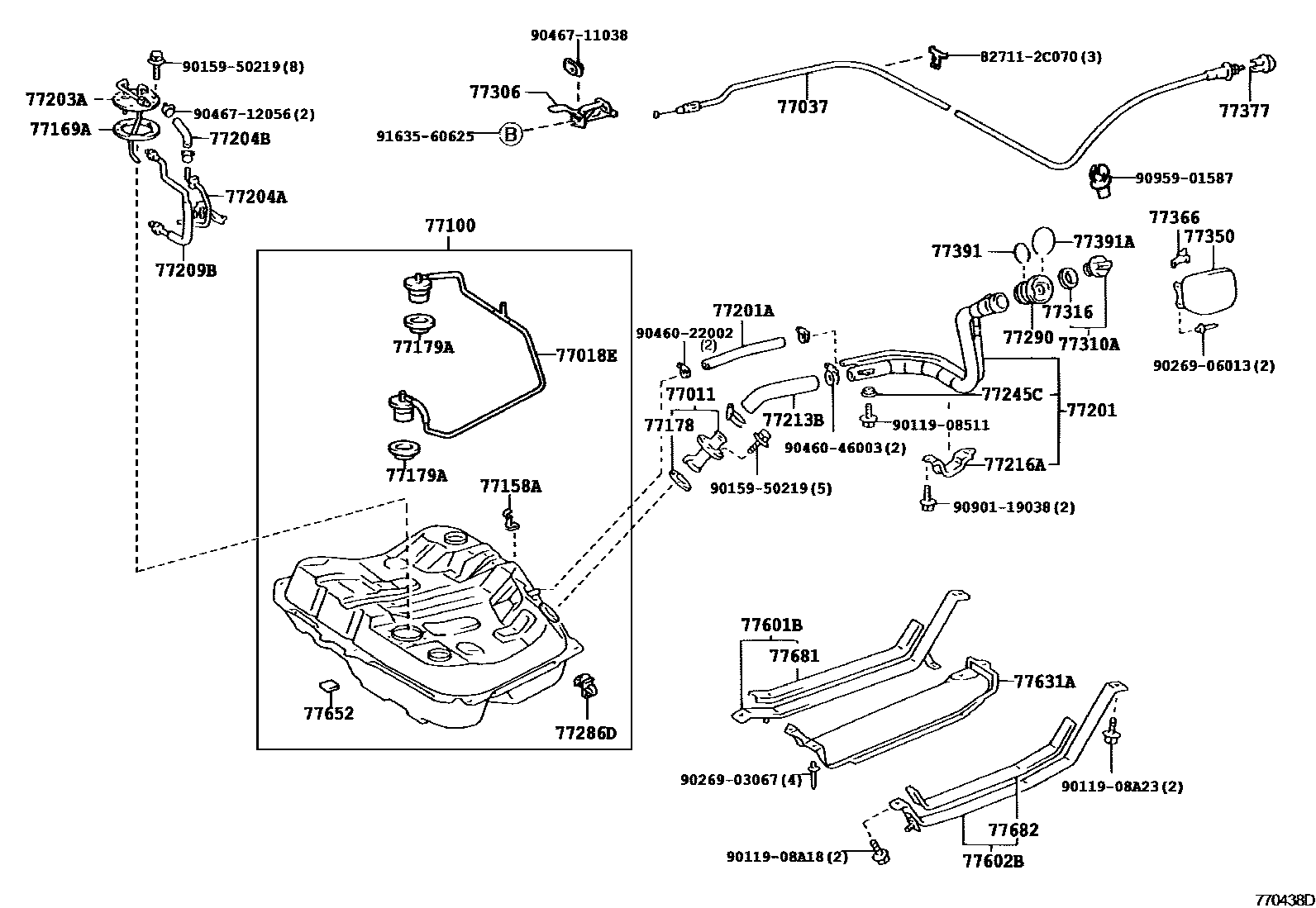

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-20100iAT211,CT216,ST21#199708

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-20140iAT211,ST210199708

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-21010iAT211,CT216,ST21#199708

77100TANK ASSY, FUEL

main77001-20740iAT211,ST210199708

main77001-21903iCT216,ST215199708

77158ASUPPORT, TANK SUCTION TUBE

main77158-20020iAT211,ST210199708

77169AGASKET, FUEL SUCTION TUBE SET

main77169-20050iAT211,ST210199708

main77169-60010iCT216,ST215199708

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iAT211,CT216,ST21#199708

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-33010iAT211,CT216,ST21#199708

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-21080iAT211,ST210199708

main77201-21090iCT216,ST215199708

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77019-21060iCT216,ST215199708

main90445-22036iAT211,ST210199708

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-20150iAT211,ST210199708-199912

sub77203-21100

main77203-21050iST215..GTT199708

main77203-21060iST215..E,G,GT199708

main77203-21070iST215..GTT199708

main77203-21080iST215..E,G,GT199708

main77203-21100iAT211,ST210199912

77204ATUBE, FUEL TANK RETURN

main77204-20090iAT211,ST210199708

main77204-21080iST215199708

main77204-21090iCT216199708

77204BHOSE, FUEL(FOR FUEL RETURN)

main95333-06020iAT211,ST210199708

sub95337-06020

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-20110iAT211,ST210199708

main77209-20120iST215199708

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-20150iAT211,ST210199708

main77213-21010iCT216,ST215199708

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77104-20040iCT216,ST215199708

main77216-20180iAT211,ST210199708

77245CSUPPORT, FUEL TANK

main77245-20120iAT211,CT216,ST21#199708

77286DCLAMP, FUEL TUBE, NO.2

main77286-20100iAT211,ST210199708

main77286-21020iST215199708-199904

main77286-21021iST215199904

main77286-21040iCT216199708

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-21030iAT211,CT216,ST21#199708

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-21010iAT211,CT216,ST21#199708

77310ACAP ASSY, FUEL TANK

main77310-12150iCT216199803

main77310-16011iAT211,ST21#199708-199803

sub77310-12140

main77310-32011iCT216199708-199803

main77310-48010iAT211,ST21#199803

77316GASKET, FUEL TANK CAP

main77316-16010iAT211,CT216,ST21#199708

77350LID ASSY, FUEL FILLER OPENING

main77350-21050iAT211,CT216,ST21#199708

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-12080iAT211,CT216,ST21#199708

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iAT211,CT216,ST21#199708

77391RING, FUEL INLET BOX

main77391-12020iAT211,CT216,ST21#199708

77391ARING, FUEL INLET BOX

main77391-20030iAT211,CT216,ST21#199708

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-20220iAT211,ST210199708

main77601-21020iCT216,ST215199708

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-20140iAT211,ST210199708

main77602-21020iCT216,ST215199708

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77606-21010iCT216,ST215199708

main77631-20090iAT211,ST210199708

77652CUSHION, FUEL TANK, NO.1

main77651-20090iAT211,ST210199708-200007

77681SEAT, FUEL TANK BAND, RH

main77681-32060iAT211,CT216,ST21#199708

77682SEAT, FUEL TANK BAND, LH

main77681-32060iAT211,CT216,ST21#199708

827112C070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C070

9011908511

main90119-08511

9011908A18

main90119-08A18

9011908A23

main90119-08A23

9015950219

main90159-50219

9026903067

main90269-03067

9026906013

main90269-06013

9046022002

main90460-22002

9046046003

main90460-46003

9046711038

main90467-11038

9046712056

main90467-12056

9090119038

main90901-19038

9095901587

main90959-01587

9163560625

main91635-60625

47 parts on this diagram · 5 diagrams in section
