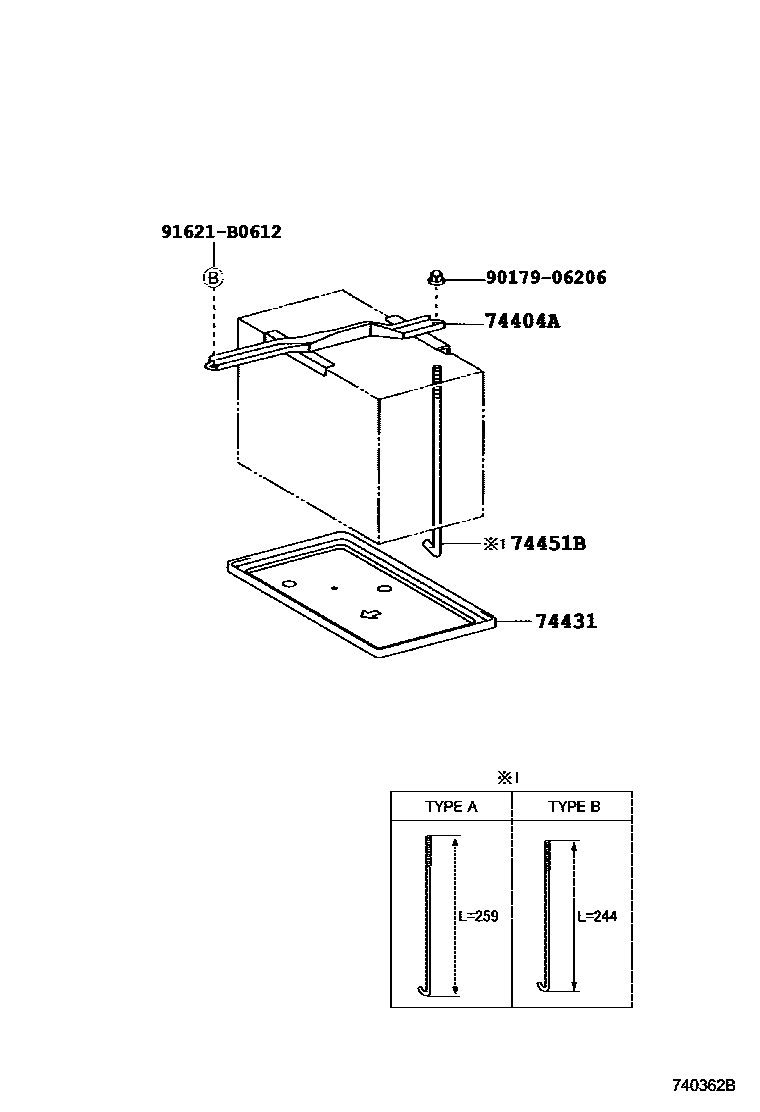

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-21010iAT211,ST21#199708

main74404-21020iCT216199708

74431TRAY, BATTERY

main74431-20080iAT211;ST215..5F..(E,G)199708

sub74431-14050

main74431-20090iST210..GT;ST215..4FC..GTT199711

main74431-20090iST215..E,G,GT;ST215..5F..GTT;AT211,ST210..E,G199708

main74431-20100iCT216199708

74451BBOLT, BATTERY CLAMP

main74451-32070iAT211,CT216,ST21#199708-200008

main74451-32071iAT211,CT216,ST21#200008

sub74451-58011

9017906206

main90179-06206

91621B0612

main91621-B0612

5 parts on this diagram · 1 diagram in section
