SEAT BELT & CHILD RESTRAINT SEAT

0001 1���� 0002 1��

73178ACAP, SEAT BELT ANCHOR COVER

main73178-21010-B0iAT211,CT216,ST21#199708-199912

MD.CHARCOAL,TRIM1#

main73178-33020-B1iAT211,CT216,ST21#199912

MD.CHARCOAL,TRIM2#

sub73178-33020

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-21010-B0iAT211,CT216,ST21#199708-199912

MD.CHARCOAL,TRIM1#

main73200-21010-B0iAT211,CT216,ST21#199912

MD.CHARCOAL,TRIM2#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-21060-B0iST21#..G,GT,GTT199708-199912

SHADOW GRAY,TRIM1#

main73210-21070-B0iAT211,CT216,ST21#..E199708-199912

SHADOW GRAY,TRIM1#

main73210-21100-C0iST21#..G,GT,GTT199912

BLACK,TRIM2#

main73210-21110-C0iAT211,CT216,ST21#..E199912

BLACK,TRIM2#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-21050-B0iAT211,CT216,ST21#199708-199912

SHADOW GRAY,TRIM1#

main73220-21080-C0iAT211,CT216,ST21#199912

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-20780-B0iAT211,CT216,ST21#..E199708-199912

SHADOW GRAY,TRIM1#

main73230-20780-C0iAT211,CT216,ST21#..E199912

BLACK,TRIM2#

main73230-21010-B0iST21#..G,GT,GTT199708-199912

SHADOW GRAY,TRIM1#

main73230-21010-C0iST21#..G,GT,GTT199912

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-33010-C0iAT211,CT216,ST21#199912

BLACK,TRIM2#

sub73233-33010

main73233-33010-C0iAT211,CT216,ST21#199708-199912

BLACK,TRIM1#

sub73233-33010

73237ACOVER, SHOULDER BELT ANCHOR

main73237-21010-B0iAT211,CT216,ST21#199708-199912

MD.CHARCOAL,TRIM1#

sub73237-21010

main73237-21010-B0iAT211,CT216,ST21#199912

MD.CHARCOAL,TRIM2#

sub73237-21010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-21020-B0iAT211,CT216,ST21#199708-199912

SHADOW GRAY,TRIM1#

main73230-21020-C0iAT211,CT216,ST21#199912

BLACK,TRIM2#

9010511036

main90105-11036

9010911027

main90109-11027

9010911030

main90109-11030

9090119040

main90901-19040

9151161025

main91511-61025

91511B0614

main91511-B0614

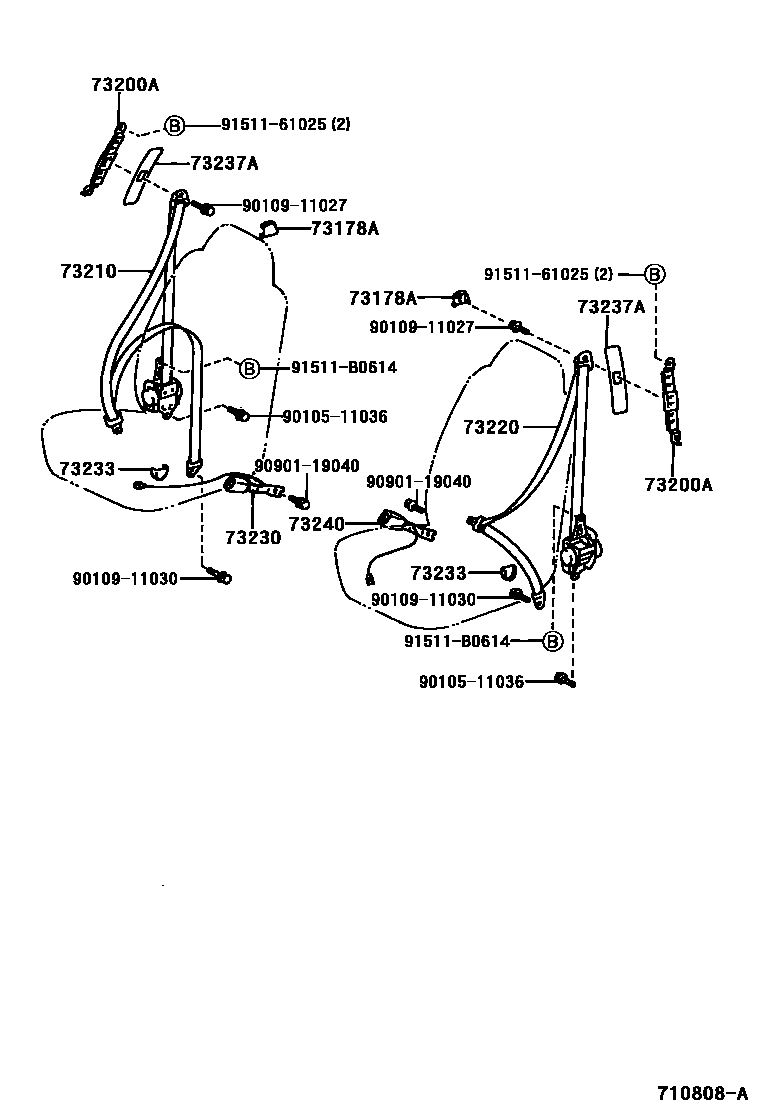

14 parts on this diagram · 2 diagrams in section
