BACK DOOR PANEL & GLASS

0001 1 0002 1

64745JCOVER, REAR COMBINATION LAMP SERVICE, RH

main64745-21010-B0iAT211,CT216,ST21#199708-199912

SHADOW GRAY,TRIM1#

sub64745-21010

main64745-21010-C0iAT211,CT216,ST21#199912

BLACK,TRIM2#

sub64745-21010

64746GCOVER, REAR COMBINATION LAMP SERVICE, LH

main64746-21010-B0iAT211,CT216,ST21#199708-199912

SHADOW GRAY,TRIM1#

sub64746-21010

main64746-21010-C0iAT211,CT216,ST21#199912

BLACK,TRIM2#

sub64746-21010

64795ATRIM, BACK WINDOW OPENING

main64795-21030iAT211,CT216,ST21#199708

67750BOARD ASSY, BACK DOOR TRIM

main67750-21030-B0iAT211,CT216,ST21#199708-199909

SHADOW GRAY,TRIM1#

sub67750-21040

main67750-21040-B0iAT211,CT216,ST21#199909-199912

SHADOW GRAY,TRIM1#

sub67750-21040

main67750-21040-C0iAT211,CT216,ST21#199912

BLACK,TRIM2#

sub67750-21040

67765ACOVER, BACK DOOR SERVICE HOLE, NO.1

main67765-21010-B0iAT211,CT216,ST21#199708-199912

SHADOW GRAY,TRIM1#

sub67765-21010

main67765-21010-C0iAT211,CT216,ST21#199912

BLACK,TRIM2#

sub67765-21010

67766COVER, BACK DOOR SERVICE HOLE, NO.2

main67766-21010-B0iAT211,CT216,ST21#199708-199912

SHADOW GRAY,TRIM1#

sub67766-21010

main67766-21010-C0iAT211,CT216,ST21#199912

BLACK,TRIM2#

sub67766-21010

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

9046710151

main90467-10151

9356054012

main93560-54012

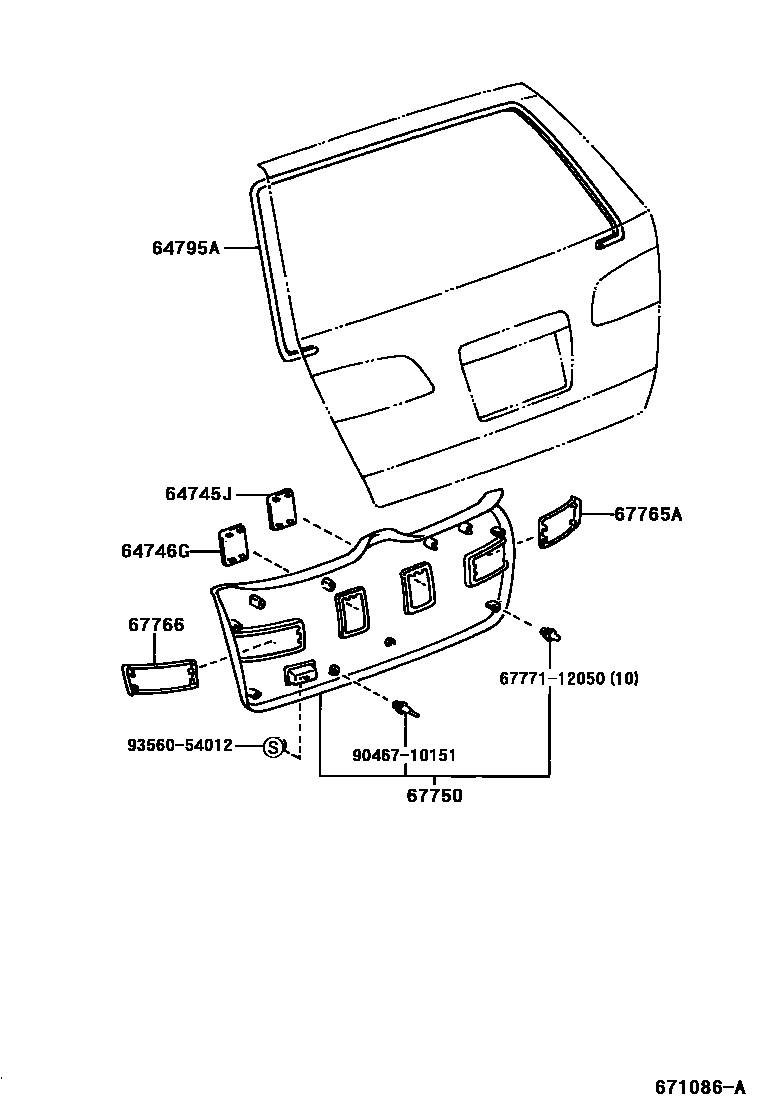

9 parts on this diagram · 2 diagrams in section
