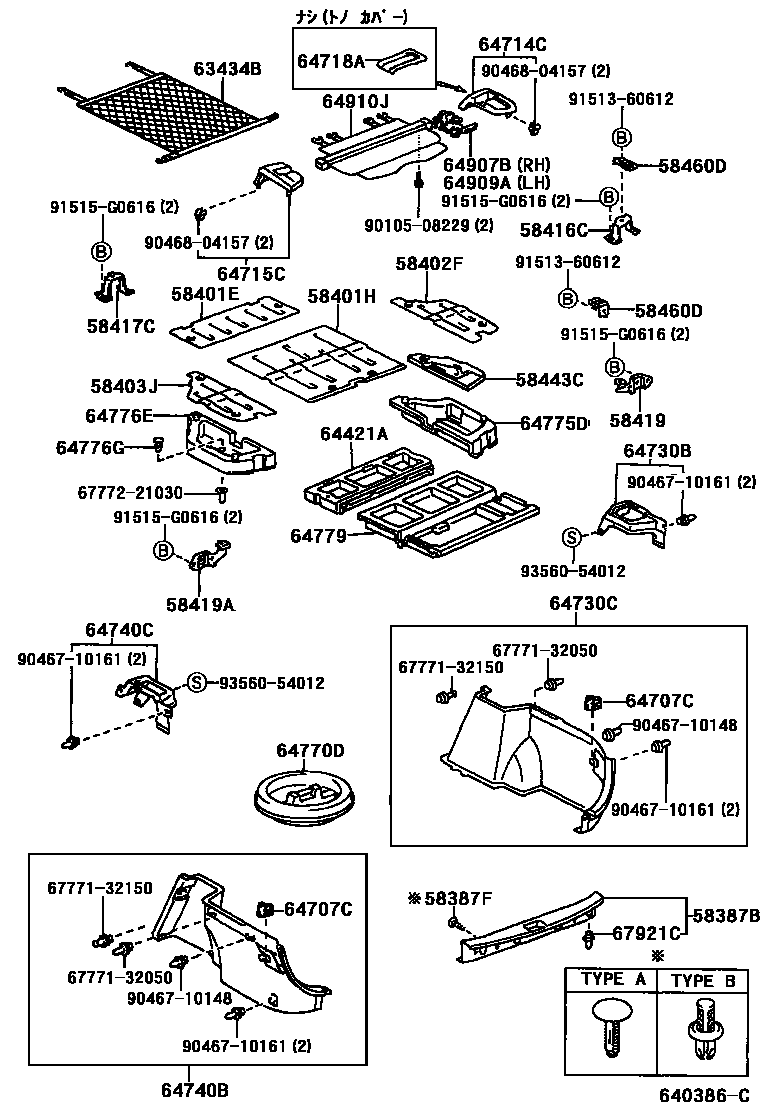

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
58401EBOARD SUB-ASSY, DECK
58401HBOARD SUB-ASSY, REAR FLOOR, NO.1
58416CBRACKET, DECK BOARD, NO.1 RH
58417CBRACKET, DECK BOARD, NO.1 LH
58419BRACKET, DECK BOARD, NO.2
58419ABRACKET, DECK BOARD, NO.3
58443CCUSHION, DECK COMPARTMENT BOX
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
63434BNET, ROOM RACK
64707CKNOB, JACK COVER
64714CCOVER, DECK SIDE TRIM, RH
64715CCOVER, DECK SIDE TRIM, LH
64718ACOVER, DECK TRIM SERVICE HOLE
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
64730BPANEL ASSY, DECK TRIM SIDE, RH
64730CBOARD, DECK TRIM SIDE, RH
64740BBOARD, DECK TRIM SIDE, LH
BLACK,TRIM2#
64740CPANEL ASSY, DECK TRIM SIDE, LH
64770DCOVER ASSY, SPARE WHEEL
64775DGUARD, SPARE WHEEL
64776EGUARD, SPARE WHEEL, NO.2
64776GCLIP(FOR SPARE WHEEL GUARD)
64779TRAY, SPARE WHEEL COVER
64907BSTOPPER SUB-ASSY, TONNEAU COVER, RH
64909ASTOPPER SUB-ASSY, TONNEAU COVER, LH
64910JCOVER ASSY, TONNEAU
67921CRETAINER, DECK TRIM SIDE BOARD
6777132050WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32050
6777132150WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32150
6777221030WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-21030
9010508229
main90105-08229
9046710148
main90467-10148
9046710161
main90467-10161
9046804157
main90468-04157
9151360612
main91513-60612
91515G0616
main91515-G0616
9356054012
main93560-54012
41 parts on this diagram · 1 diagram in section
