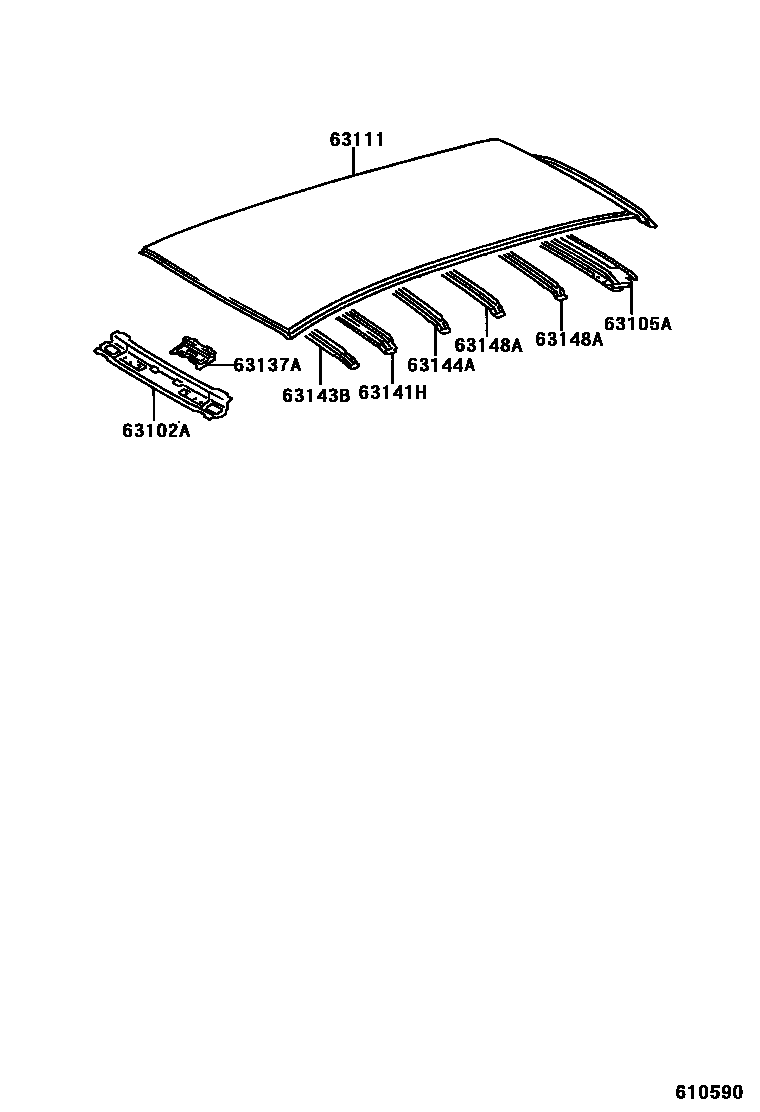

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1��(�-� �-�) 0003 1����� 0004 1��(�-� �-�) 0005 1����� 0006 1��(�-� �-�) 0007 1�����

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63132-21010iAT211,CT216,ST21#199708

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-21030iAT211,CT216,ST21#199708

63111PANEL, ROOF

main63111-21100iST21#..G,GT,GTT199708-199912

main63111-21110iAT211,CT216,ST21#199708

main63111-21120iAT211,CT216,ST21#199708

63137ABRACKET, DOME LAMP, NO.1

main63137-20090iAT211,CT216,ST21#199708

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63103-21020iAT211,CT216,ST21#199708

main63103-21030iST21#..G,GT,GTT199708-199912

main63141-21040iAT211,CT216,ST21#199708

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-21040iAT211,CT216,ST21#199708

main63143-21050iST21#..G,GT,GTT199708-199912

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-21020iST21#..G,GT,GTT199708-199912

main63144-21030iAT211,CT216,ST21#199708

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-21030iAT211,CT216,ST21#199708

8 parts on this diagram · 7 diagrams in section
