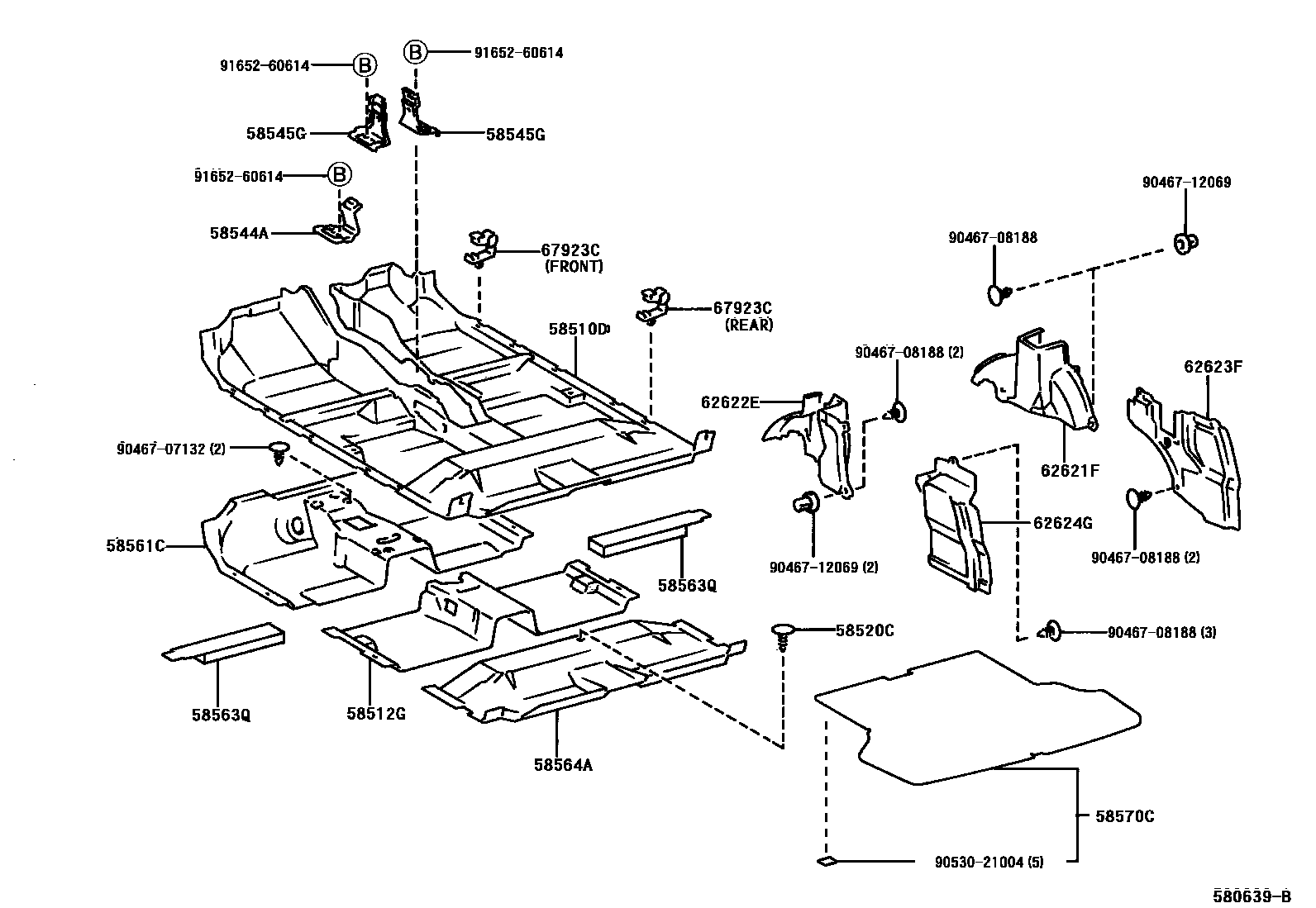

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-21370-B0iAT211,CT216,ST21#199708-199912

DARK CHARCOAL,TRIM1#

sub58510-21370

main58510-21370-B1iAT211,CT216,ST21#199912

DARK CHARCOAL,TRIM2#

sub58510-21370

main58510-21380-B0iAT211,CT216,ST21#199708-199912

main58510-21380-B1iAT211,CT216,ST21#199912

58512GSILENCER, FRONT FLOOR, NO.2

main58512-20280iAT211,CT216,ST21#199708-199711

sub58512-20290

main58512-20290iAT211,CT216,ST21#199711

sub58512-20291

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-P0iAT211,CT216,ST21#199708-199912

GRAY,TRIM1#

sub90467-06016

sub90467-07049

main90467-06016-P0iAT211,CT216,ST21#199912

GRAY,TRIM2#

sub90467-06016

sub90467-07049

58544ABRACKET, FLOOR CARPET, LH

main58544-20060iAT211,CT216,ST21#199708

58545GBRACKET, FLOOR CARPET, NO.2 RH

main58545-20030iAT211,CT216,ST21#199708

58561CSILENCER, FRONT FLOOR, NO.1

main58561-20010iAT211,CT216,ST21#199708

sub58561-20011

58563QSILENCER, FRONT FLOOR, NO.3

main58563-20020iAT211,CT216,ST21#199708-199712

main58563-21010iAT211,CT216,ST21#199712

58564ASILENCER, FRONT FLOOR, NO.4

main58564-21010iAT211,CT216,ST21#199708

58570CCARPET ASSY, REAR FLOOR

main58571-21070-B0iAT211,CT216,ST21#199708-199912

SHADOW GRAY,TRIM1#

main58571-21070-C0iAT211,CT216,ST21#199912

BLACK,TRIM2#

62621FPAD, QUARTER WHEEL HOUSE, INNER FRONT RH

main62621-21020iAT211,CT216,ST21#199708

62622EPAD, QUARTER WHEEL HOUSE, INNER FRONT LH

main62622-21020iAT211,CT216,ST21#199708

62623FPAD, QUARTER WHEEL HOUSE, INNER REAR RH

main62623-21010iAT211,CT216,ST21#199708

62624GPAD, QUARTER WHEEL HOUSE, INNER REAR LH

main62624-21010iAT211,CT216,ST21#199708

67923CCLAMP, DOOR SCUFF PLATE, NO.1

main67923-20040iAT211,CT216,ST21#199708

main67924-21010iAT211,CT216,ST21#199708

9046707132

main90467-07132

9046708188

main90467-08188

9046712069

main90467-12069

9053021004

main90530-21004

9165260614

main91652-60614

19 parts on this diagram · 1 diagram in section
