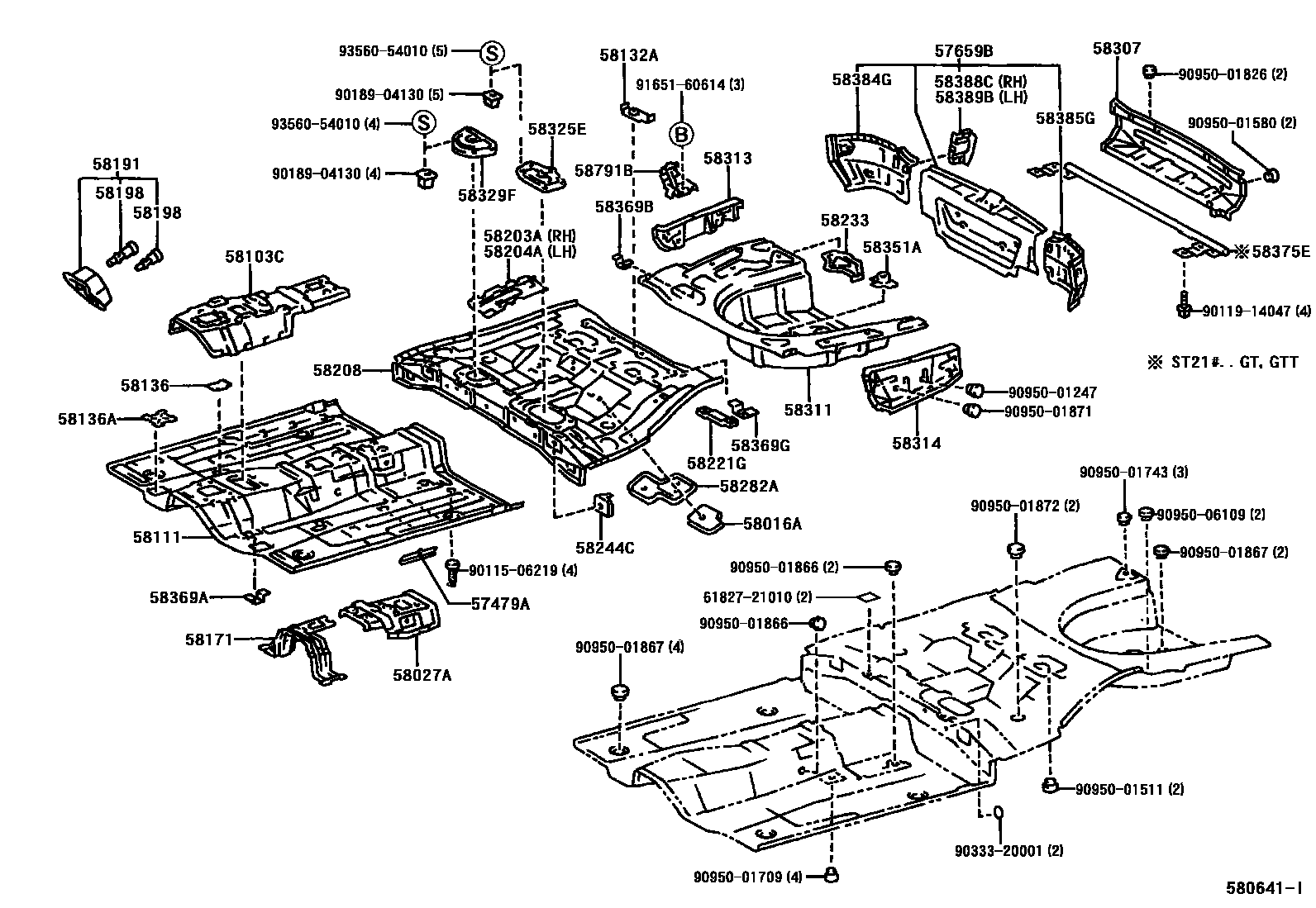

FLOOR PAN & LOWER BACK PANEL
57479AREINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, LH
57659BMEMBER, REAR FLOOR CROSS, REAR INNER
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58103CREINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT
58111PAN, FRONT FLOOR
58132ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58136COVER, FRONT FLOOR HOLE
58136ACOVER, FRONT FLOOR SERVICE HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58208PAN, CENTER FLOOR
58221GREINFORCEMENT, FLOOR PANEL, FRONT RH
58233BRACKET, EXHAUST PIPE MOUNTING
58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58351ABRACKET, SPARE WHEEL CARRIER
58369ABRACKET, FUEL TUBE, NO.3
58369BBRACKET, FUEL TUBE, NO.3
58369GBRACKET, FUEL TUBE, NO.3
58375EREINFORCEMENT, BODY LOWER BACK PANEL
58384GGUSSET, LOWER BACK, UPPER RH
58385GGUSSET, LOWER BACK, UPPER LH
58388CPLATE, BODY LOWER BACK REINFORCEMENT, RH
58389BPLATE, BODY LOWER BACK REINFORCEMENT, LH
58791BCARRIER, JACK
6182721010PLATE, QUARTER INNER PANEL, LOWER REAR RH
9011506219
9011914047
9018904130
9033320001
9095001247
9095001511
9095001580
9095001709
9095001743
9095001826
9095001866
9095001867
9095001871
9095001872
9095006109
9165160614
9356054010
53 parts on this diagram · 1 diagram in section
