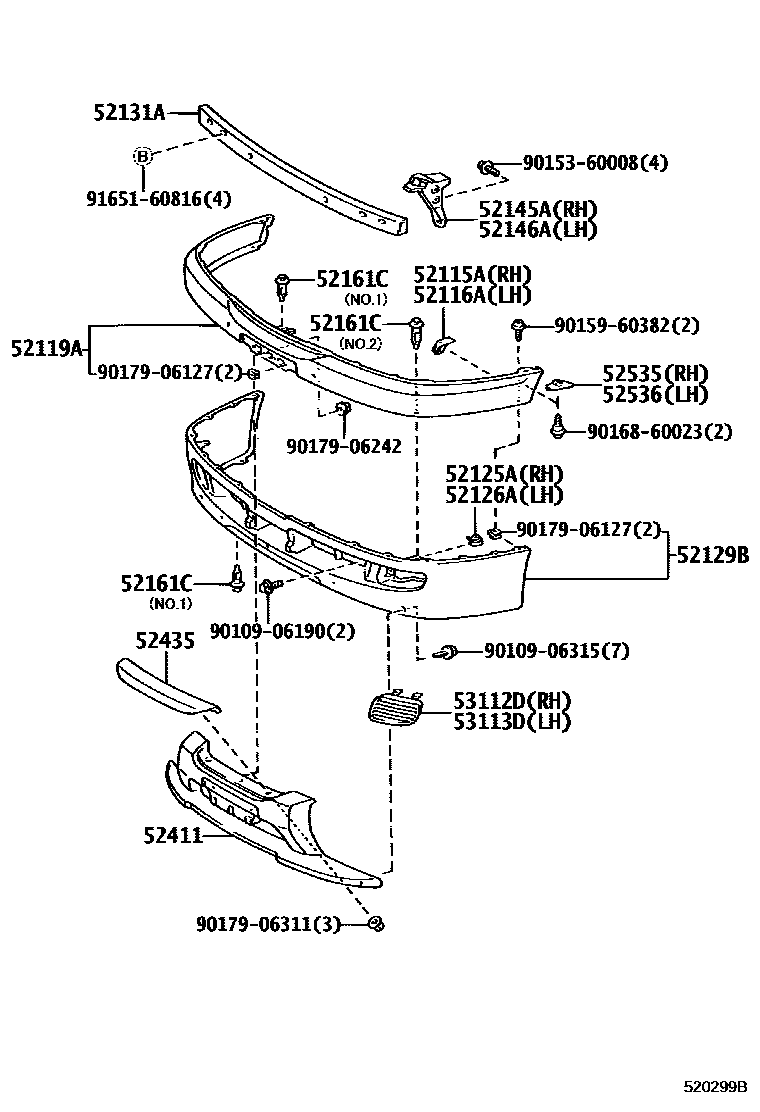

FRONT BUMPER & BUMPER STAY
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
sub52119-21921
sub52119-21909
sub52119-21909
sub52119-21909
sub52119-21909
sub52119-21909
sub52119-21909
sub52119-21909
sub52119-21910
sub52119-21910
sub52119-21910
sub52119-21910
sub52119-21910
sub52119-21910
sub52119-21910
52125ABRACKET, FOG LAMP MOUNTING, RH
52126ABRACKET, FOG LAMP MOUNTING, LH
52129BCOVER, FRONT BUMPER, LOWER
sub52129-21900
sub52129-21900
sub52129-21900
sub52129-21900
sub52129-21902
sub52129-21902
sub52129-21902
sub52129-21902
52145ASTAY, FRONT BUMPER, NO.2 RH
52146ASTAY, FRONT BUMPER, NO.2 LH
52161CPIECE, FRONT BUMPER
52411GUARD, FRONT BUMPER
SUPER WHITE 2,040
GRAY M.M.,2DB ,2DP ,2DQ
SILVER ME,199
DK.BLUE M.M.,8L3
SUPER WHITE 2,040
SU. WHITE PM.,051
SILVER ME.,199
SILVER ME.,1C0
BLACK MC.,209
RED MC.,3M8
DK.BLUE MC.,8P4
52435GARNISH, FRONT BUMPER GUARD
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
53112DGRILLE, RADIATOR, LOWER RH
53113DGRILLE, RADIATOR, LOWER LH
9010906190
main90109-06190
9010906315
main90109-06315
9015360008
main90153-60008
9015960382
main90159-60382
9016860023
main90168-60023
9017906127
main90179-06127
9017906242
main90179-06242
9017906311
main90179-06311
9165160816
main91651-60816
25 parts on this diagram · 2 diagrams in section
