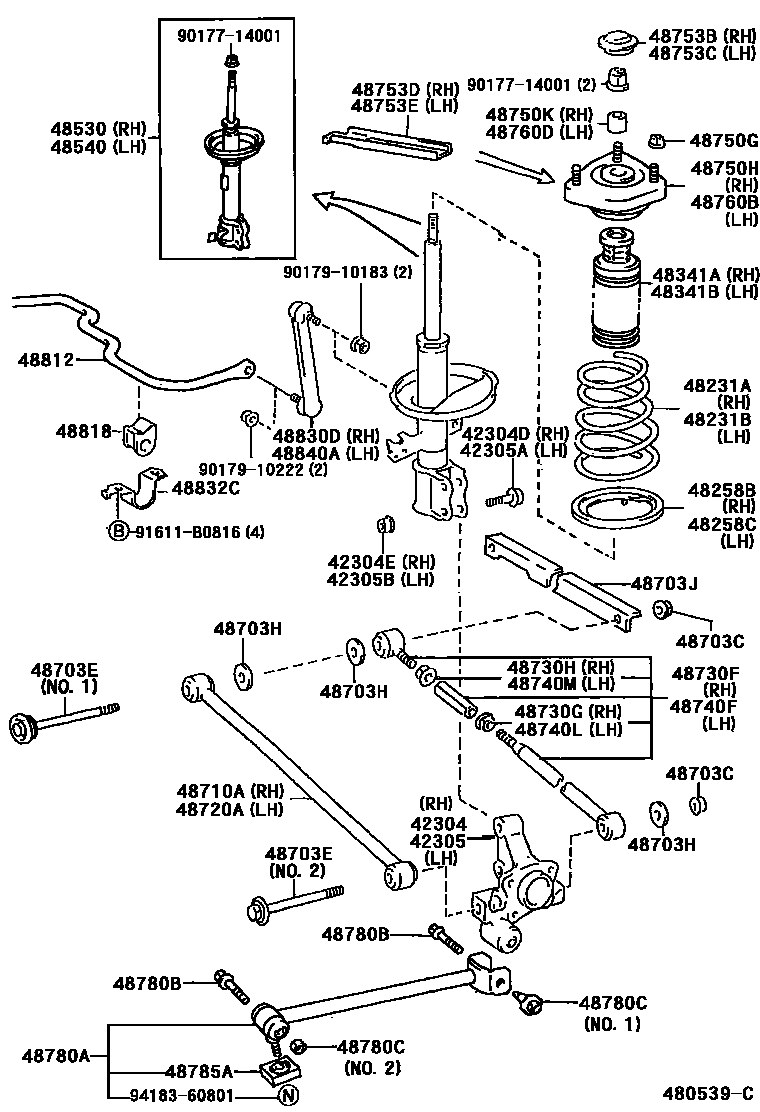

REAR SPRING & SHOCK ABSORBER
42304DBOLT (FOR REAR AXLE CARRIER RH)
42304ENUT (FOR REAR AXLE CARRIER RH)
42305ABOLT (FOR REAR AXLE CARRIER LH)
42305BNUT (FOR REAR AXLE CARRIER LH)
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48703CNUT(FOR REAR SUSPENSION ARM)
48703HWASHER, NO.1(FOR REAR SUSPENSION ARM)
48703JWASHER, NO.2(FOR REAR SUSPENSION ARM)
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
TWISTER *(G)
TWISTER *(G)
48730GNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH)
48730HNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH)
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48740LNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH)
48740MNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH)
48750GNUT(FOR REAR SUSPENSION SUPPORT)
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48753DCOVER, REAR SUSPENSION SUPOPORT, NO.2 RH
48753ECOVER, REAR SUSPENSION SUPOPORT, NO.2 LH
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48780AROD ASSY, STRUT, REAR
48780BBOLT(FOR STRUT ROD)
48780CNUT(FOR STRUT ROD)
48785ADAMPER, STRUD ROD DYNAMIC
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48830DLINK ASSY, REAR STABILIZER, RH
48832CBRACKET, REAR STABILIZER BAR, NO.3
48840ALINK ASSY, REAR STABILIZER, LH
9017714001
main90177-14001
9017910183
main90179-10183
9017910222
main90179-10222
91611B0816
main91611-B0816
9418360801
main94183-60801
49 parts on this diagram · 3 diagrams in section
