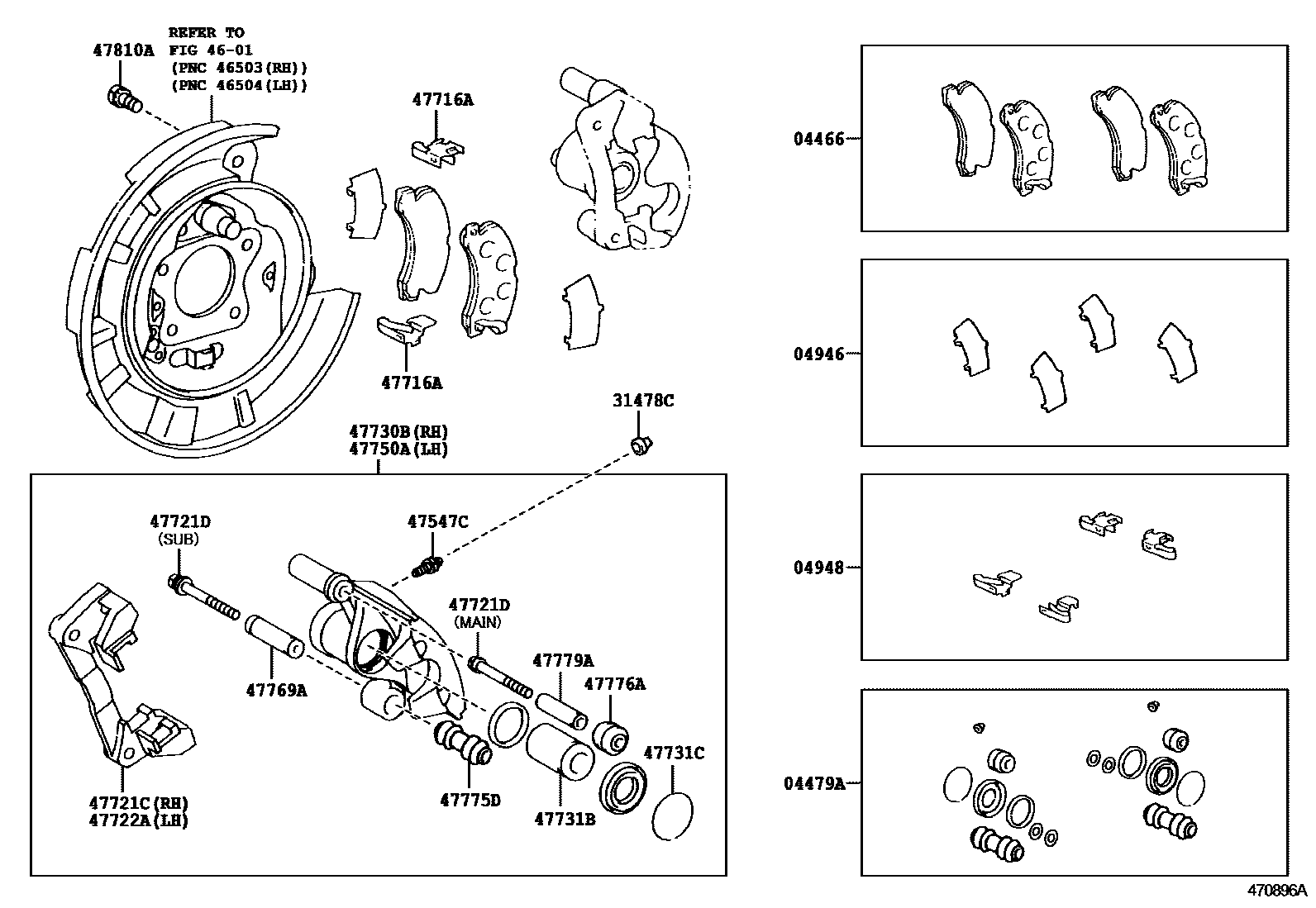

REAR DISC BRAKE CALIPER & DUST COVER
04466PAD KIT, DISC BRAKE, REAR
04479ACYLINDER KIT, DISC BRAKE, REAR
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04948FITTING KIT, DISC BRAKE, REAR
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
4601
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH
47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH
47730BCYLINDER ASSY, REAR DISC BRAKE, RH
47731BPISTON, REAR DISC BRAKE
47731CRING, SET(FOR REAR DISC BRAKE PISTON)
47750ACYLINDER ASSY, DISC BRAKE, REAR LH
47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)
47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)
47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47810ABOLT, HEXAGON(FOR REAR CALIPER)
20 parts on this diagram · 1 diagram in section
