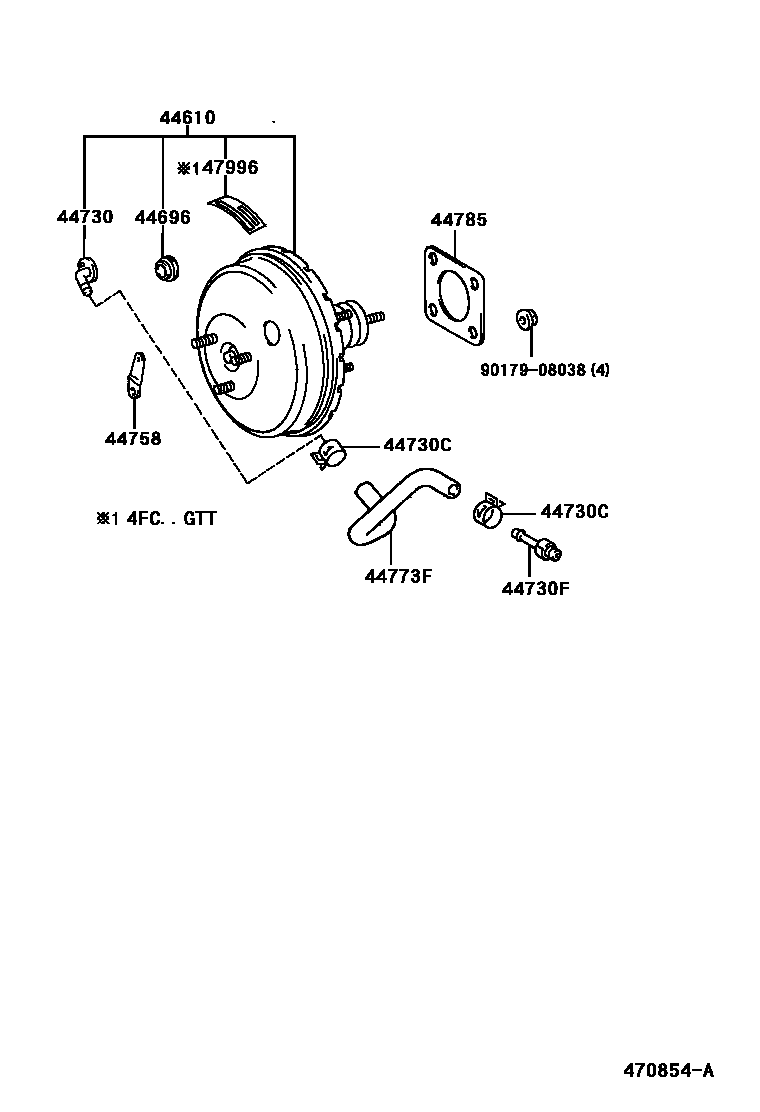

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-21020iST210..E,G199708

main44610-21030iCT216199708

main44610-21040iST215..E,G199708

main44610-21050iST215..GT199708-199912

main44610-21051iST21#..GT199912

main44610-21060iST215..4FC..GTT199711

main44610-21070iAT211199708

main44610-21080iST215..5F..GTT199708

main44610-21080iST215..4FC..GTT199912

44696GROMMET, CHECK VALVE

main90480-24439iST21#199708

main90480-24517iAT211199708

sub90480-24015

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iST21#199708

main44730-28010iAT211199708

main44730-60050iCT216199708

44730CCLIP(FOR VACUUM HOSE)

main90467-16002iAT211,CT216,ST21#199708

sub96134-51500

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51078iST215..GTT199708

main90404-51319iAT211,ST21#..E,G199708

44758BRACKET, VACUUM CHECK VALVE

main44758-20230iST21#..E,G,GTT199708

main44758-20290iAT211;ST21#..GT199708

44773FHOSE, UNION TO CHECK VALVE

main44773-20810iAT211199708

main44773-21020iST21#..GT199708

main44773-21030iST215..GTT199708

main44773-21040iCT216199708

main44773-2B070iST21#..E,G199708

44785GASKET, BRAKE BOOSTER

main44785-20020iAT211,CT216,ST21#199708

47996LABEL, BRAKE BLEED NOTICE

main47996-21010iST215..4FC..GTT199711

9017908038

main90179-08038

10 parts on this diagram · 2 diagrams in section
