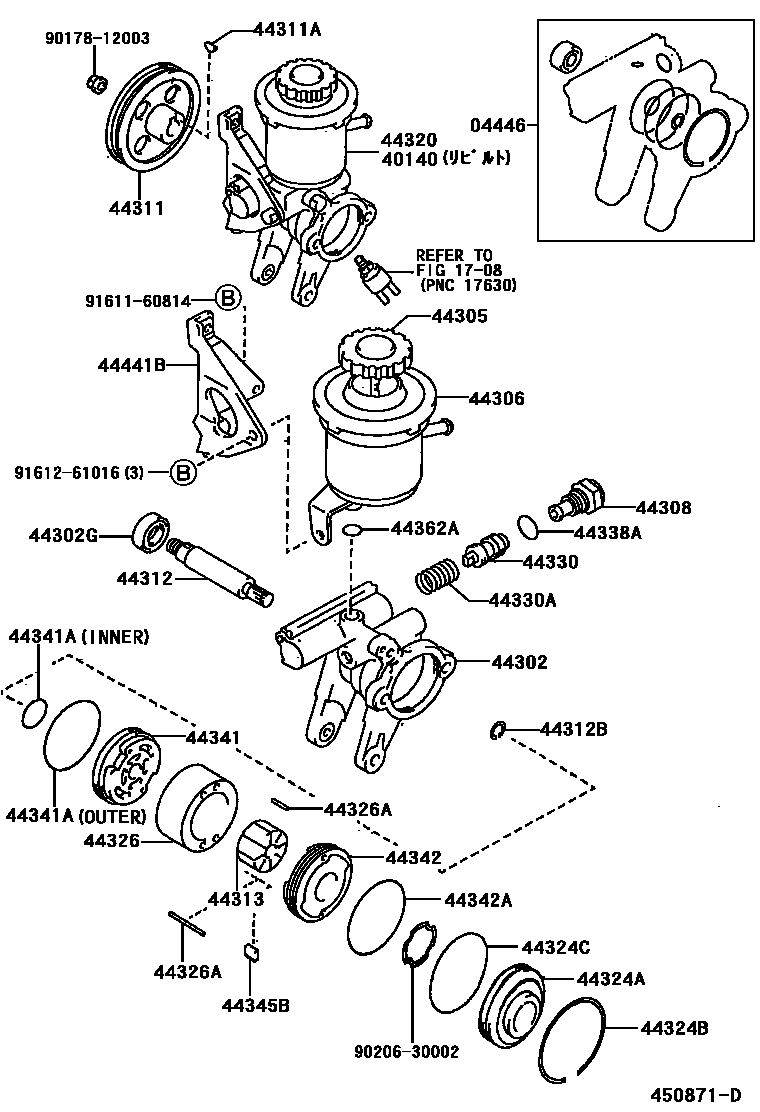

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
1708
40140PUMP ASSY,VANE REBUILT
sub44320-20400
sub44320-20530
sub44320-20590
sub44320-20600
sub44320-20610
sub40140-21011
sub44320-21011
sub44320-21020
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44306RESERVOIR SUB-ASSY, VANE PUMP OIL
44308UNION SUB-ASSY, PRESSURE PORT
44311PULLEY, VANE PUMP
44311AKEY, VANE PUMP PULLEY
44312SHAFT, VANE PUMP
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313ROTOR, VANE PUMP
44324AHOUSING, PUMP, REAR
44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)
44324CRING, O(FOR PUMP HOUSING REAR)
sub90301-53007
44326RING, CAM(FOR VANE PUMP)
44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)
44330VALVE ASSY, FLOW CONTROL
sub44330-35191
sub44330-35201
sub44330-35211
sub44330-35221
sub44330-35231
sub44330-35241
sub44330-32730
sub44330-32740
sub44330-32750
sub44330-32760
sub44330-32770
sub44330-32780
sub44330-35250
sub44330-35260
sub44330-35270
sub44330-35280
sub44330-35290
sub44330-35300
sub44330-32730
sub44330-32740
sub44330-32750
sub44330-32760
sub44330-32770
sub44330-32780
sub44330-35250
sub44330-35260
sub44330-35270
sub44330-35280
sub44330-35290
sub44330-35300
sub44330-32670
sub44330-32680
sub44330-32690
sub44330-32700
sub44330-32710
sub44330-32720
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44338ARING, O(FOR PRESSURE PORT UNION)
sub90301-19018
44341PLATE, VANE PUMP SIDE, FRONT
44342PLATE, VANE PUMP SIDE, REAR
44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)
44345BPLATE, VANE PUMP
44362ARING, O(FOR VANE PUMP OIL RESERVOIR)
44441BBRACKET, PUMP, FRONT
9017812003
main90178-12003
9020630002
main90206-30002
9161160814
main91611-60814
9161261016
main91612-61016
33 parts on this diagram · 3 diagrams in section
