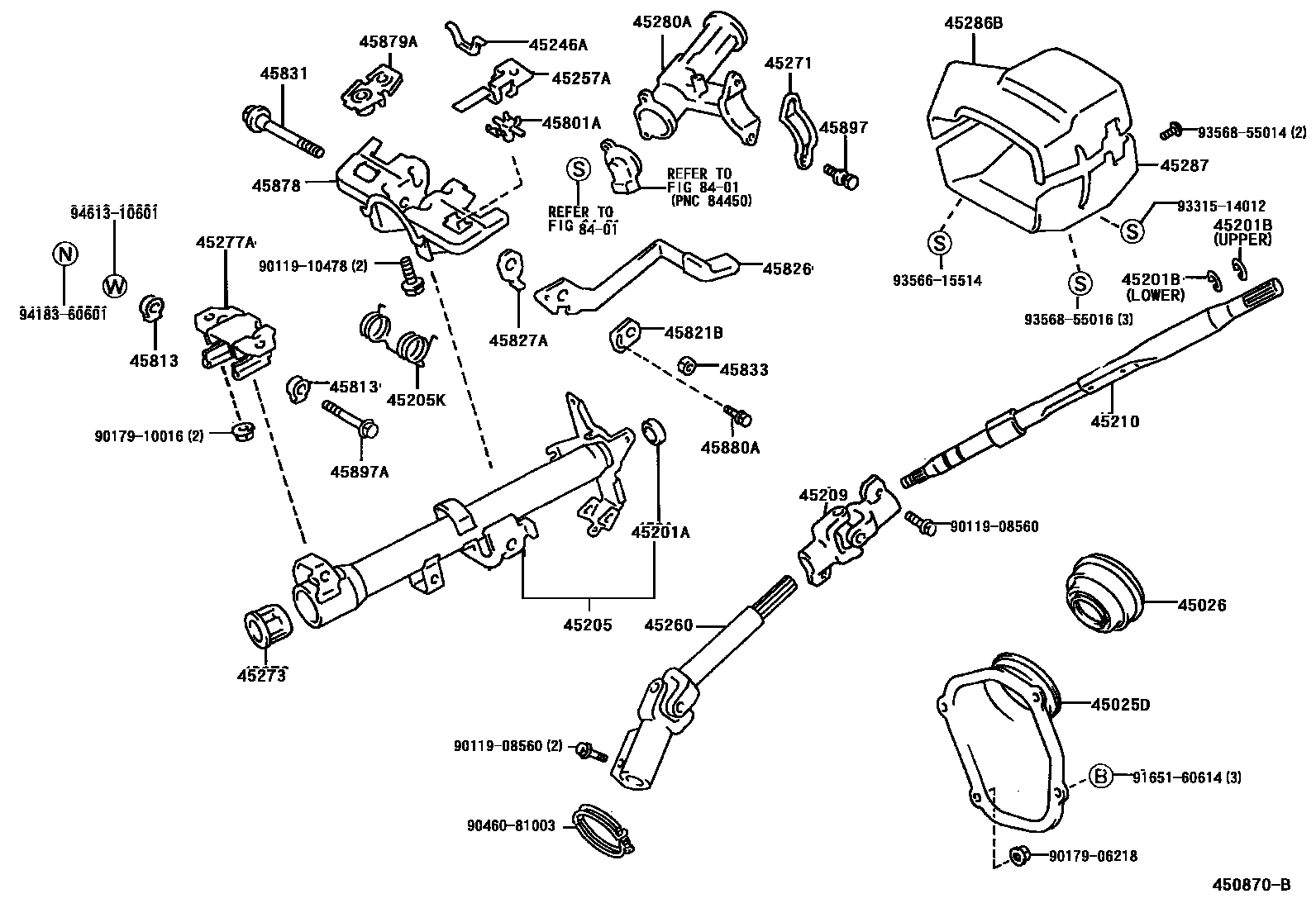

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
45205KSPRING(FOR STEERING COLUMN TUBE)
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
45246AGUIDE, STEERING ENERGY ABSORBING PLATE
45257APLATE, STEERING COLUMN ENERGY ABSORBING
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45277ASUPPORT, TILT STEERING
45286BCOVER, STEERING COLUMN, UPR
45287COVER, STEERING COLUMN, LWR
45801APIN SUB-ASSY, STEERING ENERGY ABSORBING
45813COLLAR, TILT STEERING SUPPORT, NO.1
45821BREINFORCE, TILT STEERING SUPPORT, NO.1
45826LEVER, STEERING TILT
45827ALEVER, STEERING TILT SUB
45831BOLT, TILT LEVER LOCK, NO.1
45833NUT, TILT STEERING ADJUSTING, NO.1
45878BRACKET, STEERING COLUMN UPPER SUPPORT
45879ACAPSULE, BREAK AWAY
45880ABOLT(FOR STEERING TILT LEVER)
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
8401
9011908560
main90119-08560
9011910478
main90119-10478
9017906218
main90179-06218
9017910016
main90179-10016
9046081003
main90460-81003
9165160614
main91651-60614
9331514012
main93315-14012
9356615514
main93566-15514
9356855014
main93568-55014
9356855016
main93568-55016
9418360601
main94183-60601
9461310601
main94613-10601
42 parts on this diagram · 1 diagram in section
