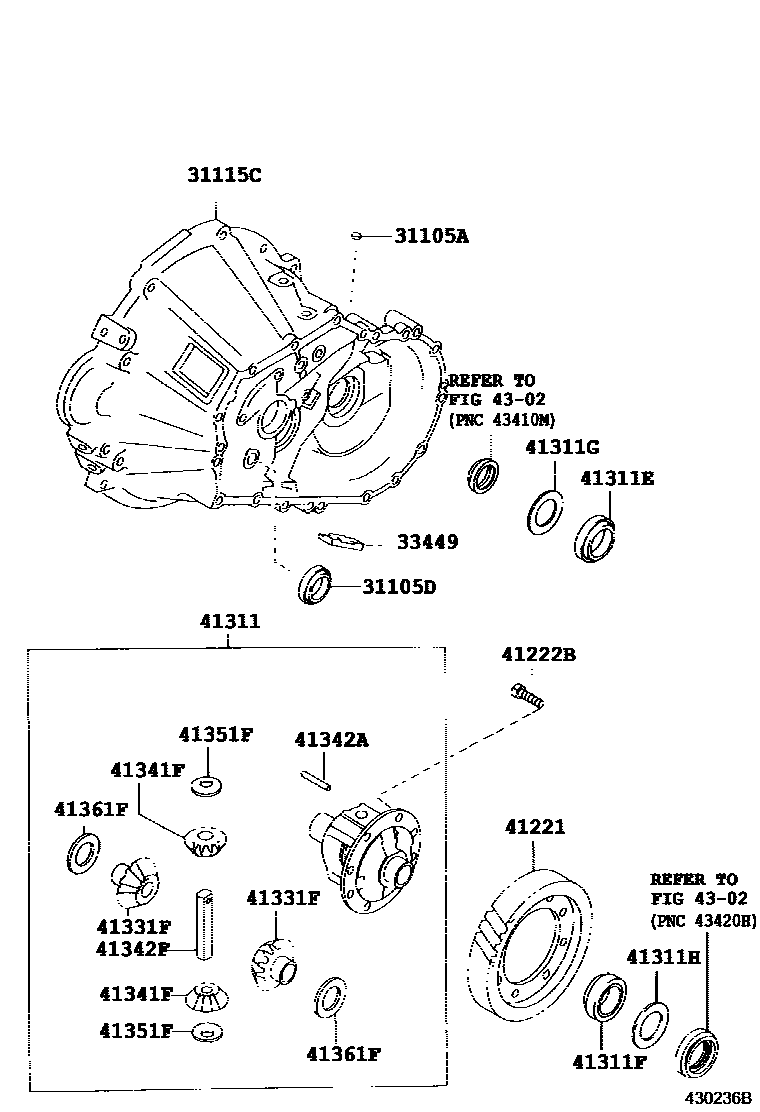

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1C58 0002 1S55F 0003 1E150F 0004 1A245E,A247E 0005 1A241F,A243E,A243F 0007 1U140F

31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)

main90331-08002iAT211..5F199708

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-25011iAT211..5F200201

sub90311-25028

main90311-25016iAT211..5F199708-200201

main90311-30006iST215..5F199708-200209

sub90311-30017

31115CCASE, FRONT TRANSAXLE(MTM)

main31105-21010iST215..5F..(E,G)199708-200209

main31115-16042iAT211..5F199708-200209

main31115-33012iST215..5F..GTT199708-199911

sub31115-33013

main31115-33013iST215..5F..GTT199911-200107

main31115-33014iST215..5F..GTT200107-200209

33449MAGNET, TRANSMISSION

main33449-12020iAT211..5F199708

main33449-20010iST215..5F..GTT199708

main33449-32020iST215..5F..(E,G)199708-200209

41221GEAR, FRONT DIFFERENTIAL RING

main41221-12330iAT211..5F199708-200209

sub41221-52260

main41221-17030iST210..GT199912-200209

main41221-20210iST210..E,G199708-200209

main41221-20230iAT211..4FC199708-200209

main41221-20240iST215..5F..GTT199708-200209

main41221-21040iST215..5F..(E,G)199708-200209

main41221-21060iST215..4FC..GTT199711-200209

sub41211-28H01

main41221-21080iST215..GT199708-200209

main41221-21090iCT216,ST215..4FC..(E,G)199708-200209

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353iAT211,ST210..4FC199708-200209

main90105-11040iAT211,ST215..5F..(E,G)199708-200209

main90105-12150iST215..5F..GTT199708-200209

41311CASE, FRONT DIFFERENTIAL

main41301-12041iAT211..5F199708-200209

main41301-20112iST210199708-200209

main41301-20150iAT211..4FC199708-200209

main41301-21040iST215..5F..(E,G)199708-200209

main41301-21050iCT216,ST215..4FC..(E,G,GT)199708-200209

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-38004iAT211..5F199708-200209

main90366-50045iCT216,ST215..E,G,GT199708-200209

main90366-57001iST215..5F..GTT199708-200209

main90366-62004iST215..4FC..GTT199711-200209

main90368-38010iAT211..4FC199708-200209

main90368-40002iST210199708-200209

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-40064iST215..5F..(E,G)199708-200209

main90366-42001iAT211..4FC199708-200209

main90366-44001iCT216,ST21#..4FC..(E,G,GT)199708-200209

main90366-50014iST215..5F..GTT199708-200209

main90366-50057iST215..4FC..GTT199711-200209

sub04419-33010

sub90366-50106

main90368-38010iAT211..5F199708-200209

41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)

main90201-41012iAT211..5F199708-199908

main90201-41024iAT211..4FC199708-200209

main90560-41003iAT211..5F199908-200209

main90560-54001iCT216,ST215..E,G,GT199708-200209

main90564-45015iST210199708-200209

41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)

main90201-41024iAT211,ST210..4FC..(E,G)199708-200209

main90201-41025iAT211,ST210..4FC..(E,G)199708-200209

main90201-41026iAT211,ST210..4FC..(E,G)199708-200209

main90201-41027iAT211,ST210..4FC..(E,G)199708-200209

main90201-41028iAT211,ST210..4FC..(E,G)199708-200209

main90201-41029iAT211,ST210..4FC..(E,G)199708-200209

main90201-41030iAT211,ST210..4FC..(E,G)199708-200209

main90201-41031iAT211,ST210..4FC..(E,G)199708-200209

main90201-41032iAT211,ST210..4FC..(E,G)199708-200209

main90201-41033iAT211,ST210..4FC..(E,G)199708-200209

main90201-41034iAT211,ST210..4FC..(E,G)199708-200209

main90201-41035iAT211,ST210..4FC..(E,G)199708-200209

main90201-41036iAT211,ST210..4FC..(E,G)199708-200209

main90201-41039iAT211,ST210..4FC..(E,G)199708-200209

main90201-41040iAT211,ST210..4FC..(E,G)199708-200209

main90201-41041iAT211,ST210..4FC..(E,G)199708-200209

main90201-41042iAT211,ST210..4FC..(E,G)199708-200209

main90201-41043iAT211,ST210..4FC..(E,G)199708-200209

main90201-41044iAT211,ST210..4FC..(E,G)199708-200209

main90201-41046iAT211..5F199708-199908

sub90564-41014

main90201-41047iAT211..5F199708-199908

sub90564-41015

main90201-41048iAT211..5F199708-199908

sub90564-41016

main90201-41049iAT211..5F199708-199908

sub90564-41017

main90201-41050iAT211..5F199708-199908

sub90564-41018

main90201-41051iAT211..5F199708-199908

sub90564-41019

main90201-41052iAT211..5F199708-199908

sub90564-41020

main90201-41053iAT211..5F199708-199908

sub90564-41021

main90201-41054iAT211..5F199708-199908

sub90564-41022

main90201-41055iAT211..5F199708-199908

sub90564-41023

main90201-41056iAT211..5F199708-199908

sub90564-41024

main90201-41057iAT211..5F199708-199908

sub90564-41025

main90201-41058iAT211..5F199708-199908

sub90564-41026

main90201-41059iAT211..5F199708-199908

sub90564-41027

main90201-41060iAT211..5F199708-199908

sub90564-41028

main90201-41061iAT211..5F199708-199908

sub90564-41029

main90201-41062iAT211..5F199708-199908

sub90564-41030

main90201-41063iAT211..5F199708-199908

sub90564-41031

main90201-41064iAT211..5F199708-199908

sub90564-41032

main90201-45004iCT216,ST21#..4FC..(E,G,GT)199708-200209

main90201-45005iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90201-45006iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90201-45007iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90201-45008iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90201-45009iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90201-45010iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90201-45011iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90201-45012iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90201-45013iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90201-45014iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90201-45015iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90201-45016iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90201-45017iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90201-45018iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90201-45019iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90201-45020iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90201-45021iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90201-45022iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90564-41014iAT211..5F199908-200209

main90564-41015iAT211..5F199908-200209

main90564-41016iAT211..5F199908-200209

main90564-41017iAT211..5F199908-200209

main90564-41018iAT211..5F199908-200209

main90564-41019iAT211..5F199908-200209

main90564-41020iAT211..5F199908-200209

main90564-41021iAT211..5F199908-200209

main90564-41022iAT211..5F199908-200209

main90564-41023iAT211..5F199908-200209

main90564-41024iAT211..5F199908-200209

main90564-41025iAT211..5F199908-200209

main90564-41026iAT211..5F199908-200209

main90564-41027iAT211..5F199908-200209

main90564-41028iAT211..5F199908-200209

main90564-41029iAT211..5F199908-200209

main90564-41030iAT211..5F199908-200209

main90564-41031iAT211..5F199908-200209

main90564-41032iAT211..5F199908-200209

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-12011iAT211199708-200209

main41331-20020iST215..5F..GTT199708-200209

main41331-32010iCT216,ST21#..E,G,GT199708-200209

41341FPINION, FRONT DIFFERENTIAL

main41341-12030iAT211199708-200209

main41341-20030iST215..5F..GTT199708-200209

main41341-30011iCT216,ST21#..E,G,GT199708-200209

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-05028iST215..5F..GTT199708-200209

main90250-06058iAT211,CT216,ST21#..E,G,GT199708-200209

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-12140iAT211..5F199708-200209

sub41342-20060

main41342-20040iST215..5F..GTT199708-200209

main41342-20060iAT211..4FC199708-200209

main41342-21020iCT216,ST215..4FC..(E,G,GT)199708-200209

main41342-32020iST210;ST215..5F..(E,G)199708-200209

sub41342-52060

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-12020iAT211199708-200209

main41351-20020iST215..5F..GTT199708-200209

main41351-32010iCT216,ST21#..E,G,GT199708-200209

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-12330iST215..5F..GTT199708-200209

main41361-12340iST215..5F..GTT199708-200209

main41361-12350iST215..5F..GTT199708-200209

main41361-12360iST215..5F..GTT199708-200209

main41361-12370iST215..5F..GTT199708-200209

main41361-12380iST215..5F..GTT199708-200209

main41361-12390iST215..5F..GTT199708-200209

main41361-12400iST215..5F..GTT199708-200209

main41361-12410iST215..5F..GTT199708-200209

main41361-12420iST215..5F..GTT199708-200209

main41361-17010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main41361-17020iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main41361-17030iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main41361-17040iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main41361-17050iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main41361-17060iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main41361-22020iAT211,ST215..5F..(E,G)199708-200209

main41361-22030iAT211,ST215..5F..(E,G)199708-200209

main41361-22040iAT211,ST215..5F..(E,G)199708-200209

main41361-22140iAT211,ST215..5F..(E,G)199708-200209

main41361-22150iAT211,ST215..5F..(E,G)199708-200209

main41361-22160iAT211,ST215..5F..(E,G)199708-200209

4302

18 parts on this diagram · 6 diagrams in section
