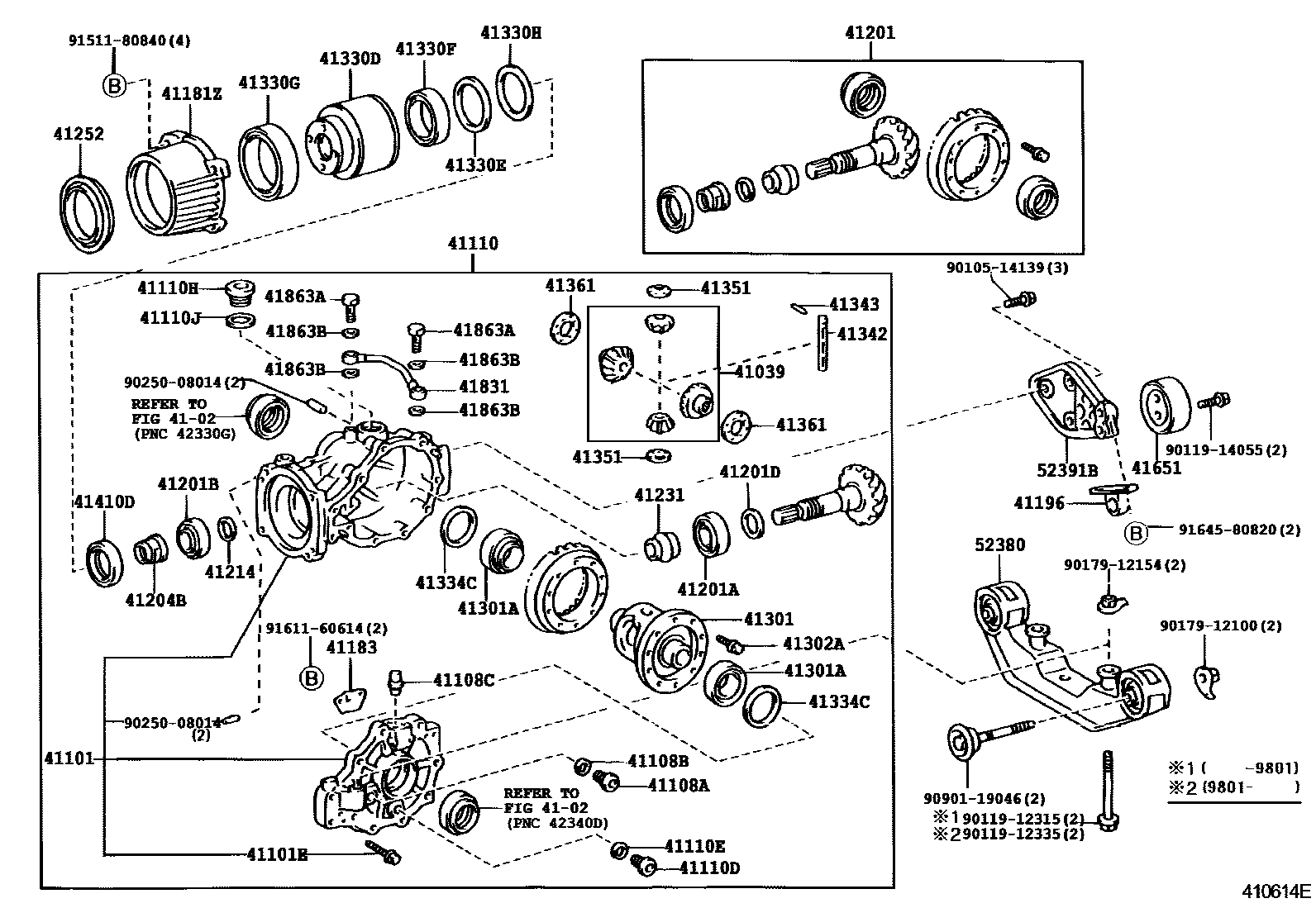

REAR AXLE HOUSING & DIFFERENTIAL
4102
41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)
41108APLUG (FOR REAR DIFFERENTIAL CARRIER COVER)
41108BGASKET (FOR REAR DIFFERENTIAL CARRIER COVER)
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41181ZCOVER, REAR DIFFERENTIAL CARRIER
41196DAMPER, REAR DIFFERENTIAL DYNAMIC
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301CASE SUB-ASSY, REAR DIFFERENTIAL
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41330DCOUPLING ASSY, TRANSMISSION
sub41330-12020
41330EWASHER, CONICAL SPRING (FOR TRANSMISSION COUPLING)
41330FBEARING, RADIAL BALL, NO.1 (FOR TRANSMISSION COUPLING)
41330GBEARING, RADIAL BALL, NO.2 (FOR TRANSMISSION COUPLING)
41330HSPACER (FOR TRANSMISSION COUPLING)
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41410DSEAL, OIL DIAPHRAGM
41651CUSHION, REAR DIFFERENTIAL MOUNT, NO.1
41831TUBE, REAR DIFFERENTIAL OIL COOLER OUTLET
41863ABOLT, UNION (FOR REAR DIFFERENTIAL OIL COOLER TUBE)
41863BGASKET (FOR REAR DIFFERENTIAL OIL COOLER TUBE)
52380SUPPORT, REAR DIFFERENTIAL, NO.1
52391BSUPPORT, DIFFERENTIAL
9010514139
main90105-14139
9011912315
main90119-12315
9011912335
main90119-12335
9011914055
main90119-14055
9017912100
main90179-12100
9017912154
main90179-12154
9025008014
main90250-08014
9090119046
main90901-19046
9151180840
main91511-80840
9161160614
main91611-60614
9164580820
main91645-80820
55 parts on this diagram · 6 diagrams in section
