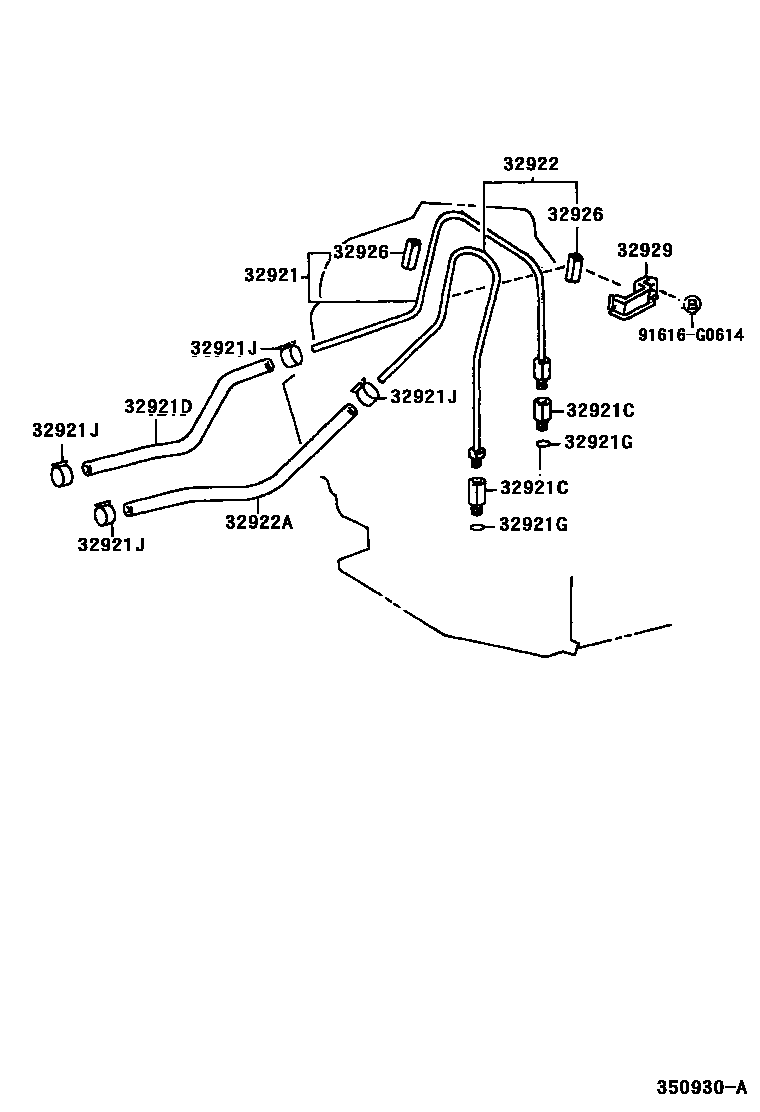

OIL COOLER & TUBE (ATM)

0001 1A245E 0002 1A245E 0003 1A247E 0004 1A241F 0005 1A243E,A243F 0007 1U140F

32921TUBE, OIL COOLER INLET, NO.1

main32921-20410iAT211..4FC199708-199803

main32921-20470iAT211..4FC199803

main32921-21030iST215..4FC..GTT199711

main32921-21040iST210..E,G199708

main32921-21050iST215..4FC..(E,G,GT)199708-199906

main32921-21060iCT216199708-199906

main32921-21080iST215..4FC..(E,G,GT)199906

main32921-21090iCT216199906

main32921-21100iST210..GT199912

32921CUNION(FOR OIL COOLER TUBE)

main32901-12030iST210..GT199912-200209

main32901-21020iCT216,ST215..4FC..(E,G,GT)199906-200209

main90404-14007iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90404-14019iST210..E,G199708-200209

main90404-16021iST215..4FC..GTT199711-199912

main90404-16031iST215..4FC..GTT199912-200209

main90404-16032iAT211..4FC199708-200209

main90407-16032iCT216,ST215..4FC..(E,G,GT)199708-199906

32921DHOSE(FOR OIL COOLER INLET)

main32941-21010iST215..4FC..GTT199711

main90445-15047iST21#..4FC..(E,G,GT)199708

main90445-15052iCT216199708

main90445-17117iAT211..4FC199708-199803

main90445-17124iAT211..4FC199803

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iST210..GT;CT216,ST215..4FC199708-200209

main90301-11006iAT211,ST210..4FC..(E,G)199708-200209

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039iCT216199708-199912

sub96135-51300

main90467-16013iAT211..4FC199708-200204

sub90467-16022

main90467-16022iAT211..4FC200204

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-20420iAT211..4FC199708-199803

main32922-20500iAT211..4FC199803

main32922-21030iST215..4FC..GTT199711

main32922-21050iST210..E,G199708

main32922-21060iST210..GT;ST215..4FC..(E,G,GT)199708

main32922-21070iCT216199708

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-35011iST215..4FC..GTT199711

main90445-15042iCT216199708

main90445-15047iST210..E,G199708

main90445-15054iST210..GT;ST215..4FC..(E,G,GT)199708

main90445-17117iAT211..4FC199708-199803

main90445-17124iAT211..4FC199803

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010iCT216199708

main32926-30020iAT211..4FC;ST215..4FC..GTT199708

32929CLAMP, FLEXIBLE HOSE, NO.2

main32924-20080iAT211..4FC199803

sub32924-48010

main32929-22050iAT211..4FC199708-199803

91616G0614

main91616-G0614

10 parts on this diagram · 6 diagrams in section
