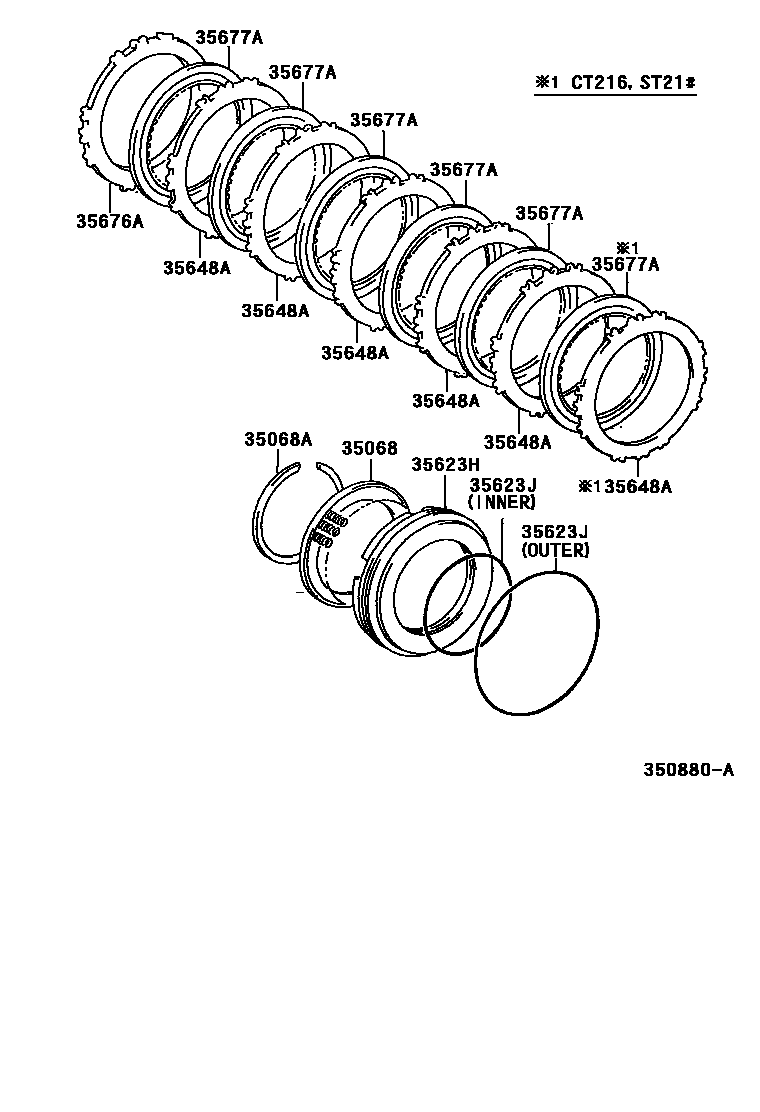

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A245E,A247E,A241F,A243E,A243F0002 1U140F

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-12010iAT211,ST210..4FC..(E,G)199708-200209

main35068-20010iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main35068-21010iST215..4FC..GTT199711-200209

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main90520-99035iST215..4FC..GTT199711-200209

35623HPISTON, 1ST & REVERSE BRAKE

main35623-12030iST210..E,G199708-200209

main35623-20020iAT211..4FC199708-200209

main35623-20030iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main35623-21010iST215..4FC..GTT199711-200209

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94001iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main90301-94004iAT211,ST210..4FC..(E,G)200008-200209

main90301-99022iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90301-99096iST215..4FC..GTT199711-200209

main90301-99098iST215..4FC..GTT199711-200209

sub90301-99134

main90301-99131iAT211,ST210..4FC..(E,G)200008-200209

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-12020iAT211..4FC199708-200209

main35648-32020iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main35692-21010iST215..4FC..GTT199711-200209

sub35692-21011

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-12030iAT211,CT216,ST21#..4FC..(E,G,GT)199904-200209

main35676-32010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-199904

sub35676-12030

main35678-21010iST215..4FC..GTT199711-200209

main35678-21020iST215..4FC..GTT199711-200209

main35678-21030iST215..4FC..GTT199711-200209

main35678-21040iST215..4FC..GTT199711-200209

main35678-21050iST215..4FC..GTT199711-200209

main35678-21060iST215..4FC..GTT199711-200209

main35678-21070iST215..4FC..GTT199711-200209

main35678-21080iST215..4FC..GTT199711-200209

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-12060iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main35677-20070iAT211..4FC199708-200209

main35682-21010iST215..4FC..GTT199711-200209

7 parts on this diagram · 2 diagrams in section
