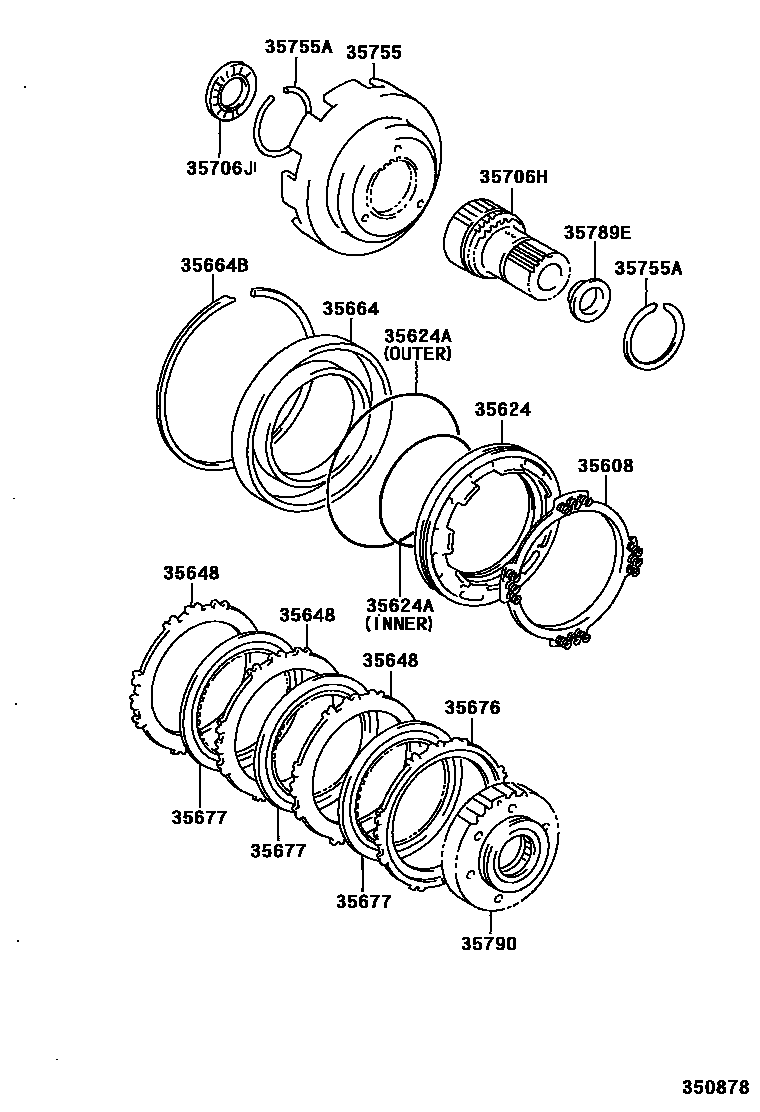

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1A245E,A247E 0002 1A241F,A243E,A243F 0004 1U140F

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-21010iST215..4FC..GTT199711-200209

main35608-32010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35624PISTON, 2ND BRAKE

main35624-21010iST215..4FC..GTT199711-200209

main35624-32010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iST210..GT;CT216,ST215..4FC..(E,G,GT)200008-200209

main90301-99023iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200008

main90301-99093iST215..4FC..GTT199711-200209

main90301-99095iST215..4FC..GTT199711-200209

main90301-99100iAT211,ST210..4FC..(E,G)200008-200209

main90301-99132iAT211,ST210..4FC..(E,G)200008-200209

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-12010×3iAT211..4FC199708-200209

main35648-21020×3iST210..E,G199708-200209

main35648-32010×3iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main35691-21010×4iST215..4FC..GTT199711-200209

35664CYLINDER, 2ND BRAKE

main35664-21010iST215..4FC..GTT199711-199905

main35664-21011iST215..4FC..GTT199905-200209

sub35664-33010

main35664-32010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90520-99013iAT211,ST210..4FC..(E,G)199708-200209

main90520-99027iST215..4FC..GTT199711-200209

main90521-99013iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-12030iAT211,CT216,ST21#..4FC..(E,G,GT)199904-200209

main35676-21070iST215..4FC..GTT199711-200209

main35676-21080iST215..4FC..GTT199711-200209

main35676-21090iST215..4FC..GTT199711-200209

main35676-21100iST215..4FC..GTT199711-200209

main35676-21110iST215..4FC..GTT199711-200209

main35676-21120iST215..4FC..GTT199711-200209

main35676-21130iST215..4FC..GTT199711-200209

main35676-32010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-199904

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-12070×3iST21#..GT;AT211..4FC199708-200209

main35677-21020×3iCT216,ST21#..4FC..(E,G)199708-200209

main35681-21010×4iST215..4FC..GTT199711-200209

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-12010iAT211,ST21#..4FC..(E,G)199708-200209

main35706-33012iCT216;ST21#..GT199708-200209

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-28011iAT211,ST210..4FC..(E,G)199708-200209

main90374-30006iST215..4FC..(E,G)199708-200209

main90374-30014iCT216;ST21#..GT199708-200209

main90374-38002iST215..4FC..GTT199711-200209

35755DRUM, SUN GEAR INPUT

main35755-20020iAT211..4FC199708-200209

main35755-32020iST21#..4FC..(E,G)199708-200209

main35755-32030iCT216;ST21#..GT199708-200209

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-36017iCT216;ST21#..GT199708-200209

main90520-44002iAT211,ST21#..4FC..(E,G)199708-200209

main90520-46010iAT211,ST210..4FC..(E,G)199708-200209

main90520-47003iST215..4FC..(E,G)199708-200209

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-22010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35790CLUTCH ASSY, 1 WAY

main35790-21010iST215..4FC..GTT199711-200209

main35790-32031iCT216;ST21#..GT199708-200209

main35790-32050iAT211,ST21#..4FC..(E,G)199708-200110

main35790-44010iAT211,ST21#..4FC..(E,G)200110-200209

14 parts on this diagram · 3 diagrams in section
