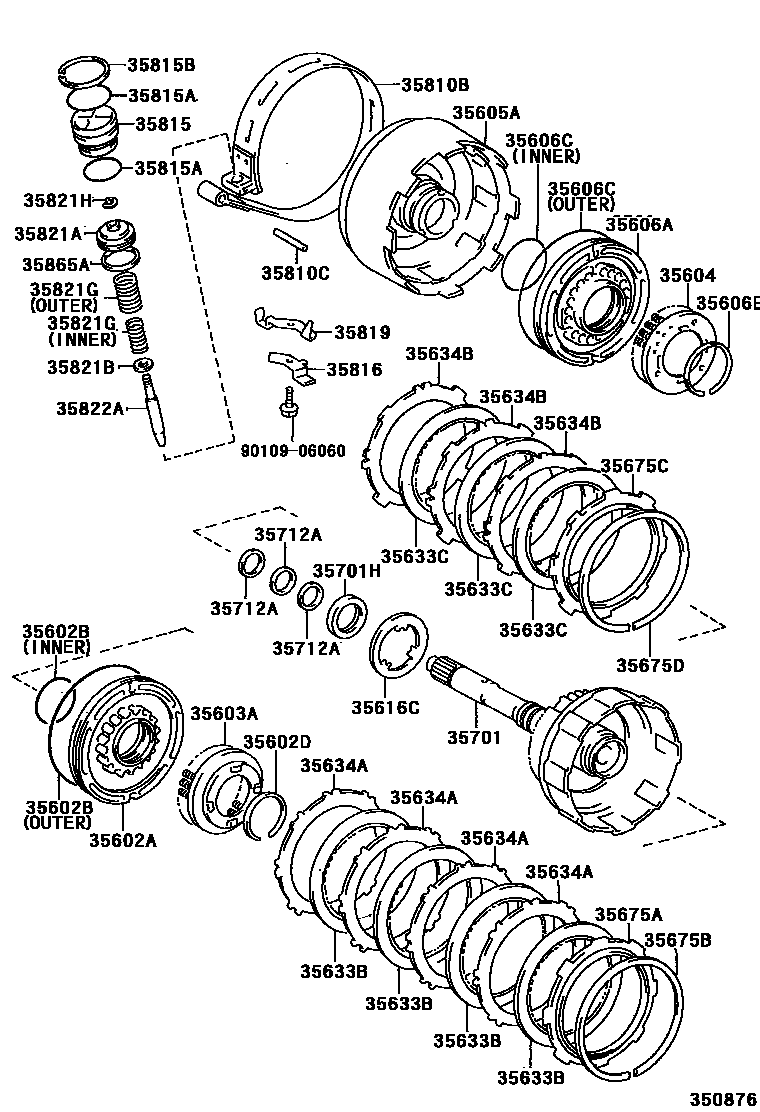

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1A245E,A247E 0002 1A241F,A243E,A243F 0004 1U140F

35602APISTON SUB-ASSY, FORWARD CLUTCH

main35602-12060iAT211,ST210..4FC..(E,G)199708-200209

main35602-12070iST215..4FC..(E,G)199708-200209

main35602-21010iST215..4FC..GTT199711-200209

main35602-21020iCT216;ST21#..GT199708-200209

35602BRING, O (FOR FORWARD CLUTCH PISTON)

main90301-46002iST215..4FC..(E,G)199708-200209

main90301-49006iAT211,ST210..4FC..(E,G)199708-200209

main90301-59004iCT216;ST21#..GT199708-200209

main90301-64008iST215..4FC..GTT199711-200209

main90301-99016iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main90301-99058iAT211,ST210..4FC..(E,G)200008-200209

main90301-99104iST215..4FC..GTT199711-200209

35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)

main90520-44001iST215..4FC..(E,G)199708-200209

main90520-47009iAT211,ST210..4FC..(E,G)199708-200209

main90520-54002iCT216;ST21#..GT199708-200209

main90520-54004iST215..4FC..GTT199711-200209

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-12020iAT211,ST210..4FC..(E,G)199708-200209

main35603-12030iST215..4FC..(E,G)199708-200209

main35603-21010iST215..4FC..GTT199711-200209

main35603-33010iCT216;ST21#..GT199708-200209

35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN

main35604-12010iAT211,ST210..4FC..(E,G)199708-200209

main35604-21010iST215..4FC..GTT199711-200209

main35604-32010iST215..4FC..(E,G)199708-200209

main35604-33010iCT216;ST21#..GT199708-200209

35605ADRUM SUB-ASSY, DIRECT CLUTCH

main35605-12040iST210..E,G199708-200209

main35605-17020iST215..4FC..(E,G)199708-200002

sub35605-32060

main35605-20030iAT211..4FC199708-200209

main35605-21010iST215..4FC..GTT199711-200209

sub35605-28010

main35605-32060iST215..4FC..(E,G)200002-200209

main35605-33011iCT216;ST21#..GT199708-200209

35606APISTON SUB-ASSY, DIRECT CLUTCH

main35606-20010iAT211,ST21#..4FC..(E,G)199708-200209

main35606-32031iCT216;ST21#..GT199708-200209

35606CRING, O (FOR DIRECT CLUTCH PISTON)

main90301-56007iAT211,ST210..4FC..(E,G)200008-200209

main90301-57188iAT211,ST21#..4FC..(E,G)199708-200209

main90301-59004iCT216;ST21#..GT199708-200209

main90301-99016iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main90301-99058iAT211,ST210..4FC..(E,G)200008-200209

35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)

main90520-38019iST215..4FC..GTT199711-200209

main90520-52002iAT211,ST21#..4FC..(E,G)199708-200209

main90520-54002iCT216;ST21#..GT199708-200209

35616CWASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM)

main35616-12020iAT211,ST210..4FC199708-199910

sub35616-12040

main35616-12030iST215..4FC..(E,G)199811-200209

main35616-12040iAT211,ST210..4FC199910-199912

main35616-21010iCT216;ST21#..GT199708-200209

main35616-32021iST215..4FC..(E,G)199708-199811

35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35633-12040iAT211,ST210..4FC..(E,G)199708-200209

main35633-12060iST215..4FC..(E,G)199708-200209

main35633-21010iST215..4FC..GTT199711-200209

main35633-33100iCT216;ST21#..GT199708-200209

35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35633-20020iST21#..4FC..(E,G)199708-199712

sub35633-21020

main35633-20050iAT211..4FC199708-200209

main35633-21020iST210199710-200209

main35633-21030iCT216;ST21#..GT199911-200209

main35633-33020iCT216;ST215..GT199708-199911

sub35633-21030

main35667-21010iST215..4FC..GTT199711-200209

sub35667-28030

35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35634-12030iAT211,ST210..4FC..(E,G)199708-200209

main35634-12040iST215..4FC..(E,G)199708-200209

main35634-21010iST215..4FC..GTT199711-200209

main35634-33010iCT216;ST21#..GT199708-200209

main35634-33020iCT216;ST21#..GT199708-200209

35634BPLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35634-12020iAT211..4FC199708-200209

main35634-12030iST210..E,G199708-200209

main35634-12040iST215..4FC..(E,G)199708-200209

main35647-21010iST215..4FC..GTT199711-200209

main35647-33010iCT216;ST21#..GT199708-200209

35675AFLANGE, FORWARD CLUTCH

main35635-21010iST215..4FC..GTT199711-200209

main35635-21020iST215..4FC..GTT199711-200209

main35635-21030iST215..4FC..GTT199711-200209

main35635-21040iST215..4FC..GTT199711-200209

main35635-21050iST215..4FC..GTT199711-200209

main35635-30060iAT211,ST21#..4FC..(E,G)200101-200209

main35635-50030iAT211,ST21#..4FC..(E,G)199708-200101

sub35635-30060

main35675-12010iST215..4FC..(E,G)199708-200209

sub35675-12060

main35675-12040iAT211,ST210..4FC..(E,G)200101-200209

main35675-12050iAT211,ST210..4FC..(E,G)200101-200209

main35675-12060iAT211,ST210..4FC..(E,G)200101-200209

main35675-17010iST215..4FC..(E,G)199708-200209

sub35675-12040

main35675-32010iST215..4FC..(E,G)199708-200209

sub35675-12050

main35675-32061iAT211,ST21#..4FC..(E,G)199708-200209

main35675-33010iCT216;ST21#..GT199708-200209

main35675-33020iCT216;ST21#..GT199708-200209

main35675-33050iCT216;ST21#..GT199708-200209

35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

main90520-99025iST215..4FC..GTT199711-200209

main90521-99001iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35675CFLANGE, DIRECT CLUTCH

main35675-12010iAT211,ST210..4FC..(E,G)199708-200101

sub35675-12060

main35675-12020iAT211,ST210..4FC..(E,G)200101-200209

main35675-12040iAT211,ST210..4FC..(E,G)200101-200209

main35675-12050iAT211,ST210..4FC..(E,G)200101-200209

main35675-12060iAT211,ST210..4FC..(E,G)200101-200209

main35675-17010iAT211,ST210..4FC..(E,G)199708-200209

sub35675-12040

main35675-21010iST215..4FC..GTT199711-200209

main35675-21020iST215..4FC..GTT199711-200209

main35675-21030iST215..4FC..GTT199711-200209

main35675-21040iST215..4FC..GTT199711-200209

main35675-21050iST215..4FC..GTT199711-200209

main35675-21060iST215..4FC..GTT199711-200209

main35675-32010iAT211,ST21#..4FC..(E,G)199708-200209

sub35675-12050

main35675-32030iAT211,ST21#..4FC..(E,G)199708-200209

sub35675-12020

main35675-32040iCT216;ST21#..GT199708-200209

main35675-32050iCT216;ST21#..GT199708-200209

35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)

main90520-99028iST215..4FC..GTT199711-200209

main90521-99001iAT211,ST21#..4FC..(E,G)199708-200209

main90521-99032iCT216;ST21#..GT199708-200209

35701SHAFT SUB-ASSY, INPUT

main35701-12030iAT211,ST210..4FC..(E,G)199708-200209

main35701-21010iST215..4FC..GTT199711-200209

sub35701-28010

main35701-21020iCT216;ST21#..GT199708-200209

main35701-32031iST215..4FC..(E,G)199708-200209

35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)

main90374-27003iCT216;ST21#..GT199708-200209

main90374-27004iCT216;ST21#..GT199708-200209

main90374-27012iCT216;ST21#..GT199807-200209

main90374-28005iST215..4FC..(E,G)199708-200209

main90374-30011iAT211,ST210..4FC..(E,G)199708-200209

main90374-30012iAT211,ST210..4FC..(E,G)199708-200209

main90374-30013iAT211,ST210..4FC..(E,G)199708-200209

main90374-34005iST215..4FC..GTT199711-200209

35712ARING, INPUT SHAFT OIL SEAL

main35712-21010iST215..4FC..GTT199711-200209

main35712-32010iST215..GT;AT211,CT216,ST210..4FC199708-200209

35810BBAND ASSY, 2ND COAST BRAKE

main35810-32020iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35810CPIN (FOR 2ND COAST BRAKE BAND)

main90250-07001iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90250-07003iAT211,ST210..4FC..(E,G)199708-200209

35815COVER, 2ND COAST BRAKE

main35815-12020iAT211,ST210..4FC..(E,G)199708-200209

main35815-32010iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

35815ARING, O (FOR 2ND COAST BRAKE COVER)

main90301-41002iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35815BRING, HOLE SNAP (FOR 2ND COAST BRAKE COVER)

main90521-48003iAT211,ST210..4FC..(E,G)199708-200209

main90521-53001iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

35816RETAINER, BRAKE BAND GUIDE PLATE

main35816-12010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35819PLATE, 2ND COAST BRAKE BAND GUIDE

main35819-12020iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main35819-12030iAT211,ST210..4FC..(E,G)199708-200209

35821APISTON, 2ND COAST BRAKE

main35821-32010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35821BWASHER, PLATE (FOR 2ND COAST BRAKE PISTON)

main90201-06557iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35821GSPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON)

main90501-20051iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main90501-26024iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35821HRING, E (FOR 2ND COAST BRAKE PISTON)

main96160-00500iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35822AROD, 2ND COAST BRAKE PISTON

main35822-32010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main35822-32020iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35865ARING, 2ND COAST BRAKE PISTON OIL SEAL

main35865-32010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

9010906060

main90109-06060

35 parts on this diagram · 3 diagrams in section
