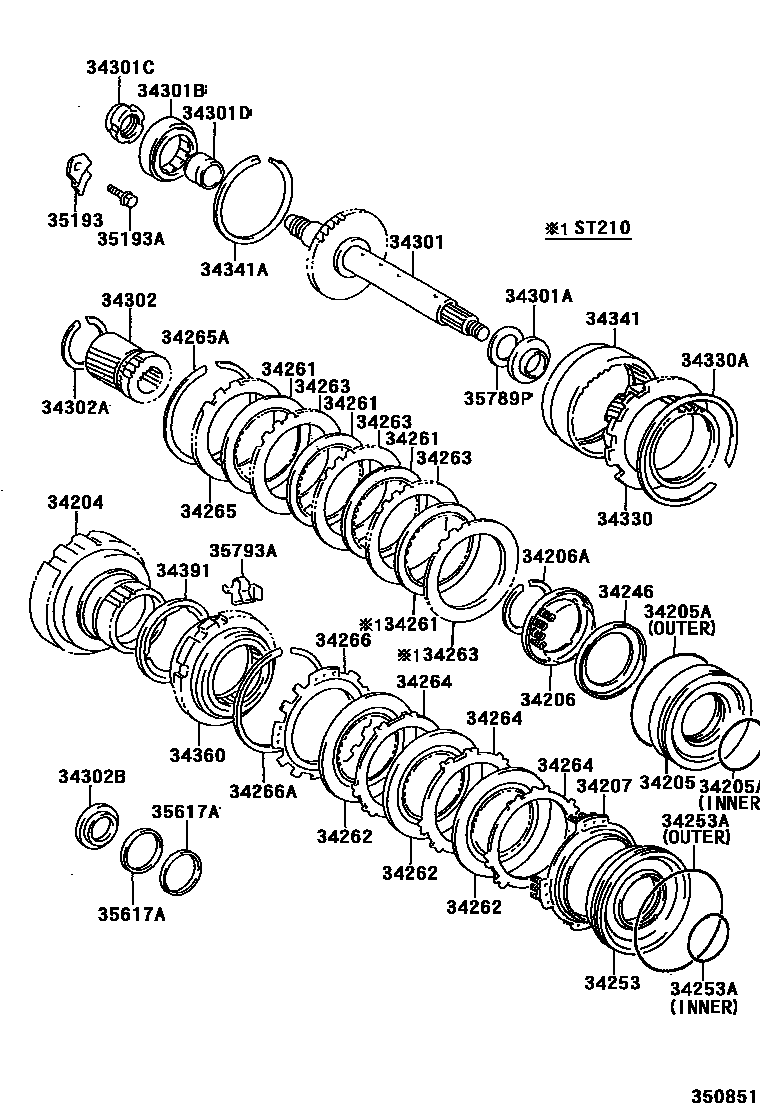

OVERDRIVE GEAR (ATM)

0001 1A245E,A247E 0002 1A241F,A243E,A243F 0004 1U140F

34204DRUM SUB-ASSY, UNDERDRIVE CLUTCH

main34204-12020iAT211..4FC199708-200105

sub34204-12H00

main34204-12030iST210..GT;CT216,ST215..4FC..(E,G,GT)200105-200108

sub34204-20H00

main34204-12040iAT211..4FC200105-200209

main34204-20010iCT216,ST21#..4FC..(E,G,GT)200108-200209

main34204-21010iST215..4FC..GTT199711-200209

sub34204-28010

34205PISTON SUB-ASSY, UNDERDRIVE CLUTCH

main34205-12020iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

34205ARING, O (FOR UNDERDRIVE CLUTCH PISTON)

main90301-56007iAT211,ST210..4FC..(E,G)200008-200209

main90301-57188iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200008

main90301-98001iST210..GT;CT216,ST215..4FC..(E,G,GT)200008-200209

main90301-98003iAT211,ST210..4FC..(E,G)200008-200209

34206SPRING SUB-ASSY, UNDERDRIVE CLUTCH RETURN

main34206-12010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main34206-21010iST215..4FC..GTT199711-200209

34206ARING, SHAFT SNAP (FOR UNDERDRIVE RETURN SPRING)

main90520-50009iST215..4FC..GTT199711-200209

main90520-52262iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

34207SPRING SUB-ASSY, UNDERDRIVE BRAKE RETURN

main34207-12010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main34207-21010iST215..4FC..GTT199711-200209

34246PLATE, UNDERDRIVE CLUTCH RETURN SPRING

main34246-12010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

34253PISTON, UNDERDRIVE BRAKE

main34253-12010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main34253-21010iST215..4FC..GTT199711-200209

34253ARING, O (FOR UNDERDRIVE BRAKE PISTON)

main90301-56007iAT211,ST210..4FC..(E,G)200008-200209

main90301-57188iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200008

main90301-62007iST215..4FC..GTT199711-200209

main90301-98001iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200008

main90301-98003iAT211,ST210..4FC..(E,G)200008-200209

main90301-99094iST215..4FC..GTT199711-200209

34261DISC, UNDERDRIVE CLUTCH, NO.1

main34261-20010×3iAT211..4FC199708-200209

main34261-21010×4iST215..4FC..GTT199711-200209

sub34261-28030

34262DISC, UNDERDRIVE CLUTCH, NO.2

main34262-13010×3iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main34262-21010×4iST215..4FC..GTT199711-200209

34263PLATE, UNDERDRIVE CLUTCH, NO.1

main34263-12010×4iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main34263-12020×3iST210..E,G199708-200209

main34263-21010×4iST215..4FC..GTT199711-200209

34264PLATE, UNDERDRIVE CLUTCH, NO.2

main34264-12010×3iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main34264-12020×3iAT211,ST210..4FC..(E,G)199708-200209

main34264-21010×4iST215..4FC..GTT199711-200209

34265FLANGE, UNDERDRIVE CLUTCH, NO.1

main34265-12030iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200101

main34265-12040iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200101

main34265-12050iAT211,ST210..4FC..(E,G)199708-200101

main34265-12060iAT211,CT216,ST21#..4FC..(E,G,GT)200101-200209

main34265-12070iAT211,ST210..4FC..(E,G)200101-200112

main34265-12080iAT211,CT216,ST21#..4FC..(E,G,GT)200101-200209

main34265-12090iAT211,ST210..4FC..(E,G)200101-200112

main34265-20020iAT211,ST210..4FC..(E,G)199708-200101

main34265-21020iST215..4FC..GTT199711-200209

main34265-21030iST215..4FC..GTT199711-200209

main34265-21040iST215..4FC..GTT199711-200209

34265ARING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.1)

main90520-99029iST215..4FC..GTT199711-200209

main90521-99015iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

34266FLANGE, UNDERDRIVE CLUTCH, NO.2

main34266-12010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main34266-21010iST215..4FC..GTT199711-200209

main34266-21020iST215..4FC..GTT199711-200209

main34266-21030iST215..4FC..GTT199711-200209

34266ARING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.2)

main90520-99032iST215..4FC..GTT199711-200209

main90521-99015iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

34301SHAFT SUB-ASSY, UNDERDRIVE INPUT

main34301-12020iAT211,ST210..4FC..(E,G)199708-200209

main34301-20010iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

34301ABEARING, NEEDLE ROLLER (FOR UNDERDRIVE INPUT SHAFT)

main90364-31002iST210..E,G199708-200209

main90364-31003iAT211..4FC199708-200209

main90374-31002iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

34301BBEARING, CYLINDRICAL ROLLER, NO.1 (FOR UNDERDRIVE)

main90365-30031iAT211..4FC200009-200209

main90365-38002iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200009

main90365-53001iST215..4FC..GTT199711-200209

34301CNUT (FOR UNDERDRIVE INPUT SHAFT)

main90179-26003iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main90179-32002iST215..4FC..GTT199711-200209

34301DBEARING, CYLINDRICAL ROLLER, NO.2 (FOR UNDERDRIVE)

main90365-30021iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

34302GEAR SUB-ASSY, UNDERDRIVE PLANETARY SUN

main34302-20010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

34302ARING, HOLE SNAP (FOR UNDERDRIVE PLANETARY SUN GEAR)

main90521-48001iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

34302BBEARING, NEEDLE ROLLER(FOR UNDERDRIVE PLANETARY SUN GEAR)

main90364-31002iST210..E,G199708-200209

main90364-31003iST210..GT;AT211,CT216,ST215..4FC..(E,G,GT)199708-200209

main90374-37007iST215..4FC..GTT199711-200209

34330GEAR ASSY, UNDERDRIVE PLANETARY

main34330-20010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main34330-21010iST215..4FC..GTT199711-200209

sub34330-45010

34330ARING, HOLE SNAP (FOR UNDERDRIVE PLANETARY GEAR)

main90521-99015iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

34341GEAR, UNDERDRIVE PLANETARY RING

main34341-20010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main34341-21010iST215..4FC..GTT199711-200209

sub34341-28010

34341ARING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING)

main90521-98001iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main90521-99120iST215..4FC..GTT199711-200209

34360CLUTCH ASSY, UNDERDRIVE 1 WAY

main34360-12010iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200108

main34360-12020iAT211,ST210..4FC..(E,G)199708-200105

main34360-12030iAT211,ST210..4FC..(E,G)200105-200108

main34360-21011iST215..4FC..GTT199711-200209

34391WASHER, UNDERDRIVE CLUTCH DRUM THRUST

main34391-12010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200105

main34391-12020iAT211,ST210..4FC..(E,G)200105-200108

35193RETAINER, ROLLER BEARING

main35193-12010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35193ABOLT (FOR ROLLER BEARING RETAINER)

main90119-08208iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-16010×2iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35789PRACE, THRUST BEARING (FOR UNDERDRIVE INPUT SHAFT)

main35789-12010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35793ARETAINER, UNDERDRIVE 1 WAY CLUTCH

main35793-10010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

36 parts on this diagram · 3 diagrams in section
