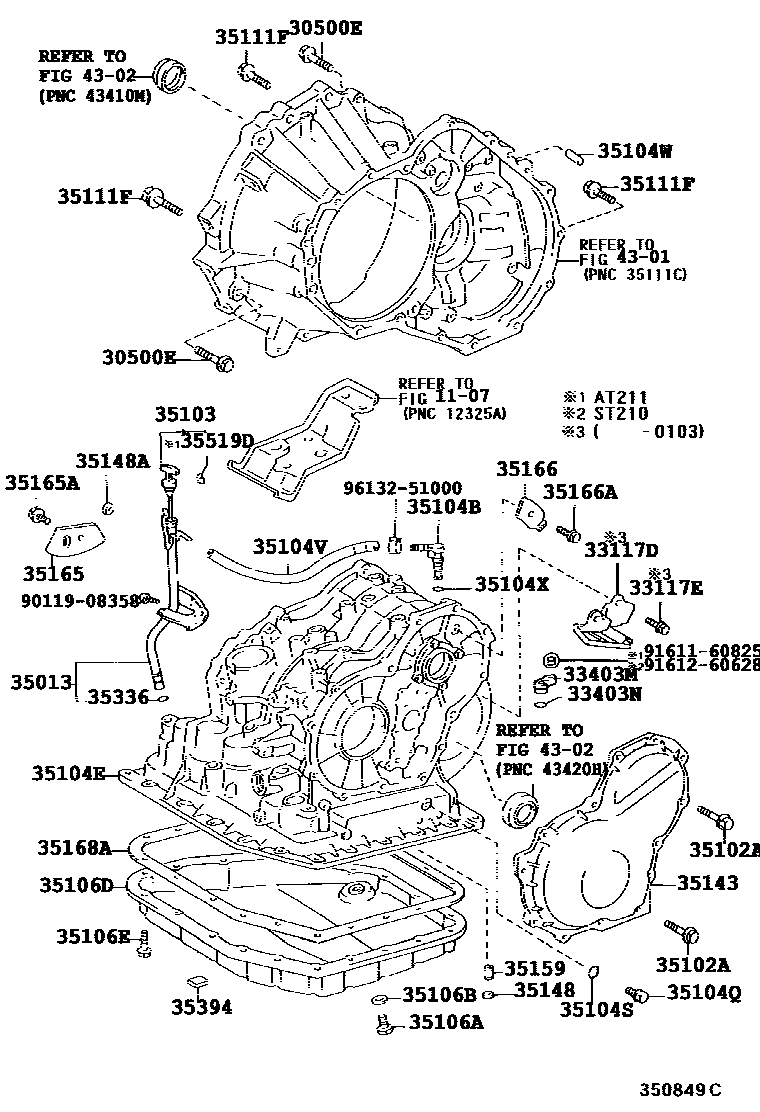

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A245E,A247E 0003 1A245E 0004 1A241F 0005 1A243E,A243F 0007 1U140F

1107

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-08040iCT216,ST210;ST215..4FC..(GT,GTT)199708-199912

sub91641-H0820

main90105-10077iAT211,CT216,ST21#..4FC..(E,G,GT)199708

main90119-12168iAT211..4FC199708

main90119-12250iST215..4FC..GTT199711

main91619-61245iCT216,ST21#..4FC..(E,G,GT)199708

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12030iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200103

main33117-21010iST215..4FC..GTT199711

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040iAT211,CT216,ST21#..4FC199708-200103

sub91641-H0820

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230iCT216,ST21#..4FC..(E,G,GT)199708

main33403-21020iST215..4FC..GTT199711

main33403-35230iAT211..4FC199708

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main90301-18018iST215..4FC..GTT199711

main96711-24018iCT216,ST21#..4FC..(E,G,GT)199708

main96711-24030iAT211..4FC199708

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-20660iAT211..4FC199708-199803

main35013-20750iAT211..4FC199803

main35013-21030iST215..4FC..GTT199711

main35013-21040iST215..4FC..(E,G,GT)199708-199906

sub35013-21060

main35013-21050iST210..E,G199708

main35013-21060iST210..GT;ST215..4FC..(E,G,GT)199906

main35013-21070iCT216199708

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-20031iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main35102-21010iST215..4FC..GTT199711-200010

main35102-21011iST215..4FC..GTT200010-200209

sub35102-42010

sub35102-42H00

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-06198iAT211,ST210..4FC..(E,G)199708-200209

main90105-08065iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90105-08071iST215..4FC..GTT199711-200209

main90105-08333iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

sub91551-C0835

main91511-80625iAT211,ST210..4FC..(E,G)199708-200209

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-20330iST210..GT199912

sub35103-21040

main35103-20380iAT211..4FC199708

main35103-21031iST215..4FC..GTT199711-199804

main35103-21032iST215..4FC..GTT199804

main35103-21040iST215..4FC..(E,G,GT)199708

main35103-21050iST210..E,G199708

main35103-21070iCT216199708

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03101iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90930-03132iST210..E,G199708-200209

main90930-03146iAT211..4FC199708-200209

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-20100iAT211..4FC199708-200209

main35104-20110iST210..E,G199708-200209

main35104-21010iST215..4FC..GTT199711-200010

main35104-21011iST215..4FC..GTT200010-200209

sub35104-28083

sub35104-28130

sub35105-28013

sub35105-48023

sub35105-48060

sub90105-06320

sub90301-06008

sub90301-10189

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35104VHOSE (FOR BREATHER PLUG)

main90447-11017iST210..E,G199708-200209

main90447-11031iAT211,CT216,ST215..4FC..(E,G,GT)199708-200209

main90447-11042iST210..GT;CT216,ST215..4FC..(E,G,GT)199808-200209

sub90447-11031

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017iST215..4FC..GTT199711-200009

main90250-10021iAT211,ST210..4FC..(E,G)199708-200209

main90250-10036iST215..4FC..GTT200009-200209

sub90250-10232

main90250-11001iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iST215..4FC..GTT199711-200209

main90301-06010iAT211,ST210..4FC..(E,G)199708-200209

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

sub90341-10011

main90341-10011iAT211,ST210..4FC..(E,G)199708-200209

main90341-18016iST215..4FC..GTT199711-200209

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main90430-18008iST215..4FC..GTT199711-200209

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-12070iST21#..GT200001-200209

main35106-12110iST21#..GT199708-200001

sub35106-12070

main35106-12120iAT211,ST210..4FC..(E,G)199708-200209

sub35106-12090

main35106-17020iCT216,ST215..4FC..(E,G)199708-200209

main35106-21010iST215..4FC..GTT199711-199804

sub35106-21020

main35106-21020iST215..4FC..GTT199804-200102

sub35106-33030

sub35330-06010

main35106-33030iST215..4FC..GTT200102-200209

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iAT211,CT216,ST21#..4FC199708-200209

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08065iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90105-08066iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200209

main90105-08068iST210..E,G199708-200112

sub90105-08333

main90105-08071iAT211,ST210..4FC..(E,G)199708-200209

main90105-08233iST215..4FC..GTT199711-200209

main90105-08288iAT211,ST210..4FC..(E,G)199708-200209

main90105-08333iST210..E,G199708-200209

sub91551-C0835

main90105-08353iST215..4FC..GTT199711-200209

35143COVER, TRANSMISSION CASE, REAR

main35143-12030iAT211,ST210..4FC..(E,G)199708

35148GASKET, GOVERNOR APPLY, NO.1

main35145-21010iST215..4FC..GTT199711-200209

main35148-16010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35159GASKET, BRAKE DRUM

main35159-20010iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

main35159-21010iST215..4FC..GTT199711-200209

35165PLATE, TRANSMISSION CASE, NO.1

main35165-12010iAT211..4FC199708-200209

main35165-20010iCT216,ST21#..4FC..(E,G,GT)199708-200209

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90105-06049iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35166PLATE, TRANSMISSION CASE, NO.3

main35166-12020iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35166ABOLT (FOR TRANSMISSION CASE PLATE NO.3)

main90105-06049iAT211,CT216,ST21#..4FC..(E,G,GT)199708-200209

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iST210..GT;CT216,ST215..4FC..(E,G,GT)199708-200111

main35168-12030iAT211,ST210..4FC..(E,G)199708-200209

main35168-12080iST210..GT;CT216,ST215..4FC..(E,G,GT)200112-200209

main35168-21010iST215..4FC..GTT199711-200205

sub35168-21011

main35168-21011iST215..4FC..GTT200205-200209

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iAT211,CT216,ST21#..4FC199708

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iST215..4FC..GTT199708-200209

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-16040iCT216,ST215..4FC..(E,G,GT)199708

main35519-20030iAT211..4FC199906

main35519-21020iST215..4FC..GTT199711

main35519-30010iAT211..4FC199708-199906

4301

4302

9011908358

main90119-08358

9161160825

main91611-60825

9161260628

main91612-60628

9613251000

main96132-51000

40 parts on this diagram · 5 diagrams in section
