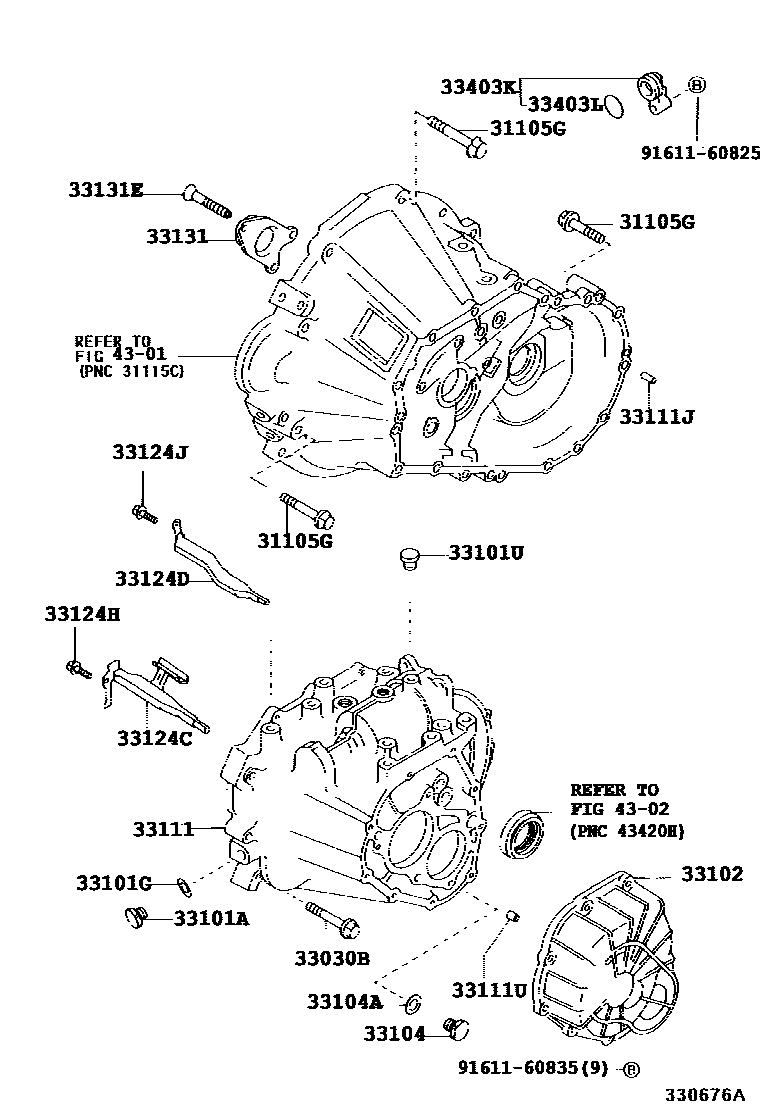

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C58 0002 1S55F 0003 1E150F

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iST215..5F..(E,G)199708

sub91641-H0820

main90105-10077iAT211,ST215..5F199708

main90119-12042iAT211..5F199708

main90119-12168iAT211..5F199708

main91651-41022iST215..5F199708

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iST215..5F..(E,G)199708-200209

sub90105-08430

main90105-08064iAT211..5F199708-200209

sub90105-08353

main90105-08086iAT211..5F199708-200209

main90105-08126iST215..5F..GTT199708-200209

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iAT211..5F199708-200209

main90341-18033iST215..5F..GTT199708-200209

main90341-18054iST215..5F..(E,G)199708-200209

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iAT211,ST215..5F199708-200209

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03133iAT211,ST215..5F..(E,G)199708-200209

main90930-03148iST215..5F..GTT199708-200209

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12021iAT211..5F199708-200209

main33102-33010iST215..5F..GTT199708-200209

sub33102-33011

main33102-33020iST215..5F..(E,G)199708-200209

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAT211,ST215..5F199708-200209

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAT211,ST215..5F199708-200209

33111CASE, MANUAL TRANSMISSION

main33101-20050iST215..5F..GTT199708-199911

sub33101-20051

sub90384-15002

main33101-20051iST215..5F..GTT199911-200009

sub33101-20052

main33101-20052iST215..5F..GTT200009-200107

sub33101-20053

sub33250-28010

sub33290-33020

main33101-20053iST215..5F..GTT200107-200209

sub33101-33020

sub33250-28050

sub33506-20320

main33111-16062iAT211..5F199708-199907

sub33111-16063

sub90109-18005

sub90430-18008

main33111-16063iAT211..5F199907-200209

sub33111-16064

sub90101-08166

sub90201-08049

main33111-32030iST215..5F..(E,G)199708-200209

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iST215..5F199708-200209

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iAT211..5F199708

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12012iAT211..5F199708-199907

sub33124-20050

main33124-20020iST215..5F..GTT199708-200209

main33124-20050iAT211..5F199907-200209

main33124-33010iST215..5F..(E,G)199708-200209

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12021iAT211..5F199708

main33124-20030iST215..5F..GTT199708

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648iST215..5F..GTT199708-200209

sub90119-08830

main91611-G0820iAT211..5F199708-200209

main91651-60618iST215..5F..(E,G)199708-200209

33124JBOLT, W/WASHER

main91611-G0820iAT211..5F199708

33131RETAINER, BEARING, FRONT(MTM)

main33131-12080iAT211..5F199708

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028iAT211..5F199708

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-20230iST215..5F..(E,G)199708

main33403-20240iST215..5F..GTT199708

main33403-35230iAT211..5F199708

33403LRING, O

main96711-24018iST215..5F..(E,G)199708

main96711-24030iAT211..5F;ST215..5F..GTT199708

4301

4302

9161160825

main91611-60825

9161160835

main91611-60835

23 parts on this diagram · 3 diagrams in section
