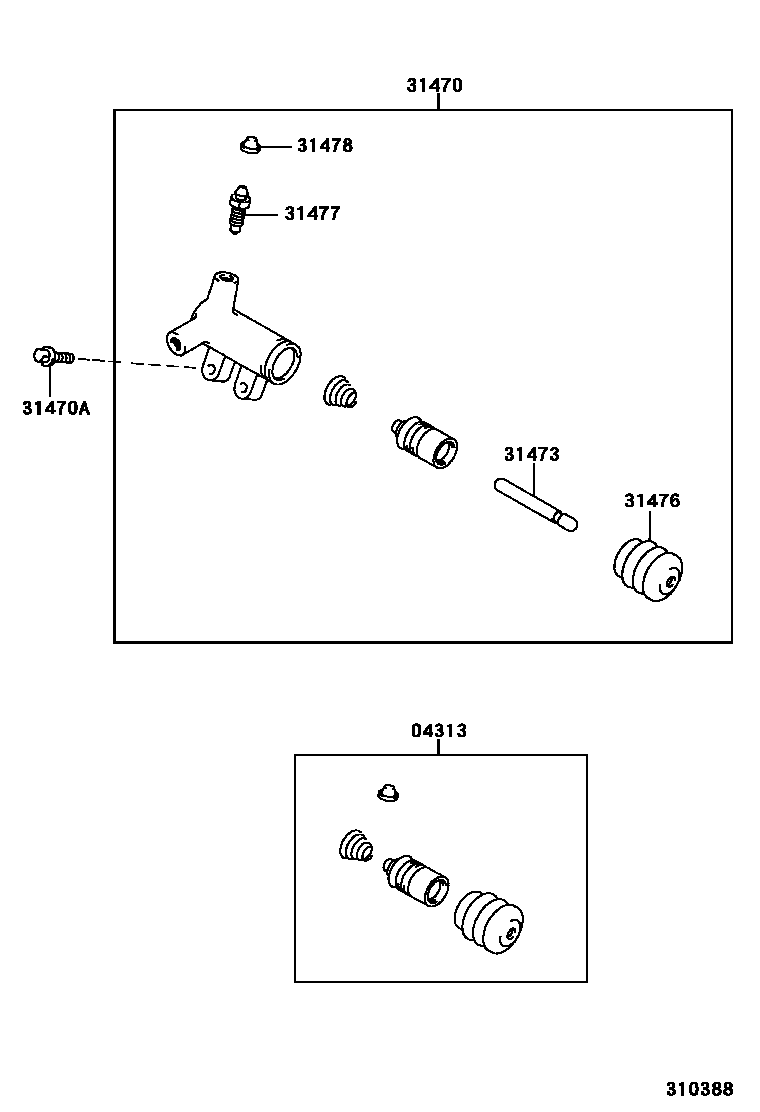

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17020iST215..5F..(E,G)199708-200209

main04313-22030iAT211..5F199708-200209

main04313-42010iST215..5F..GTT199708-200209

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12093iAT211..5F199708-200209

main31470-20210iST215..5F..(E,G)199708-200209

main31470-42020iST215..5F..GTT199708-200209

sub31470-42010

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iAT211..5F;ST215..5F..GTT199708-200209

main91611-B0825iST215..5F..(E,G)199708-200209

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iST215..5F199708-200209

main31473-32010iAT211..5F199708-200209

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAT211,ST215..5F199708-200209

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iAT211,ST215..5F199708-200209

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAT211,ST215..5F199708-200209

7 parts on this diagram · 2 diagrams in section
