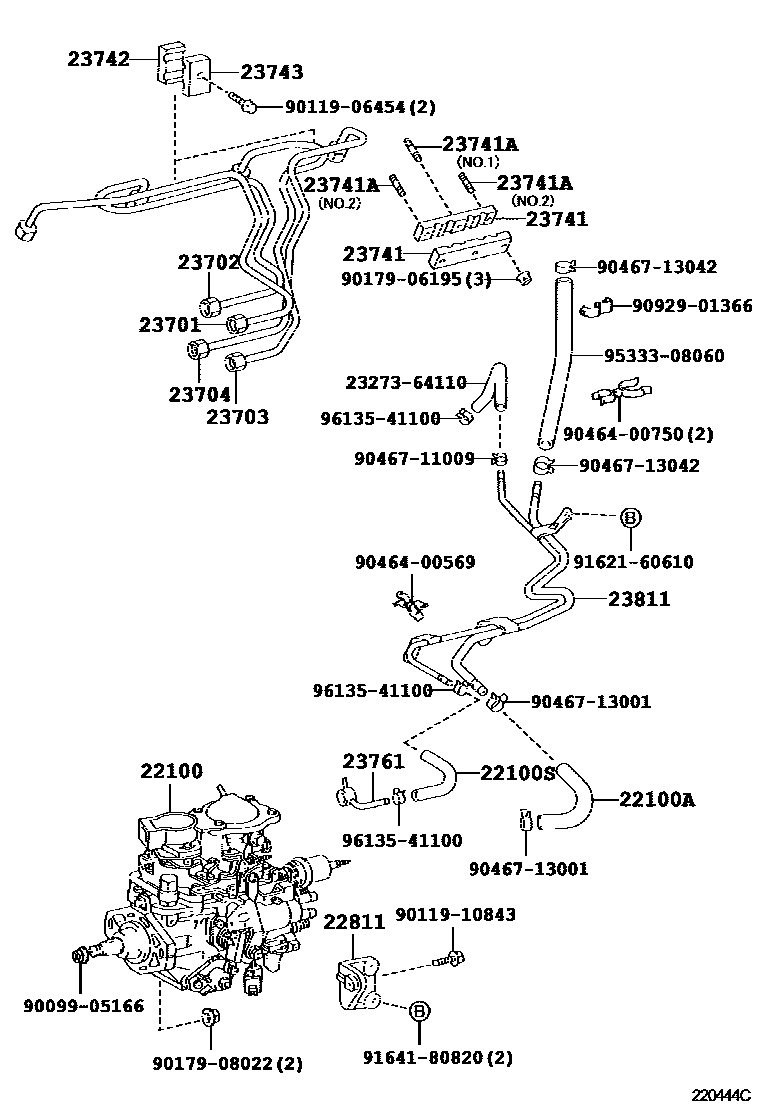

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-6E190i3CTE..CT216199708-200209

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23273-64030i3CTE..CT216199708-200209

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23274-64020i3CTE..CT216199708-200209

22811STAY, INJECTION PUMP, NO.1

main22811-64020i3CTE..CT216199708-200209

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-64110i3CTE..CT216199708-200209

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-64110i3CTE..CT216199708-200209

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-64090i3CTE..CT216199708-200209

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-64110i3CTE..CT216199708-200209

23741CLAMP, INJECTION PIPE, NO.1

main23741-64010i3CTE..CT216199708-200206

sub23741-64011

main23741-64011i3CTE..CT216200206-200209

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90116-06275i3CTE..CT216199708-200209

sub90116-06095

main92122-60622i3CTE..CT216199708-200209

23742CLAMP, INJECTION PIPE, NO.2

main23741-54010i3CTE..CT216199708-200209

23743CLAMP, INJECTION PIPE, NO.3

main23742-54010i3CTE..CT216199708-200209

23761PIPE, NOZZLE LEAKAGE, NO.1

main23764-64110i3CTE..CT216199708-200209

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-64110i3CTE..CT216199708-200209

2327364110VALVE, THERMOSTATIC VACUUM SWITCHING, NO.3

main23273-64110

9009905166

main90099-05166

9011906454

main90119-06454

9011910843

main90119-10843

9017906195

main90179-06195

9017908022

main90179-08022

9046400569

main90464-00569

9046400750

main90464-00750

9046711009

main90467-11009

9046713001

main90467-13001

9046713042

main90467-13042

9092901366

main90929-01366

9162160610

main91621-60610

9164180820

main91641-80820

9533308060

main95333-08060

9613541100

main96135-41100

30 parts on this diagram · 1 diagram in section
