IGNITION COIL & SPARK PLUG / GLOW PLUG

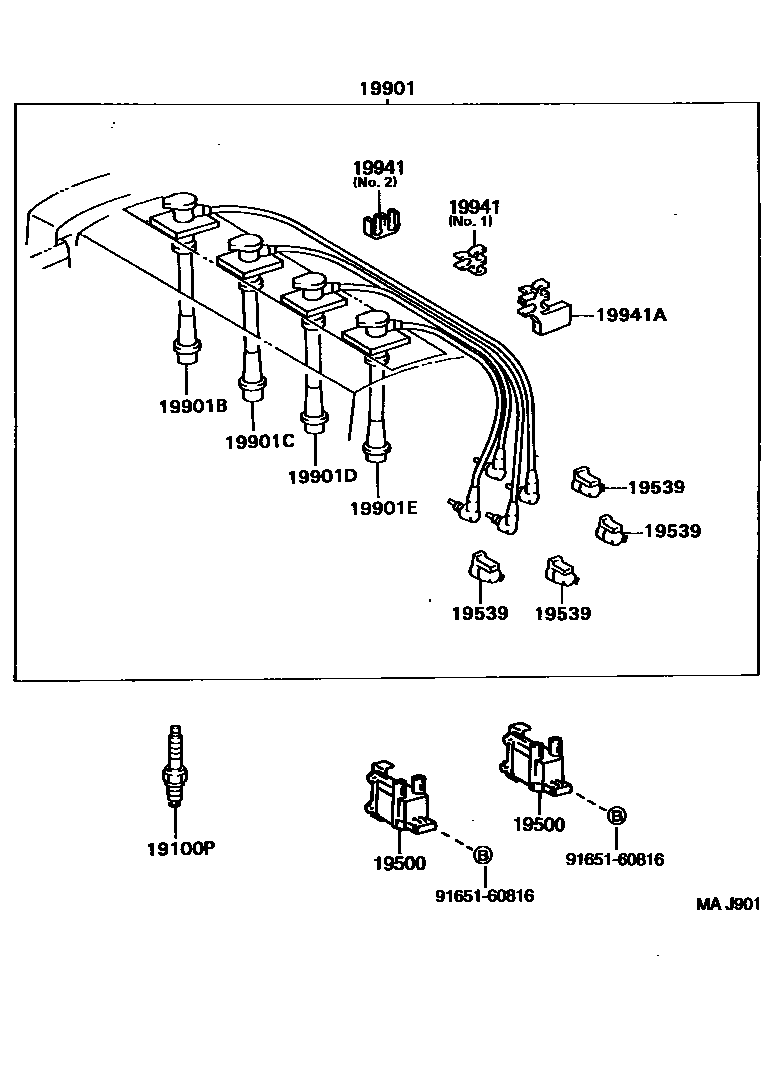

Parts diagram
19100PPLUG, SPARK
main90919-01180i199708
sub90919-01231
main90919-01181i199708
main90919-01198i199708
main90919-01200i199708
main90919-01201i199708
19500COIL ASSY, IGNITION
main19500-16020i199708
main90919-02227i199708
sub90919-02275
19539HOLDER, RESISTIVE CODE, NO.4
main19531-46010i199708
main19539-46010i199708
main19539-50010i199708
main19539-74050i199708
19901CORD SET, COIL & SPARK, W/RESISTIVE
main90919-22381i199708
main90919-22386i199708-199808
sub90919-22400
main90919-22400i199808
19901BCORD, SPARK PLUG RESISTIVE, NO.1
main90919-15466i199708-199808
sub90919-15546
main90919-15470i199708
main90919-15546i199808
19901CCORD, SPARK PLUG RESISTIVE, NO.2
main90919-15465i199708-199808
sub90919-15547
main90919-15471i199708
main90919-15547i199808
19901DCORD, SPARK PLUG RESISTIVE, NO.3
main90919-15464i199708-199808
sub90919-15548
main90919-15472i199708
main90919-15548i199808
19901ECORD, SPARK PLUG RESISTIVE, NO.4
main90919-15463i199708-199808
sub90919-15549
main90919-15473i199708
main90919-15549i199808
19941CLAMP, RESISTIVE CORD, NO.1
main90464-00561i199708
main90464-00655i199708
19941ACLAMP(FOR RESISTIVE CORD)
main90929-01273i199708
9165160816
main91651-60816

11 parts on this diagram · 4 diagrams in section
