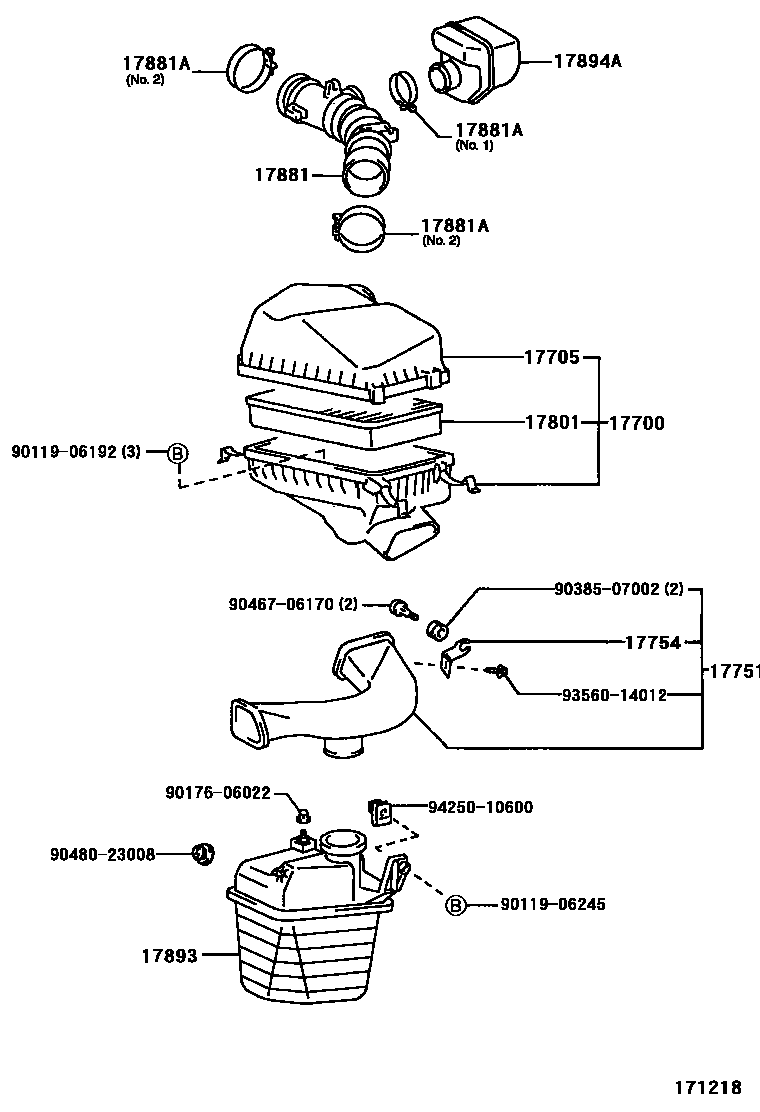

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1

17700CLEANER ASSY, AIR

main17700-1A010i7AFE..AT211199708

main17700-64350i3CTE..CT216199708

main17700-74650i3SGE..ST21#199708

main17700-74660i3SGTE..ST215199708

17705CAP SUB-ASSY, AIR CLEANER

main17705-16500i3SFE..ST21#199708

main17705-64230i3CTE..CT216199708

main17705-74470i3SGTE..ST215199708

17751INLET, AIR CLEANER, NO.1

main17751-16130i3SFE..ST21#199708

main17751-64050i3CTE..CT216199708-199909

sub17751-64051

main17751-64051i3CTE..CT216199909

main17751-74090i3SGE..ST21#199708

main17751-74100i3SGTE..ST215199708

17754STAY, AIR CLEANER INLET

main17754-16010i7AFE..AT211199708

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-64060i3CTE..CT216199708

sub17801-64070

main17801-74020i7AFE..AT211199708

main17801-74060i3SG#..ST21#199708

17881HOSE, AIR CLEANER, NO.1

main17881-16380i7AFE..AT211199708-199810

sub17881-16381

main17881-16381i7AFE..AT211199810

main17881-64290i3CTE..CT216199708

main17881-74670i3SFE..ST21#199708-200209

main17881-74860i3SGE..ST21#199708-200209

main17881-74870i3SGTE..ST215199708-200209

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-65007i3CTE..CT216199708

sub90460-65002

main96111-10480i3SGE..ST21#199708-200209

main96111-10530i7AFE..AT211199708

main96111-10530i3SFE..ST21#199708-200209

main96111-10710i7AFE..AT211199708

main96111-10830i3SGTE..ST215199708-200209

17893RESONATOR, INTAKE AIR

main17893-74440i7AFE..AT211199708

17894ARESONATOR, INTAKE AIR, NO.2

main17894-11050i3SGE..ST21#199708

main17894-16080i7AFE..AT211199708

main17894-64050i3CTE..CT216199708

main17894-74070i3SFE..ST21#199708

9011906192

main90119-06192

9011906245

main90119-06245

9017606022

main90176-06022

9038507002

main90385-07002

9046706170

main90467-06170

9048023008

main90480-23008

9356014012

main93560-14012

9425010600

main94250-10600

17 parts on this diagram · 5 diagrams in section
