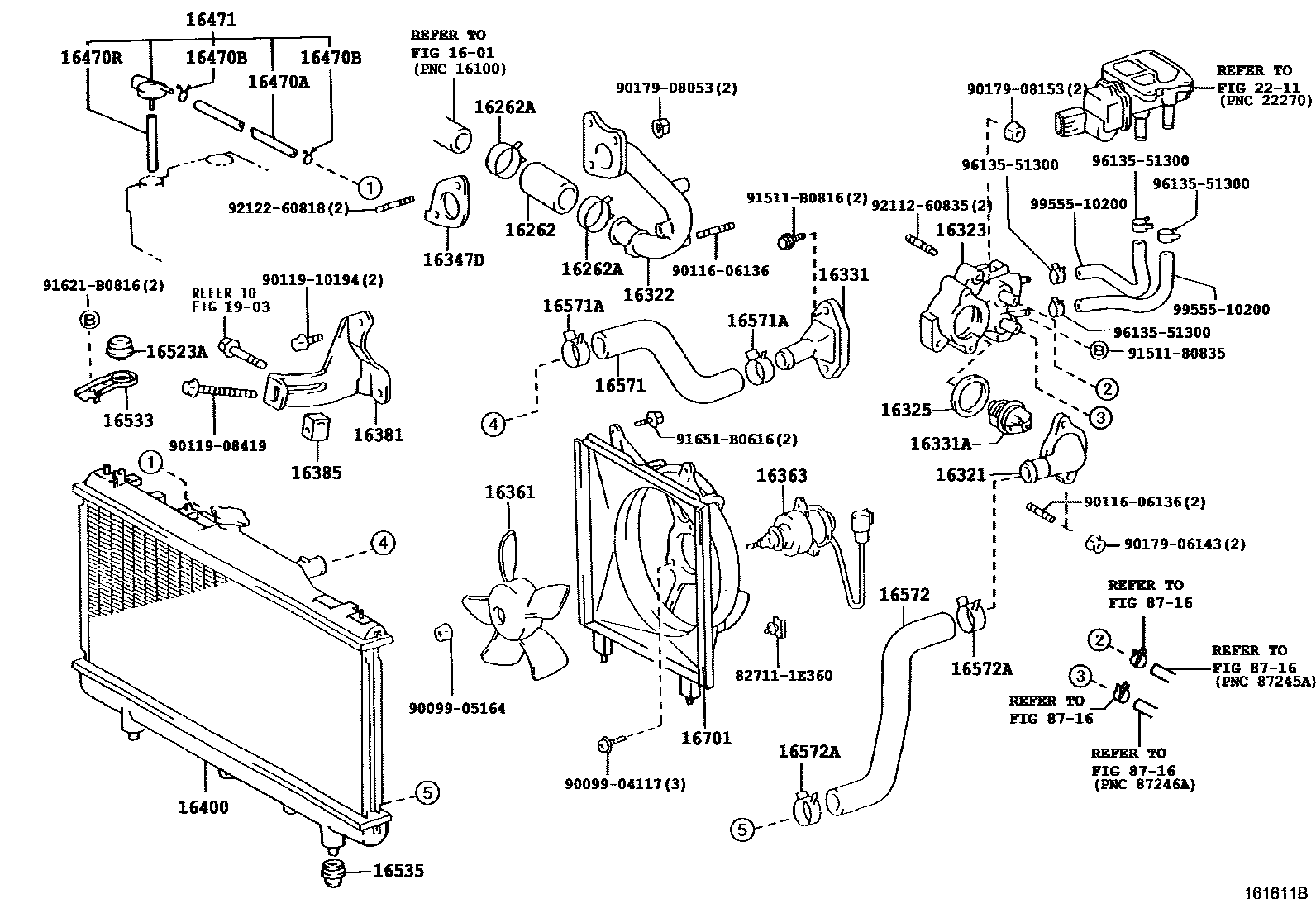

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0012 1 0013 1

1601

16262HOSE, WATER INLET

main16262-15040i7AFE..AT211199708-199802

sub16262-16030

main16262-16030i7AFE..AT211199802

16262ACLIP(FOR WATER INLET HOSE)

main90467-37002i7AFE..AT211199708-200204

sub90467-37005

main90467-37005i7AFE..AT211200204

16321INLET, WATER

main16321-15040i7AFE..AT211199708

main16321-64020i3CTE..CT216199708-200208

main16321-74050i3SFE..ST21#199708

main16321-88460i3SG#..ST21#199708

16322PIPE, WATER INLET

main16322-16060i7AFE..AT211199708

16323HOUSING, WATER INLET

main16323-15180i7AFE..AT211199708

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63011i3CTE..CT216199708-200208

16331OUTLET, WATER

main16304-88560i3SGE..ST21#199708

main16304-88580i3SGTE..ST215199708

main16331-15080i7AFE..AT211199708

main16331-74220i3SFE..ST21#199708

main16331-74260i3SFE..ST21#199708

16331ATHERMOSTAT

main90916-03046i3CTE..CT216199708-200209

main90916-03090i3SFE..ST21#199708

main90916-03100i3SG#..ST21#199708

main90916-03109i7AFE..AT211199708-199803

sub90916-03115

main90916-03115i7AFE..AT211199803

16347DGASKET, WATER BY-PASS

main16347-15010i7AFE..AT211199708

16361FAN

main16361-64060i3SGTE..ST215199708

main16361-64070i3CTE..CT216199708

main16361-74050i7AFE..AT211199708

main16361-74060i3SFE..ST210;3SFE..ST215..5F199708

main16361-74110i3SGE..ST21#;3SFE..ST215..4FC199708

16363MOTOR, COOLING FAN

main16363-16050i7AFE..AT211199708

main16363-64130i3CTE..CT216199708

main16363-64140i3SGTE..ST215199708

main16363-74260i3SFE..ST210;3SFE..ST215..5F199708

main16363-74270i3SGE..ST21#;3SFE..ST215..4FC199708

16381BAR, FAN BELT ADJUSTING

main16381-15080i7AFE..AT211199708

main16381-64160i3CTE..CT216199708-200209

16385SLIDER, FAN BELT ADJUSTING

main16385-15020i7AFE..AT211199708

sub16385-15030

main16385-64011i3CTE..CT216199708-200209

16400RADIATOR ASSY

main16400-16571i7AFE..AT211..5F199708-199710

sub16400-16780

main16400-16581i7AFE..AT211..4FC199708-199710

sub16400-16800

main16400-16780i7AFE..AT211..5F199710

main16400-16800i7AFE..AT211..4FC199710

main16400-6A200i3CTE..CT216199708

main16400-7A191i3SFE..ST215..5F199708-199712

sub16400-7A580

main16400-7A430i3SFE..ST21#..4FC199708

main16400-7A440i3SGE..ST215199708-199808

main16400-7A450i3SGTE..ST215..5F199708

main16400-7A460i3SGTE..ST215..4FC199711

main16400-7A580i3SFE..ST215..5F199712

main16400-7A690i3SGE..ST21#199808

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i3CTE..CT216199708

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i7AFE..AT211199708

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i3CTE..CT216199708

16471CAP SUB-ASSY, RESERVE TANK

main16405-16130i7AFE..AT211199708

16523ACUSHION, RADIATOR SUPPORT

main16523-74010i3SFE,3SG#..ST21#199708

16533SUPPORT, RADIATOR, UPPER

main16533-74240i7AFE..AT211199708

16535SUPPORT, RADIATOR, LOWER

main16535-64120i3CTE..CT216199708

main16535-74030i7AFE..AT211199708

16571HOSE, RADIATOR, INLET

main16571-16230i7AFE..AT211199708

main16571-64260i3CTE..CT216199708

main16571-74330i3SFE..ST21#199708

main16571-74430i3SGE..ST21#199708

main16571-74440i3SGTE..ST215199708

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34003i3SFE,3SG#..ST21#199708

sub90467-34004

main90467-37005i3CTE..CT216200204

main90467-37006i3CTE..CT216199708-200204

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-16190i7AFE..AT211199708

main16572-64270i3CTE..CT216199708

main16572-74270i3SGTE..ST215199708

main16572-74300i3SFE,3SGE..ST21#199708

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-34003i3SFE,3SG#..ST21#199708

sub90467-34004

main90467-37005i3CTE..CT216200204

main90467-37006i3CTE..CT216199708-200204

sub90467-37005

16701SHROUD SUB-ASSY, FAN

main16711-16261i7AFE..AT211199708

main16711-16291i3SFE..ST210;3SFE..ST215..5F199708

main16711-16301i3SGE..ST21#;3SFE..ST215..4FC199708

main16711-74670i3SGTE..ST215199708

main16712-64200i3CTE..CT216199708

1903

2211

8716

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9009904117

main90099-04117

9009905164

main90099-05164

9011606136

main90116-06136

9011908419

main90119-08419

9011910194

main90119-10194

9017906143

main90179-06143

9017908053

main90179-08053

9017908153

main90179-08153

9151180835

main91511-80835

91511B0816

main91511-B0816

91621B0816

main91621-B0816

91651B0616

main91651-B0616

9211260835

main92112-60835

9212260818

main92122-60818

9613551300

main96135-51300

9955510200

main99555-10200

47 parts on this diagram · 10 diagrams in section
