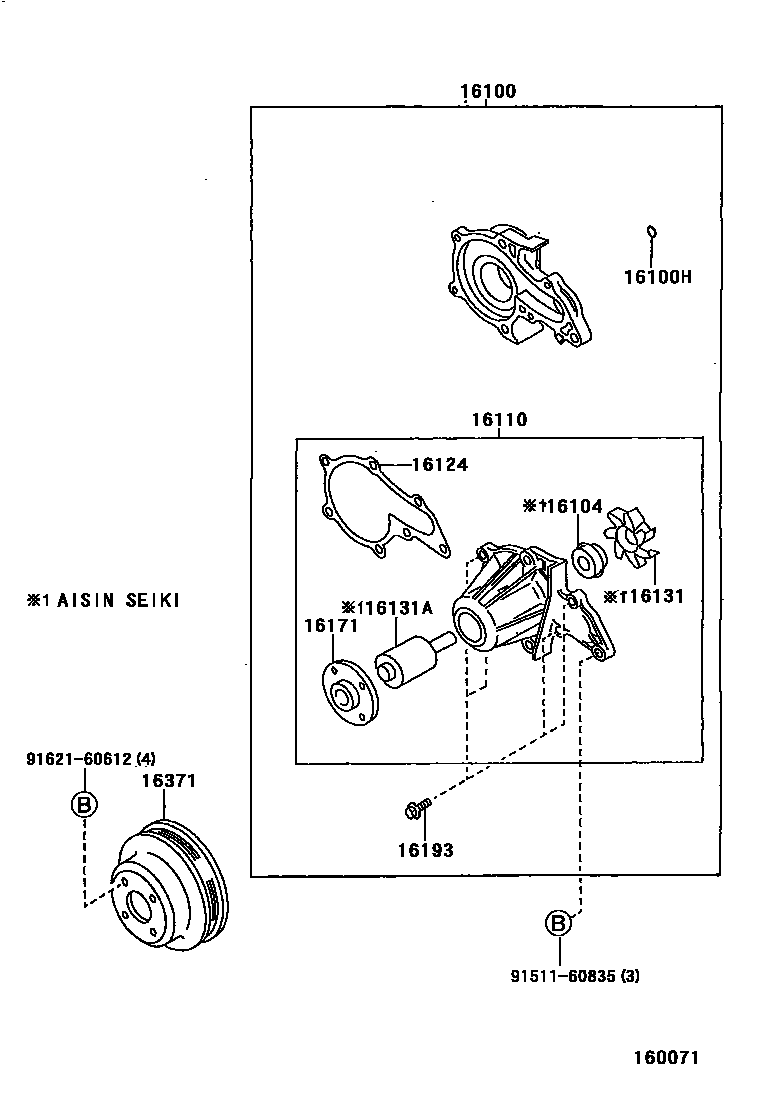

WATER PUMP

0001 1 0002 1 0003 1 0004 1

16100PUMP ASSY, ENGINE WATER

main16100-19305i7AFE..AT211199708

main16100-69296i3CTE..CT216199708-199811

sub16100-69425

main16100-69298i3CTE..CT216199811-200012

sub16100-69435

main16100-69435i3CTE..CT216200012-200209

main16100-79185i3SFE..ST21#199708

sub16100-79186

main16100-79225i3SG#..ST21#199708

sub16100-79226

16100HRING, O(FOR WATER PUMP)

main90301-37005i3SFE,3SG#..ST21#199708

main96761-24035i7AFE..AT211199708

16104SEAL SET, WATER PUMP

main16104-46060i7AFE..AT211199708

16110PUMP ASSY, WATER, W/O COUPLING

main16110-19176i7AFE..AT211199708

main16110-19185i7AFE..AT211199708

16124GASKET, WATER PUMP COVER

main16124-15110i7AFE..AT211199708

main16124-16060i7AFE..AT211199708

main16124-88460i3SFE,3SG#..ST21#199708

16131ROTOR, WATER PUMP

main16131-16090i7AFE..AT211199708

16131ABEARING, WATER PUMP

main90029-36846i7AFE..AT211199708

16171SEAT, WATER PUMP PULLEY

main16171-10012i7AFE..AT211199708

main16171-15071i7AFE..AT211199708

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011i7AFE..AT211199708

main16193-15100i7AFE..AT211199708

main90029-01500i3SFE,3SG#..ST21#199708

16371PULLEY, FAN

main16371-02030i7AFE..AT211199708

main16371-15071i7AFE..AT211199708

9151160835

main91511-60835

9162160612

main91621-60612

12 parts on this diagram · 4 diagrams in section
